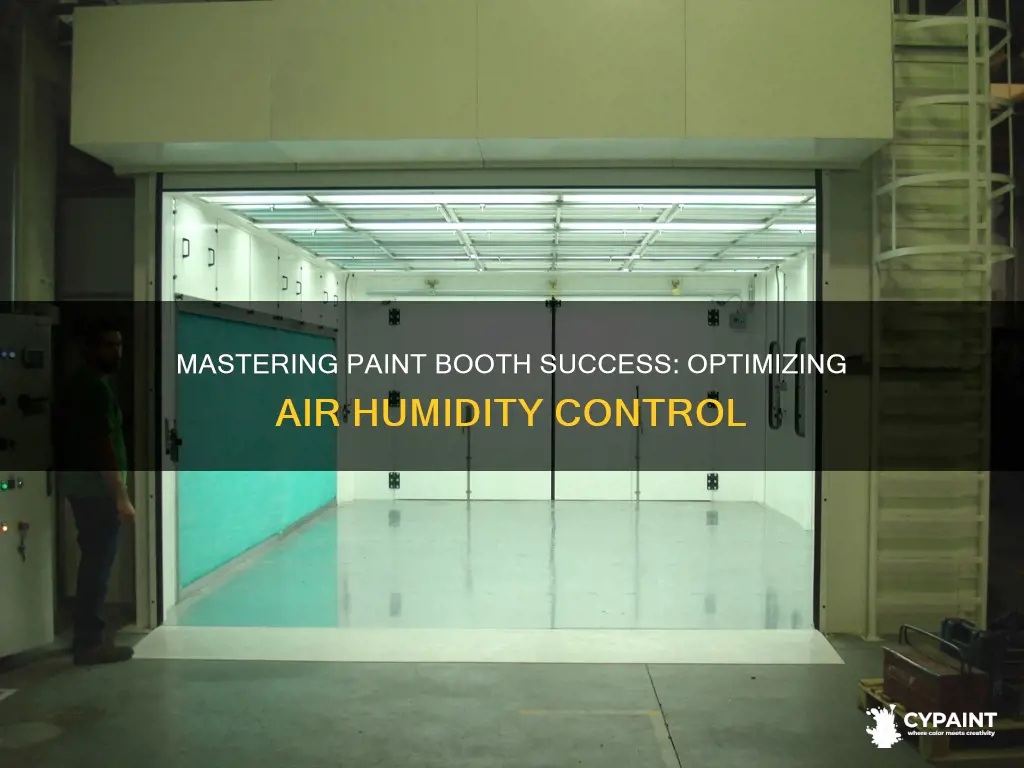

Mastering Paint Booth Success: Optimizing Air Humidity Control

Optimizing air humidity control in paint booths is essential for achieving high-quality painting results and maintaining safety, worker health, and productivity. Both high and low humidity levels can negatively impact the painting process and the final product. Excessive humidity can cause adhesion and drying issues, resulting in surface defects and irregular finishes. Conversely, low humidity can lead to static electricity and dust accumulation, compromising the coating's quality. Therefore, accurate humidity control is crucial, and this can be achieved through various methods, including regular monitoring, device calibration, proper insulation, controlled ventilation, and preventive maintenance. Advanced technologies, such as automated solutions offered by companies like USI Italia, can further enhance efficiency and safety in the painting process.

The impact of humidity on paint

Humidity is often an overlooked factor when it comes to painting, but it can significantly impact the finished product. High humidity can cause adhesion issues, affecting how well paint adheres to the wall surface. This is particularly problematic when painting wood surfaces, as the moisture in the wood can cause the paint to bubble and peel. In addition, high humidity can lead to surfactant leaching, resulting in brown or white spots on the paint surface.

Conversely, low humidity can also cause problems. In dry climates, the air will absorb small particles of moisture from the paint, muting the finish and colour. Wall surfaces in dry climates are more porous and can soak up the paint, requiring multiple coats and potentially leading to cracks and peels over time.

The optimal humidity for painting is between 40% and 70%. At this range, paint will dry properly, and you can avoid issues such as condensation, which can damage the paint surface. Temperature also plays a crucial role in the painting process. For oil-based paints, the ideal temperature is between 40° and 90° Fahrenheit, while for latex-based paints, the best range is between 50° and 85° Fahrenheit. Extreme temperatures can cause the paint to dry too quickly, leading to bumps, blisters, cracks, and discolouration.

To optimize humidity control in a paint booth, regular monitoring of humidity levels is essential. This can be achieved through the use of reliable sensors and accurately calibrated control devices. Proper insulation of the paint booth is also important to prevent excessive humidity fluctuations. Controlled ventilation systems can help regulate airflow and humidity, avoiding condensation and maintaining the desired humidity levels.

Best practices for humidity control

Humidity control is a critical factor in achieving high-quality results in painting operations. Both high and low humidity levels can negatively impact the painting process and the final product. Here are some best practices to optimize humidity control in paint booths:

Regular Monitoring: Consistently monitor humidity levels using reliable sensors to detect any variations. Regular monitoring helps to identify potential issues and allows for prompt corrective actions. This step is crucial as humidity can affect various aspects of the painting process, including adhesion, drying times, paint viscosity, and solvent evaporation rates.

Device Calibration: Ensure that humidity control devices, such as sensors and controls, are accurately calibrated. Calibration guarantees the precision of readings and the effectiveness of controls. Proper calibration ensures that any adjustments made to the humidity levels are accurate and align with the desired parameters.

Proper Insulation: Maintain proper insulation in the paint booth to minimize the impact of the surrounding environment. Insulation helps prevent excessive humidity fluctuations caused by external conditions, ensuring that the booth maintains a stable humidity level.

Controlled Ventilation: Utilize controlled ventilation systems to regulate airflow and humidity inside the booth. Ventilation systems help prevent condensation and maintain the desired humidity levels. They also contribute to the overall air quality in the paint booth, which is essential for the health and safety of workers.

Preventive Maintenance: Regularly maintain humidity control systems to ensure their proper functioning over time. This includes routine inspections, equipment repairs, and replacements as needed. Preventive maintenance helps to mitigate the risk of unexpected breakdowns and ensures the accuracy and reliability of the humidity control systems.

Advanced Technologies: Invest in advanced technologies for automatic humidity management. Modern paint booths offer state-of-the-art features, such as humidity sensors, automatic controls, and integrated Industry 4.0 standards. These technologies enhance efficiency, safety, and the overall painting process.

By following these best practices, paint booth operators can achieve precise humidity control, leading to improved paint quality, enhanced safety, better worker health, and increased productivity.

The role of temperature

Temperature plays a critical role in paint booths, influencing the drying and curing times of paint. The ideal temperature setting depends on various factors, including the type of coating, the size and nature of the object being painted, and the environmental humidity.

The temperature within a paint booth must be maintained at a minimum of 55 degrees Fahrenheit when using automotive paint with a catalyst for the paint to dry properly. This is because the catalyst, which facilitates the curing process, becomes dormant at temperatures below 55 degrees, resulting in improper crosslinking of polymer chains. Therefore, it is crucial to ensure that the paint booth temperature remains above this threshold to guarantee effective curing.

The temperature rule of thumb in the automotive industry dictates that for every 15 degrees above 70 degrees Fahrenheit, the curing process accelerates by approximately half, assuming 50% relative humidity. Conversely, for every 15 degrees below 70 degrees, the curing time doubles. This relationship between temperature and curing rate highlights the significance of temperature control in optimizing the painting process and enhancing productivity.

Additionally, the ambient temperature outside the paint booth also impacts the ideal temperature setting. When using solvent-based paint, it is essential not to exceed the surrounding outside temperature. For example, if the outside temperature is 80 degrees Fahrenheit, the paint booth's internal temperature should be set at 80 degrees as well. Attempting to dry solvent-based paint too quickly can result in flaws in the finish, leading to issues like brittleness and cracks.

The size and nature of the object being painted also come into play. Larger objects will take longer to dry, and the temperature setting should be adjusted accordingly. Similarly, the type of coating used significantly affects drying and curing times, as no two coatings are identical, even if they serve the same purpose. Therefore, it is recommended to refer to the paint manufacturer's instructions for precise temperature guidelines to ensure optimal curing and drying for their specific product.

Advanced technologies for humidity management

Advanced technologies play a pivotal role in humidity management within paint booths, offering greater precision, efficiency, and safety. Here are some key aspects of advanced technologies for humidity management:

Humidity Sensors and Controls

State-of-the-art paint booths, such as those offered by USI Italia, incorporate humidity sensors and automatic controls. These sensors accurately monitor humidity levels, enabling prompt detection of any deviations from the optimal range. The automatic controls then adjust the humidity accordingly, ensuring a consistent and optimal environment for the painting process. This technology is particularly useful in maintaining the correct humidity, which is crucial for achieving high-quality finishes and avoiding issues like adhesion problems, drying issues, and condensation.

Advanced Control Panels

Modern paint booths feature advanced control panels that provide unparalleled climate control. These panels allow operators to precisely manage temperature, humidity, and airflow, adapting in real-time to any operational needs. With features like remote diagnostics and data tracking, these control panels streamline the painting process and offer valuable insights for further optimizations. This level of control helps to enhance efficiency and ensures the booth operates at peak performance.

Custom Designs

Paint booth manufacturers now offer custom-designed industrial spray booths tailored to meet unique space requirements and workflows. This customization ensures optimal space utilization and enhances process efficiency by seamlessly integrating into existing processes. Customization also allows for specific humidity requirements, ensuring the right conditions are met for each unique painting process.

Advanced Filtration Systems

Upgrading to advanced filtration systems in paint booths is crucial for maintaining a clean environment and ensuring high-quality paint finishes. These systems capture a wide range of particulate matter and organic compounds, improving air quality and reducing contamination. By investing in state-of-the-art filtration technology, operations can enhance paint quality, reduce the need for reworks, and comply with stringent regulatory and safety standards.

Additional Features

Other advanced technologies being incorporated into paint booths include LED lighting systems, electrostatic atomization, and modern designs. These features collectively contribute to improved lighting conditions, enhanced paint application processes, and overall efficiency gains in the painting operations.

By embracing these advanced technologies, paint booth operators can achieve better humidity management, leading to improved paint quality, increased efficiency, and reduced costs associated with repairs and additional maintenance.

Maintaining humidity control systems

Regular Monitoring

Consistently monitor humidity levels in the painting environment using reliable sensors. Regular checks help detect any variations in humidity levels and allow for prompt intervention. This is an important step in maintaining the correct humidity, which is crucial as excessive humidity can cause adhesion and drying issues, resulting in surface defects and irregular finishes. Conversely, low humidity can lead to static electricity and dust accumulation, compromising the quality of the paint job.

Device Calibration

Ensure that humidity control devices are accurately calibrated. Calibration guarantees the precision of readings and controls, enabling effective management of humidity levels.

Proper Insulation

Properly insulate the paint booth to prevent excessive humidity fluctuations due to the surrounding environment. This helps maintain a stable humidity level within the booth.

Controlled Ventilation

Utilise controlled ventilation systems to regulate airflow and humidity inside the booth. Ventilation systems help prevent condensation and maintain the desired humidity level.

Preventive Maintenance

Regularly maintain humidity control systems to ensure their proper functioning over time. This includes inspecting equipment, repairing or replacing faulty parts, and keeping the system well-maintained to optimise its performance.

Advanced Technologies

Consider investing in advanced technologies for automatic humidity management. These technologies can include humidity sensors, automatic controls, and integrated Industry 4.0 standards. By utilising these advanced solutions, you can further enhance efficiency, safety, and satisfaction in the painting process.
