Painting your car engine is a great way to make your car stand out and give it a unique look. It's also a good opportunity to get more familiar with your engine and its parts. While it's not as challenging or costly as painting an entire car, it still requires careful planning and preparation. You'll need to consider the type of paint to use, how many coats to apply, and which engine parts to mask off or remove before painting. Additionally, cleaning the engine and ensuring it's free of grease and old paint is crucial for achieving a smooth and durable finish.
| Characteristics | Values |
|---|---|
| Ease of painting | Easier than painting sheet metal, can be done at home, and is inexpensive |
| Preparation | Clean the engine with hot soapy water, use "frog" tape to cover areas that should not be painted, and lay down a coat of primer |
| Paint | Use high-temperature engine paint, apply 3-4 coats, allowing drying time between coats |
| Painting tools | Spray cans, brushes |
| Paint colours | Flat black, factory Barbados Blue, dark blue |
| Other | Painting the engine is a good way to make your car unique or stand out |
Explore related products
$11.98 $12.99
What You'll Learn
- Painting an engine block requires precision to protect sensitive areas from paint and overspray
- Use a high-temp primer and high-temp engine paint for a long-lasting finish
- Clean the engine with hot soapy water and baking soda before painting
- Use green frog tape to mask off areas you don't want to paint
- Painting an engine is a great way to make your car unique and improve its appearance
Painting an engine block requires precision to protect sensitive areas from paint and overspray

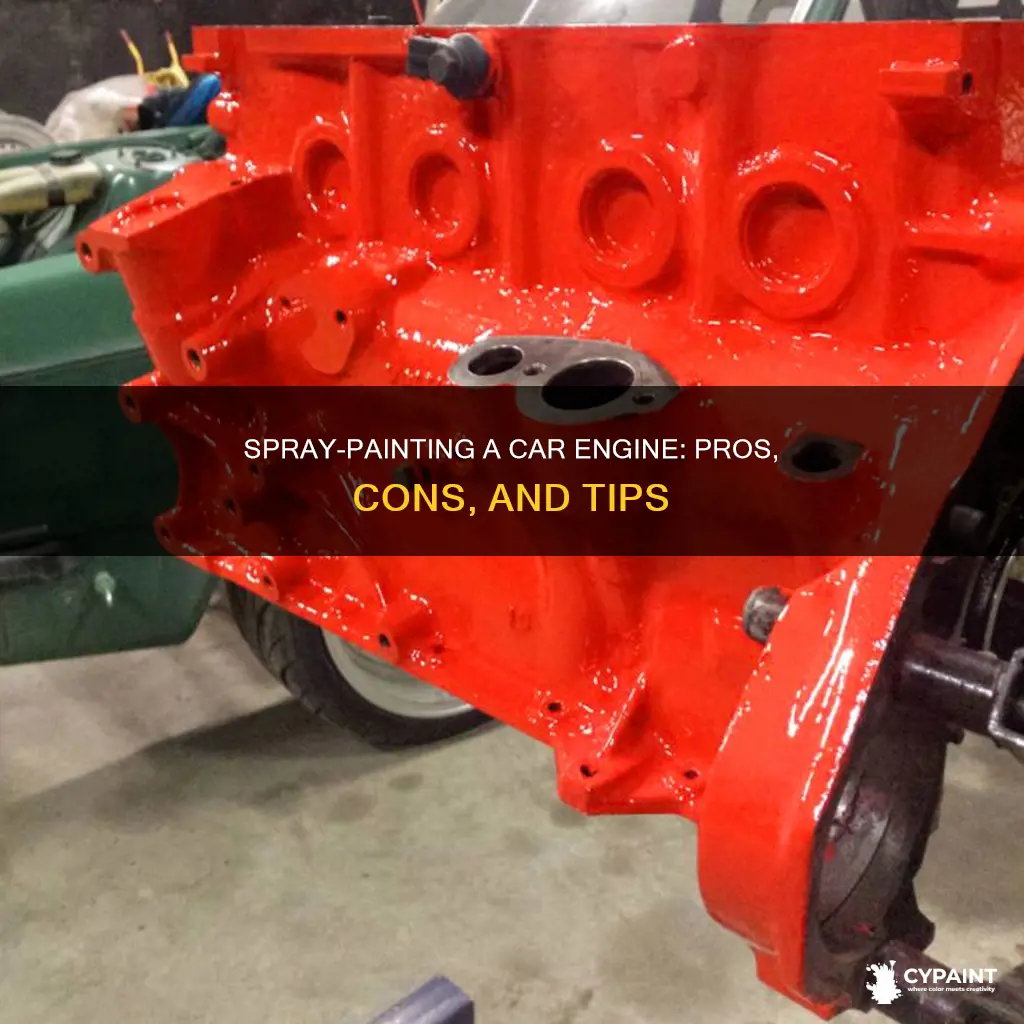

Painting an engine block is a meticulous process that requires precision and attention to detail. It is not as simple as spraying paint on the engine. There are several precision-machined surfaces on engine blocks that need to be protected from paint and overspray. These include sealing surfaces for gaskets, fastener holes, motor mounts, and other sensitive areas.
Before painting the engine, it is important to prepare the engine block by thoroughly cleaning it to remove any grease, oil, or residue. A degreaser and a wire brush can be used to scrub away stubborn grime. After cleaning, the engine block should be rinsed thoroughly and allowed to dry completely. Once the engine block is clean and dry, it is time to mask off any areas that should not be painted. This includes openings, brackets, cylinder heads, pistons, bolt holes, engine internals, and surfaces where gaskets will seat. Use 2-inch-wide green masking tape, also known as "frog" tape, to cover these areas. The tape provides clean edge lines and ensures that the paint does not get on the covered areas.
After masking, the engine block should be sanded to create a rough texture, which promotes better adhesion of the primer and paint. Fine-grit sandpaper or a sanding block can be used to smooth out any imperfections and create an even surface. The dust created during sanding should be wiped away with a clean, lint-free cloth. Once the surface is prepared, a high-quality automotive primer designed for engine blocks and high temperatures should be applied. The primer serves as a base coat, enhances the adhesion of the paint, and provides protection against corrosion. It is important to follow the manufacturer's instructions for mixing and applying the primer and to allow it to dry completely before moving on to the next step.
Finally, the engine block can be painted. It is important to select an engine enamel paint specifically designed for high-temperature applications. Apply several thin coats of paint rather than one thick coat to prevent run-offs and ensure an even paint job. Hold the spray can 12 to 18 inches from the surface and dispense the paint while moving the can gradually to avoid creating drips and runs. After the last paint coat, an optional clear coat can be applied for added protection and a glossy finish.
Unlocking Sticker Creativity in Microsoft 3D Paint
You may want to see also
Explore related products
Use a high-temp primer and high-temp engine paint for a long-lasting finish
Painting an engine is a straightforward process that can be done at home and does not require a lot of money. However, it is important to pay attention to the details to achieve a good result.
One crucial aspect of ensuring a long-lasting finish is using the right type of paint and primer. High-temperature engine paint and a high-temperature engine primer are specifically designed to withstand high heat and will last the life of the engine.
XTC Primer and XTC Paint from KBS Coatings are a good example of a high-temperature primer and paint system. This system provides optimal performance, reducing the risk of rust, peeling, bubbling, and premature failure. It is easy to apply, compatible with multiple surfaces, and can be left as a finish coat. Additionally, it offers a wide range of colours, allowing for customisation.
Another option for high-temperature primer is SEM brand self-etching primer, which adheres well to aluminium. For high-temperature engine paint, VHT or CMT brand high-temp engine enamels are recommended.
When painting an engine, it is important to thoroughly clean and mask off the areas you do not want to paint. Green "frog" tape is commonly used for masking as it produces clean edge lines. It is also important to ensure that the surfaces are dry to achieve maximum adhesion. Additionally, removing sharp edges and leftover material from the casting process will help the paint stick and look better.
Fill Backgrounds in MS Paint: Patterns and How-To
You may want to see also
Explore related products
![12 Oz Gloss Black Engine Enamel Spray Paint 248932 [Set of 6]](https://m.media-amazon.com/images/I/71GZcpNLDyL._AC_UL320_.jpg)
Clean the engine with hot soapy water and baking soda before painting
Painting an engine is a great way to make your engine bay look fantastic without spending a lot of money. It is also a convenient opportunity to replace gaskets and spark plugs. However, there are two problems with painting an engine: adhesion and heat. The first problem, adhesion, can be solved with hot-tanking, scrubbing, or soda blasting.
If you are painting an assembled engine, the best preparation method is to use hot soapy water and baking soda. Take the engine outside and set up the blaster. For this type of cleaning, all you need is soda. The blaster uses a mechanical dead-man valve to shut off the flow of media. Baking soda's water solubility gives it sustainability advantages. It can dissolve and separate from contaminants in a water solution. By dissolving spent soda and filtering out contaminants, the liquid solution can be discharged into open waterways or sewage treatment systems.
Before painting, rinse with hot water. Do not spray too hard, and do not get water in your engine. Let the detergent emulsify all the dirt with the water so that it carries it off. Dry everything with paper towels. If you have a spray gun, fill the cup with lacquer thinner, adjust the fan knob on the gun to the narrowest pattern, and use this solvent pressure washer to blast every bit of oil off, starting at the top and working down. Follow with more thinner, paper towels, and a brush. Let it dry.
Soda blasting leaves a residue on the metal, which must be neutralized. Skipping this step will cause the paint to fall off. Use a vinegar/water wash to clean the prepped engine. You will know it is working when you see bubbles. Then, tape up the engine so that only the areas you want to be painted are exposed. Cover all the areas you don't want to be painted with 2-inch-wide green masking tape. Most gearheads call this tape "frog" tape.
Finally, lay down one thick coat of high-temp primer, followed by two coats of high-temp engine paint. Don't skip the primer! You can use Eastwood Ceramic Engine Paint, which you can apply with a brush. Pull the plug wires off the distributor, and with the right set of brushes, you can have a nice-looking engine in an afternoon.
Mastering Lights and Shading in Ibis Paint
You may want to see also
Explore related products
Use green frog tape to mask off areas you don't want to paint
Painting an engine block is a great way to make your engine bay look fantastic without spending a lot of money. It is also a lot easier than painting your car's sheet metal and can be done at home.
When painting an engine, it is important to protect certain precision-machined surfaces from paint and overspray. These include sealing surfaces for gaskets, fastener holes, motor mounts, and other sensitive areas. To do this, you can use green "frog" tape to mask off all areas of the block you don't want to be painted.
Green Frog Tape is a multi-surface painter's tape that can be used on a variety of different surfaces and applications. It is treated with PaintBlock Technology, which seals the tape edges and prevents paint bleed, giving you sharp paint lines. It is also safe on most surfaces and can be removed easily without leaving any residue.
To use green frog tape effectively, start by wiping down the surface you will be masking off. Then, use a putty knife to press the tape down and ensure good contact and adhesion to the surface. Finally, wipe over the edge of the tape with a slightly damp rag to activate the paint-blocking chemical and create a strong seal.
When painting an engine, remember to use high-temperature engine paint and don't skip the primer! Pull the plug wires off the distributor and use a brush or a spray can to apply the paint. With the right tools and preparation, you can achieve a really nice-looking engine.
Airbrushing 101: Mastering the Art of Fading with an Airbrush Gun
You may want to see also
Explore related products
$53.99 $56.85
Painting an engine is a great way to make your car unique and improve its appearance
Before painting, the engine should be cleaned thoroughly. This can be done with hot soapy water, or with a high-pressure sprayer, degreasers, or a baking soda blast. It is important to tape up the parts of the engine that you do not want to be painted, such as the gasket surfaces and hose areas. You can use "frog" tape, which is green, to mask off these areas.
Once the engine is cleaned and taped, you can apply the paint. It is recommended to use a paint that is sprayed with a paint gun, such as traditional automotive paint, rather than a rattle can. You should start by applying a thick coat of high-temperature primer, followed by two coats of high-temperature engine paint. There are also high-temperature ceramic engine paints available that can be applied with a brush.
Painting your engine can make your car stand out and show your personality. It can be a fun and rewarding project, but it is important to be careful and take your time to ensure the best results.
Finishing Touches: Backing Your Framed Art
You may want to see also
Frequently asked questions
Yes, it is possible to paint your car engine without removing it. However, it can be challenging to tape off the engine and clean it while it's still inside the compartment.
If your engine has old paint on it, you will need to clean it thoroughly. Baking soda is a great option for engine cleaning as it is safe to get inside the engine. You can also use hot soapy water and a lot of elbow grease.
Use high-temperature engine paint, which can be applied with a brush or sprayed on. You can also use a rattle can, but be aware that the paint may crack, flake, or fade within a few weeks.
Use green "frog" tape to mask off areas you don't want to paint, such as the fire deck, pan rails, timing cover, motor mount holes, and lifter bores. Also, remove any wires or hoses from the block.
Apply one thick coat of high-temperature primer, followed by two coats of high-temperature engine paint. Allow each coat to dry before applying the next.
