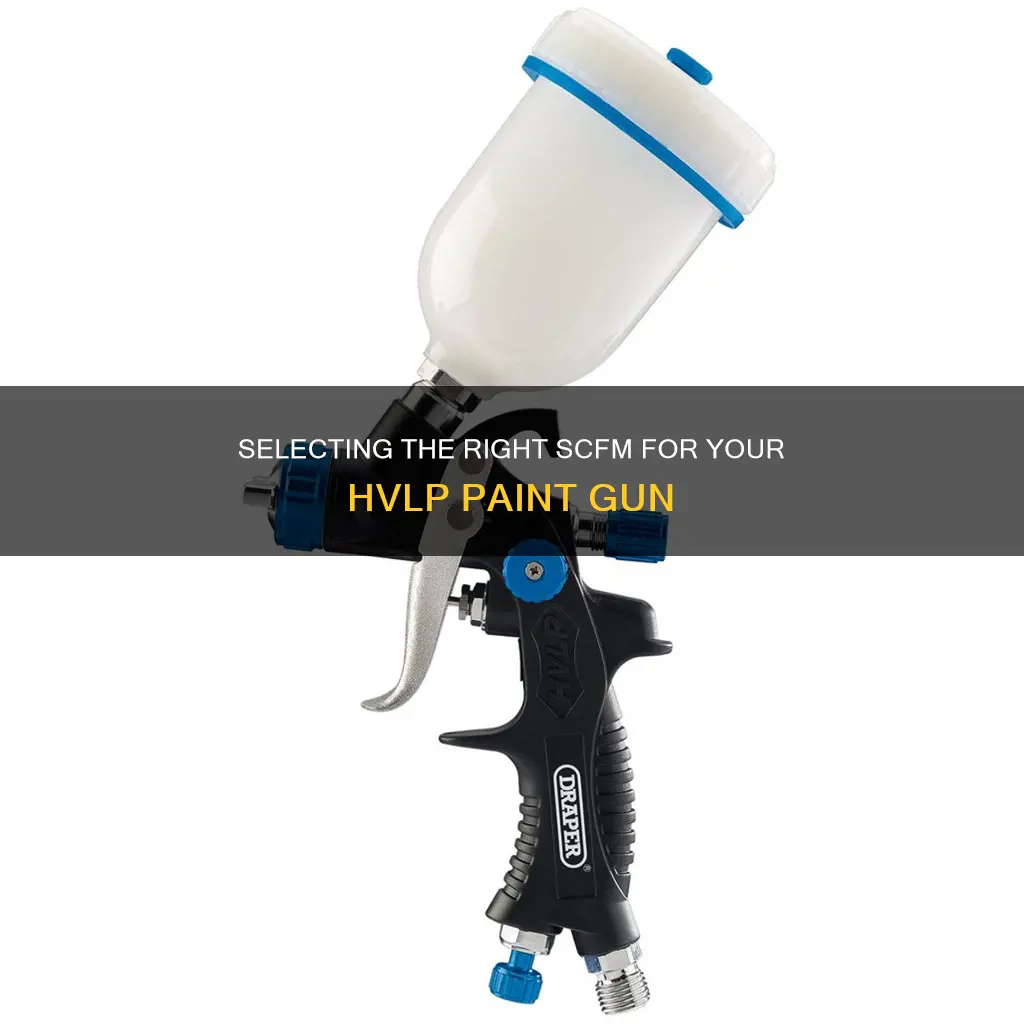

HVLP spray guns, or High Volume, Low Pressure spray guns, are a popular choice for painting due to their superior precision, efficiency, and smoothness compared to manual painting methods. When using an HVLP spray gun, it is crucial to select an air compressor with sufficient capacity to ensure optimal atomization and continuous pressure. The volume of air delivered per minute, measured in CFM (cubic feet per minute), is a critical factor in determining the performance of the spray gun. While the specific CFM requirement varies depending on the gun and application, a range of 5-12 CFM is commonly recommended for HVLP spray guns, with some sources suggesting a minimum of 16-20 CFM for optimal results.
| Characteristics | Values |
|---|---|
| CFM for HVLP spray guns | 9-12 CFM at 30 PSI on average; 5 CFM is standard for home use compressors; 1 HP compressor with an electric motor produces 4-5 CFM at 100 PSI; 2 HP/30L compressor provides 5.4 CFM; 2.5 HP/40L compressor provides 6.1 CFM; 13 CFM at 30 PSI for large HVLP guns; 8 CFM at 30 PSI for mini-HVLP guns |
| PSI for HVLP spray guns | Typically a maximum of 25-30 PSI, with some applications requiring up to 40 PSI for higher atomization; most HVLP guns require 25-30 PSI; spray guns have a min/max PSI rating |
| Other specifications | HVLP guns require a higher volume of air at a lower pressure compared to conventional spray guns; larger fluid nozzles provide a greater volume of paint; atomization pressure for HVLP guns is typically 0.7 bar; HVLP guns provide greater transfer efficiency than other forms of spray coating |
Explore related products
What You'll Learn
HVLP guns require a higher volume of air than conventional spray guns
HVLP spray guns require a higher volume of air than conventional spray guns. The acronym HVLP stands for High Volume Low Pressure, which means that the spray gun operates with a high volume of air at a low air pressure. This results in a soft spray that reduces overspray and coating waste, ultimately saving on paint costs.
The higher volume of air in HVLP guns is achieved through the use of larger air passages and air caps with multiple or larger atomizing orifices around the fluid nozzle. This design allows for more efficient atomization, with the volume of air being the critical factor rather than high air pressure. The air consumption of a spray gun is determined by the air motor, and HVLP air caps tend to consume more air than standard conventional air caps.
The amount of air required for HVLP guns can vary, with some sources stating a range of 10-25 CFM, while others state that most HVLP guns use around 9-12 CFM of air at 30 PSI. This higher volume of air requirement means that HVLP guns typically need a larger air compressor or a gas compressor/turbine to operate effectively.
It is important to note that while HVLP guns offer benefits in terms of reduced waste and improved transfer efficiency, they may struggle with thick coatings such as epoxies and zinc coatings. Conventional spray guns, on the other hand, can handle a wider range of coating types due to their ability to utilize higher pressure for atomization. However, they suffer from reduced transfer efficiency, resulting in increased coating waste and costs. Ultimately, the choice between HVLP and conventional spray guns depends on the specific requirements and constraints of the painting project.
Painting Snake Heads on Rocks: A Step-by-Step Guide
You may want to see also
Explore related products
A 2-stage compressor is best for HVLP guns
HVLP spray guns require a large volume of air to function properly. The amount of air available determines the amount of material that can be atomized in a given amount of time and the speed of the application. HVLP guns typically consume more air than standard conventional air caps.
While a 1 CFM compressor and a 1000-gallon tank could be used to spray a full car, the low CFM means that you cannot handle a full-duty cycle spraying. Most HVLP spray guns use around 9-12 CFM of air at 30 PSI. This requires a 240V or gas compressor or turbine for full-duty cycle spraying. 120V compressors can be used, but they generally top out at around 5 CFM.
When using an HVLP spray gun, it is important to filter the air to eliminate water, oil, and dirt from entering the gun. Additionally, a regulator may be necessary to correctly set the air pressure. HVLP spray guns are considered environmentally friendly, as they result in less overspray and reduce air pollution in the working area. They also tend to use less paint and produce less waste, leading to a cleaner working environment.
Importing Maya Meshes into Substance Painter: A Quick Guide
You may want to see also
Explore related products
CFM is more important than PSI
When it comes to spray painting, it is a common misconception that pressure (PSI) is the most crucial factor. However, it is essential to recognise that the volume of air delivered per minute (CFM) by an air compressor is significantly more important.
The amount of air available, or CFM, determines the speed of application and the amount of material that can be atomised within a given timeframe. A higher CFM allows for the use of larger air nozzles or airless pumps, which is particularly beneficial for HVLP spray guns as they tend to consume more air than standard conventional air caps. While a low CFM will not impact the spray pattern or atomisation, it will limit your ability to handle a full duty cycle spraying.
For example, a 1 HP compressor with an electric motor typically produces 4-5 CFM at 100 PSI, and a 1.5 hp electric unit is the maximum for household outlets. When using a portable compressor, if more air is required, a gasoline-powered unit can be considered.
Additionally, it is worth noting that the spray gun's CFM and PSI requirements should be matched with the compressor's capabilities. The compressor should be able to provide more CFM than the paint gun requires to ensure optimal performance. For instance, the Devilbiss Paint Gun Starter Kit's mini-HVLP detail spray gun requires 8 CFM at 30 PSI, while its large HVLP gravity spray gun requires 13 CFM at 30 PSI.
In summary, while PSI is important, CFM takes precedence when it comes to spray painting with HVLP guns. A sufficient CFM ensures a continuous paint flow, prevents the compressor from constantly running, and allows for the use of larger nozzles or pumps. Therefore, when considering a compressor, focus on its CFM delivery rather than just the PSI.
Florida Landlord's Guide to Painting Requirements
You may want to see also
Explore related products
A 1 HP compressor produces 4-5 CFM at 100 PSI
When it comes to spray painting, it is a common misconception that pressure (PSI) is the most crucial factor. However, the volume of air delivered per minute (CFM) is more important than PSI. CFM, or Cubic Feet per Minute, is a measure of volume used to indicate an air compressor's output rate in terms of cubic feet of air per minute of operation.
For example, a 2HP/30L air compressor claims to have a free air delivery of 5.4 CFM and 7.1 CFM pump displacement, which is sufficient for small-scale painting jobs. On the other hand, a 1 HP compressor with 4-5 CFM at 100 PSI may not be powerful enough to spray paint a whole car, but it can be suitable for painting a few panels.
It's important to note that the relationship between CFM and PSI is inversely proportional; as PSI increases, CFM decreases, and vice versa. Therefore, finding the right balance between CFM and PSI is essential for achieving the best efficiency and performance from your air compressor. Additionally, the air consumption of a spray gun is determined by the air motor, and different spray guns have different CFM requirements.
To ensure successful spray painting, operators must maintain a close eye on critical performance indicators, including speed, load size, air pressure, and airflow rate. By understanding the relationship between CFM and PSI and choosing the right compressor for your specific application, you can avoid issues like insufficient flow and artificial demand, resulting in optimal performance and cost savings.
Prevent Pumpkin Paint Peeling: The Ultimate Guide
You may want to see also
Explore related products
HVLP guns are more efficient than brushes, rollers, and standard spray guns
HVLP spray guns are a popular choice for painting projects, offering several advantages over traditional brushes, rollers, and standard spray guns.
One of the key benefits of HVLP spray guns is their efficiency in transferring material to the surface being painted. HVLP stands for High Volume, Low Pressure, which means the gun delivers a high volume of air at a low pressure. This results in a softer, more controlled spray pattern, allowing more paint to stick to the surface. This efficiency reduces paint waste, minimizes cleanup efforts, and saves money on paint consumption.
The softer spray of HVLP guns also reduces overspray, making them ideal for smaller, fine finish jobs that require precision. With transfer efficiency rates ranging from 60% to 75%, HVLP guns ensure that more paint ends up on the intended surface rather than bouncing off into the atmosphere. This not only reduces material waste but also helps minimize air pollution, contributing to a cleaner environment.
Additionally, HVLP guns are user-friendly and versatile. They are available in handheld models or floor-standing machines, making them accessible to beginners and experienced painters alike. The paint density, air volume, and pressure can be adjusted to suit the project, and they can be used for a wide range of applications, including woodworking, automotive painting, and home improvement projects.
In terms of the required air volume for HVLP guns, they typically use more CFM (cubic feet per minute) of air compared to standard spray guns. On average, HVLP guns use around 9-12 CFM of air at 30 PSI, so a 240V or gas compressor is recommended for full-duty cycle use.
Overall, HVLP guns offer a more efficient, precise, and versatile painting experience compared to brushes, rollers, and standard spray guns, making them a preferred choice for many professionals and DIY enthusiasts.
Designing Your Food Truck: A Guide to Painting Perfection
You may want to see also
Frequently asked questions
HVLP stands for High Volume, Low Pressure.
HVLP spray guns have different paths for material and air. When the material leaves the fluid nozzle, air is injected into the material by an air cap, which breaks up the material being sprayed.
Most HVLP guns use around 9-12 CFM of air at 30 PSI. A 2 HP compressor with a 30-gallon tank should be good for painting cars.
A tank size of at least 50 gallons can deliver optimal results for most HVLP applications.
Many applications require 25-30 PSI, with some requirements rising as high as 40 PSI to achieve higher atomization.
