Elena Rossi
Ultrasonic thickness testers are widely used in industries such as shipbuilding, oil and gas, and corrosion control to measure the thickness of materials. These non-destructive testing methods offer a convenient alternative to traditional destructive measurement techniques, eliminating the need to remove paint coatings. While conventional ultrasonic gauges may encounter challenges due to the presence of paint, modern advancements have introduced specialized techniques and equipment to enhance accuracy. This technology utilizes ultrasonic waves to penetrate the paint and reach the underlying material, providing precise thickness readings. However, factors such as paint thickness and coating type can influence the accuracy of ultrasonic measurements. Overall, ultrasonic thickness testers provide a valuable solution for efficient and cost-effective inspections in various industrial applications.
| Characteristics | Values |
|---|---|
| Accuracy | Thicker coatings can impede the ultrasonic waves, leading to inaccurate readings. |
| The thickness of the paint layer must be considered and the ultrasonic thickness gauge adjusted accordingly. | |
| Different types of coatings can impact accuracy. Rough or textured paints can scatter or attenuate the ultrasonic waves, reducing signal strength. | |
| In the case of metal, conventional ultrasonic gauges will measure the paint layer at the velocity of the metal, making the paint appear thicker than it is. | |
| The presence of multiple back wall echoes in metal means that the thickness of the coating can be cancelled out to give an accurate reading of the metal substrate thickness. | |
| In automotive coatings, the thickness of the adhesion promoter layer may be difficult for an ultrasonic gauge to distinguish from subsequent layers. | |
| A "wet-on-wet" coating application can cause a "transition layer" effect, blending individual layers and reducing the capability of an ultrasonic instrument to detect layer thickness. | |
| Ultrasonic thickness gauges can be handheld and are simple to operate, affordable, and reliable. | |
| Ultrasonic thickness gauges can be used in non-destructive testing, saving time and effort in inspections. | |
| Couplants can be used to improve sound energy transmission between the probe and the workpiece. | |
| Couplants can also act as lubricants, reducing friction between the probe and the workpiece. |
Explore related products
What You'll Learn

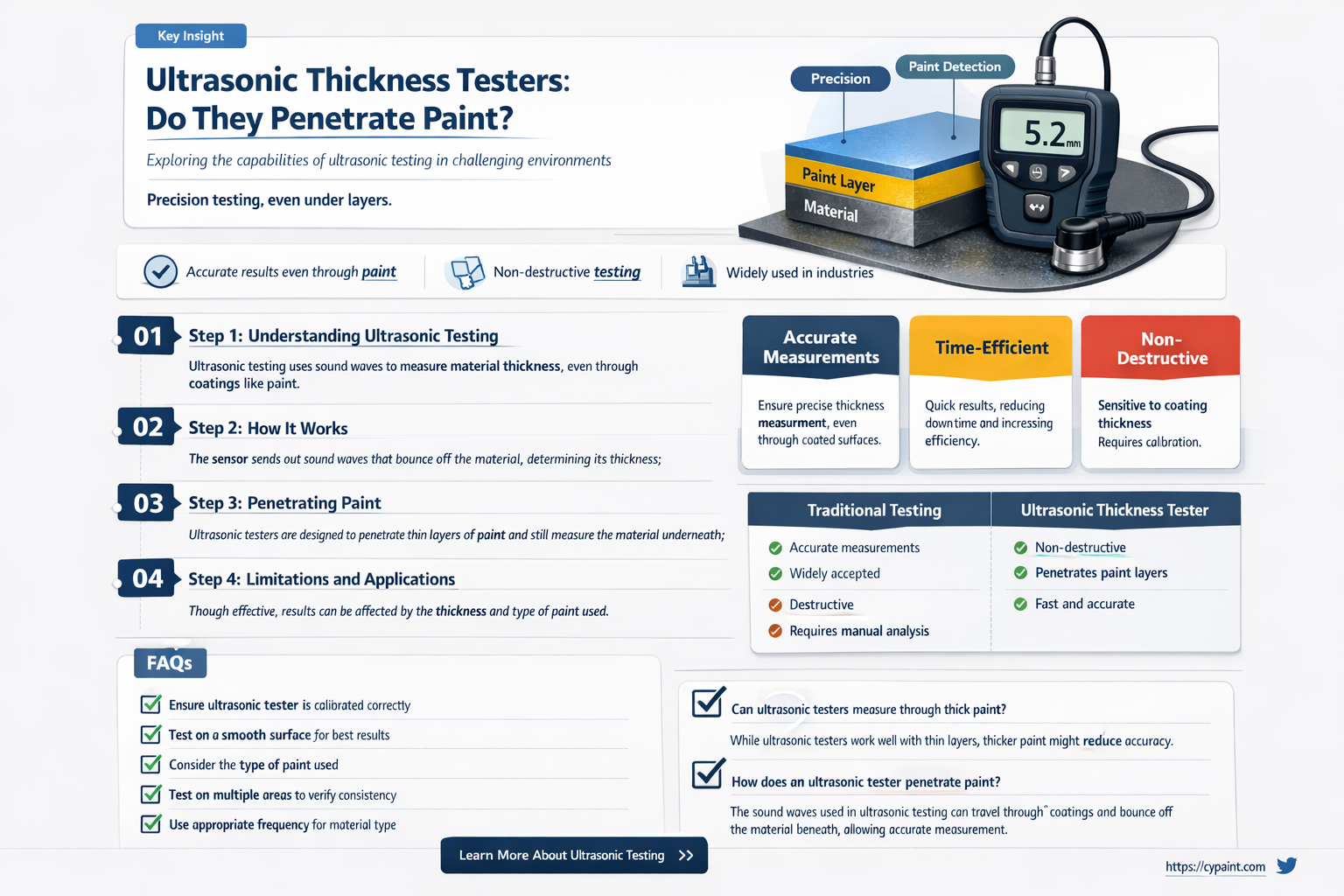

Ultrasonic thickness gauges can measure through paint coatings
Ultrasonic thickness gauges can accurately measure the thickness of materials through paint coatings. This non-destructive testing method saves time and effort by eliminating the need to remove paint coatings before taking measurements. By utilising ultrasonic waves, these gauges penetrate the paint to reach the material underneath, providing precise thickness readings.
The working principle of ultrasonic thickness gauges is based on sending ultrasonic vibrations or pulses into the material through a probe or transducer. These vibrations travel through the paint coating and reflect back to the transducer, allowing the gauge to calculate the thickness of the paint and the underlying material. This technology is especially useful for measuring thickness in situations where paint or coatings are present, such as in the shipbuilding, oil and gas, and corrosion control industries.
While ultrasonic thickness gauges offer significant benefits, it is important to consider factors that can affect accuracy. The thickness of the paint coating, for example, can impact the measurement. Thicker coatings may impede ultrasonic waves, leading to potential inaccuracies. Different types of coatings, such as rough or textured paints, can also scatter or attenuate the waves, reducing signal strength. Therefore, specialised techniques or adjustments may be necessary to compensate for these factors.
Ultrasonic thickness gauges have become a popular choice due to their ease of use, affordability, and reliability. They are designed to provide precise and dependable results, making them valuable tools for various industries. Additionally, the non-destructive nature of these gauges ensures that the inspected objects remain intact, further contributing to their popularity.
Overall, ultrasonic thickness gauges offer a convenient and efficient solution for measuring thickness through paint coatings. With their advanced technology, these gauges provide accurate readings, enhance operational efficiency, and enable informed decisions regarding maintenance, repairs, and quality control. By understanding the factors influencing accuracy, users can maximise the benefits of ultrasonic thickness gauges and obtain reliable measurements through paint coatings.
Easy Xbox One Paint Repair Guide
You may want to see also
Explore related products
Thicker paint coatings can impede ultrasonic waves
Ultrasonic thickness gauges are a valuable tool for non-destructive testing of materials. They can accurately measure the thickness of a wide range of materials, even when coated with paint or other substances. This makes them particularly useful in industries such as shipbuilding, oil and gas, and corrosion control.
However, it is important to note that the accuracy of ultrasonic measurements can be affected by several factors, including the thickness and type of paint coating. Thicker paint coatings can impede the transmission of ultrasonic waves, leading to potential errors in the readings. This is because the sound velocity in paint is much slower than in metals, typically less than 2,500 m/s compared to 5,900 m/s in steel. As a result, conventional ultrasonic gauges may measure the paint layer at the velocity of the metal, causing the paint thickness to appear larger than it actually is.
To address this issue, it is crucial to consider the thickness of the paint layer and adjust the ultrasonic thickness gauge accordingly. This may involve using specialised techniques or equipment, such as echo-to-echo measurement or THRU-COAT™ measurement, to compensate for the impact of the paint coating on the ultrasonic waves. By timing the interval between successive back wall echoes, the thickness of the paint layer can be cancelled out, providing an accurate measurement of the underlying material.
Additionally, the use of coupling agents, such as glycerin, oil, or silica gel, can improve the transmission of ultrasonic waves by filling any air gaps between the probe and the workpiece. This not only enhances the accuracy of the measurements but also reduces friction and prevents wear on the probe.
By understanding the limitations of ultrasonic thickness gauges when it comes to paint coatings and implementing appropriate adjustments and techniques, accurate and reliable measurements can be obtained, even through thicker paint coatings.
Dispose of Paint in Oakland County: A Guide
You may want to see also
Explore related products
Rough or textured paints can scatter ultrasonic waves
When it comes to ultrasonic thickness testing, paint or coatings can present challenges. While ultrasonic thickness gauges can provide precise and reliable measurements through paint coatings, certain factors can affect the accuracy of readings. One important consideration is the type of paint or coating. Rough or textured paints can scatter or attenuate ultrasonic waves, reducing signal strength and potentially leading to inaccurate results.
Ultrasonic thickness gauges use ultrasonic waves to measure the thickness of materials. These waves travel through the coating until they encounter a different material, typically the underlying substrate, and the reflected waves are used to calculate thickness. However, with rough or textured paints, the ultrasonic waves don't travel as effectively. The uneven surface of rough or textured paints causes the ultrasonic waves to bounce off in multiple directions, reducing the overall signal strength.
This scattering effect can be mitigated by using specialised techniques or equipment. For example, the use of coupling agents or gels can help fill any air gaps between the probe and the workpiece, improving the transmission of ultrasonic waves. Coupling agents of varying viscosities can be selected depending on the surface roughness, with thicker agents more suitable for rougher surfaces.
Additionally, advanced numerical techniques and software algorithms can also be employed to enhance the accuracy of measurements. By filtering and processing the reflected signals, it is possible to compensate for the scattering effect caused by rough or textured paints.
In conclusion, while rough or textured paints can indeed scatter ultrasonic waves and potentially impact the accuracy of ultrasonic thickness testing, there are effective strategies available to address this issue. With the right techniques and equipment, ultrasonic thickness gauges can still provide reliable measurements even on surfaces with rough or textured paints.
Compressing JPEGs: 3D Paint's Quick Fix
You may want to see also
Explore related products
Couplants improve sound energy transmission
An ultrasonic thickness tester can work through paint coatings to accurately gauge the thickness of materials. This is a valuable feature, especially in industries such as shipbuilding, oil and gas, and corrosion control, where non-destructive testing is preferred. However, the accuracy of ultrasonic measurements can be affected by several factors, including the thickness and type of paint coating.
Couplants play a significant role in improving sound energy transmission during ultrasonic inspections. Couplants are coupling agents that facilitate the transmission of ultrasonic waves between the transducer and the test material. They are essential for achieving precise and efficient evaluations in various applications, including manufacturing, construction, and non-destructive testing.
The choice of couplant depends on specific inspection requirements and the nature of the test material. Couplants improve sound energy transmission by eliminating air gaps or voids that can impede the transmission of ultrasonic waves. They also minimize impedance mismatch between the transducer and the test material, ensuring better transmission and reception of ultrasonic waves. This impedance matching ensures effective energy transfer and accurate signal detection.
Different types of couplants are available, including water-based gels, oils, and pastes. Factors such as viscosity, temperature stability, and compatibility with the test material should be considered when selecting a couplant. For example, gel couplants are recommended for rough surfaces and weld inspections, as they maximize sound coupling and can be easily spread over a large area. Glycerin is another common couplant with high viscosity and acoustic impedance, making it suitable for rough surfaces and highly attenuating materials.
Using a high-quality couplant is crucial for maximizing signal-to-noise ratio, improving flaw detection, and enhancing overall inspection performance. It ensures accurate and reliable ultrasonic inspections, making it an important consideration when utilizing ultrasonic thickness testers.
Customizing D&D Minis: Painting Your Own Figures
You may want to see also
Explore related products
Echo-to-echo thickness measurement removes paint thickness from the reading
The echo-to-echo thickness measurement technique is a valuable tool for assessing the thickness of materials coated in paint or other substances. This non-destructive method provides accurate readings without the need to remove the coating, saving time and effort for inspectors.
The technique utilises ultrasonic waves to penetrate the paint or coating and reach the underlying material. By measuring the difference between two consecutive backwall echoes, the thickness of the coating is negated, providing an accurate reading of the material's thickness. This is particularly useful for painted piping and structural steel, where paint can introduce substantial errors to overall thickness readings.
The echo-to-echo technique is especially advantageous when dealing with internal pitting or corrosion. By measuring the average coating thickness in an adjacent corrosion-free area, inspectors can determine the actual remaining wall thickness. This is achieved by subtracting the coating thickness from the first backwall echo reading.
It is important to note that the accuracy of echo-to-echo measurements can be affected by factors such as coating thickness and type. Thicker coatings can impede ultrasonic waves, requiring adjustments to the ultrasonic thickness gauge. Rough or textured paints, for example, can scatter or attenuate the waves, potentially leading to inaccurate readings.
Overall, the echo-to-echo thickness measurement technique offers a precise and efficient solution for thickness measurements, removing paint thickness from the reading and providing valuable insights for maintenance, repairs, and quality control in various industries.
Cassatt vs. Morisot: A Study in Contrasting Styles
You may want to see also
Frequently asked questions
Yes, ultrasonic thickness testers can work through paint. These testers use ultrasonic waves to measure the thickness of materials accurately. This non-destructive testing method is efficient and cost-effective, as it eliminates the need to remove paint coatings.
Ultrasonic thickness testers send ultrasonic vibrations or pulses into the material being measured. These vibrations travel through the paint coating and the material, and the time taken for the vibrations to reflect back to the tester is used to calculate the thickness.
The accuracy of ultrasonic thickness testers on painted surfaces can be influenced by the thickness of the paint coating. Thicker coatings can impede ultrasonic waves, leading to potential errors in readings. Additionally, the type of coating matters; rough or textured paints can scatter or attenuate ultrasonic waves, resulting in reduced signal strength and possibly inaccurate measurements.
Ultrasonic thickness testers offer a non-destructive testing approach, eliminating the need to destroy or repair objects for measurement. They are simple to operate, affordable, reliable, and provide quick and accurate results. Ultrasonic testing can also detect flaws, measure dimensions, and characterise materials beyond just thickness measurements.
