Isabella Flores
Grounding clamps are used to complete electrical circuits, and they can be attached to copper pipes. However, it is important to note that the type of metal used in the clamp must correspond with the type of pipe. For example, a zinc-coated ground clamp should be used with a galvanized water pipe, while a brass or bronze ground clamp is suitable for a copper pipe. In addition, the length of the copper pipe is also a factor to consider. One source mentions that a copper pipe must be at least 10 feet (3.1 meters) in length for the grounding clamp to be effective.
| Characteristics | Values |
|---|---|
| Length of copper pipe | 10 feet or 3.1 meters |
| Type of grounding clamp | Brass or bronze |
| Paint | Does not cause corrosion issues |
Explore related products
What You'll Learn
The minimum length of a copper pipe for grounding
It is important to note that only a qualified electrician should perform any electrical work. While paint on a grounding wire, clamp, and copper pipe may not cause corrosion issues, it is still best to consult a professional.
As for the minimum length of a copper pipe for grounding, it is recommended to have at least 10 feet (3.1 meters) of copper pipe in the ground. If the copper pipe is shorter than this length, it may not be a legitimate setup. This length of copper pipe can be used as a grounding electrode conductor, which is sized according to the National Electrical Code (NEC) Table 250.66. According to the NEC, the grounding electrode conductor is never required to be larger than 3/0 copper or 250 kcmil aluminum.
It is important to ensure that the copper pipe is properly bonded and that there is continuity to the ground rod. Additionally, it is recommended to have multiple ground rods in areas that receive moisture to ensure proper grounding.
While it is possible to ground through copper water pipes, it is important to follow local electrical codes and regulations. It is always best to consult with a qualified electrician to ensure that any grounding setup is safe and compliant with local standards.
Mounting Paintings: Using Floater Frames
You may want to see also
Explore related products

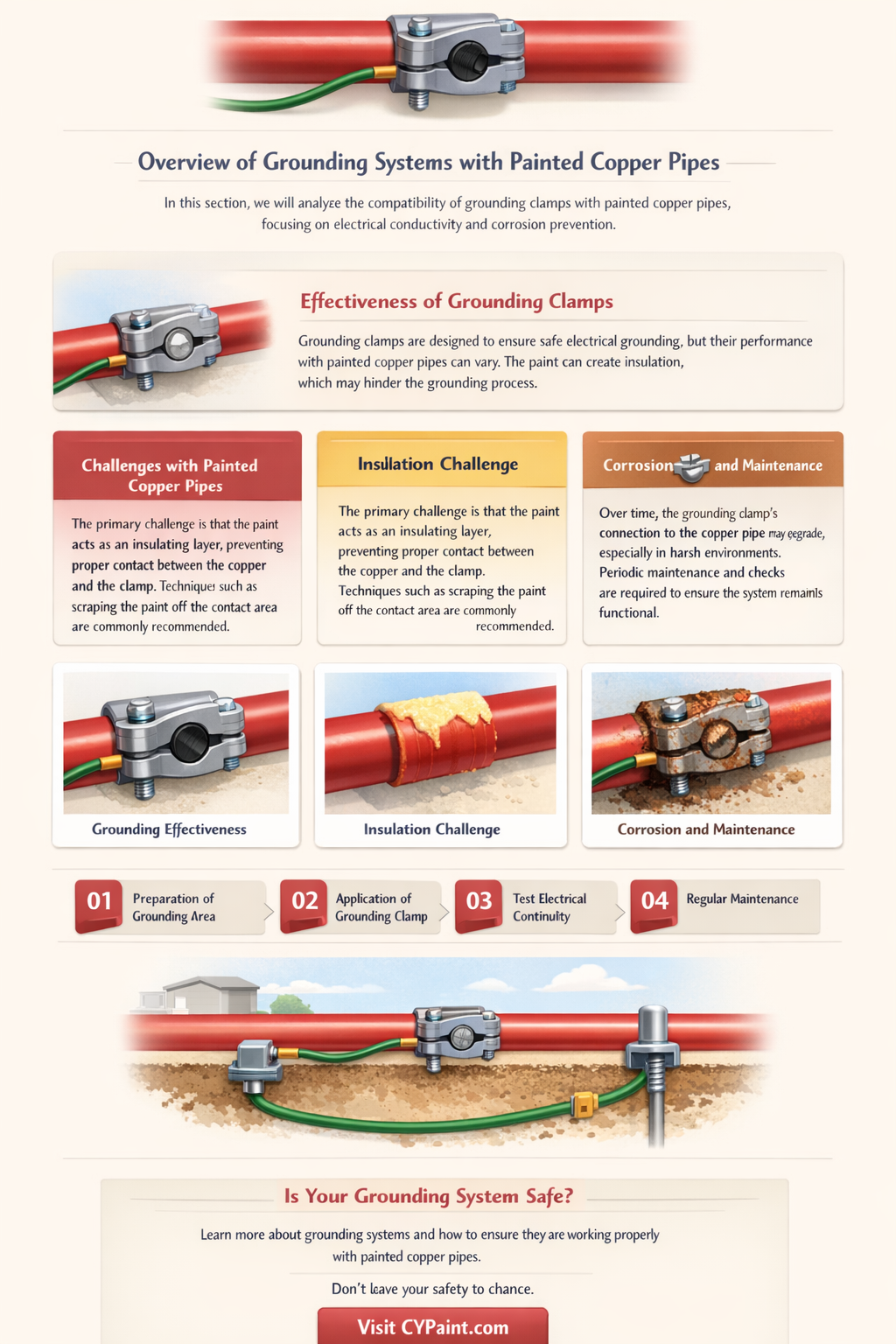

The impact of paint on the functionality of a grounding clamp
Paint can impact the functionality of a grounding clamp, and its effect depends on the type of materials involved. In the case of a zinc-coated ground clamp on a copper pipe, for instance, paint can help prevent corrosion. This is because the zinc and copper, along with moisture, create a battery that causes electrolytic (galvanic) corrosion. Paint acts as a barrier, preventing direct contact between the two metals and inhibiting corrosion.
However, if the paint is applied incorrectly or the connection is not secure, it can cause issues. It is crucial to ensure that the paint does not interfere with the connection or cause any disconnections. A poor connection can lead to electrical problems and potential safety hazards.
Additionally, the type of paint used can also be a factor. Some paints may not have the same insulating properties as others, which could affect their ability to prevent corrosion effectively. It is always recommended to consult a qualified electrician or follow manufacturer guidelines to ensure the proper type of paint is used and that it is applied correctly.
Moreover, paint may need to be removed or sanded in certain scenarios. For example, if a ground clamp needs to be reconnected or repaired, the paint may need to be stripped to expose the underlying metal for a secure connection. In such cases, it is essential to follow the necessary safety precautions and engage a qualified professional if needed.
Overall, while paint can help prevent corrosion in specific cases, such as with zinc-coated clamps on copper pipes, it is crucial to consider the specific materials, application methods, and potential interference with connections. Ensuring proper paint usage can help maintain the functionality and safety of grounding clamps.
Painting Rooms in a Rented Apartment: What You Need to Know
You may want to see also
Explore related products
The correct location for a grounding clamp
Firstly, it is crucial to understand the purpose of the grounding clamp, which is to provide a low-resistance path for electrical currents, especially in the event of a fault. This helps protect electrical equipment and prevent electric shocks.
Now, regarding the location, the grounding clamp should be placed as close to the "dirt" or ground as possible. This is because a shorter distance to the actual ground reduces the resistance for electrical faults, providing a safer path for the current to travel.
In the case of water pipes, it is generally recommended to place the clamp near the water meter or the ground rod outside the building. This ensures a proper bonding format and maintains electrical safety standards.
Additionally, when dealing with a main panel's grounding wire and grounding rods, the wire does not need to run in a perfectly straight line horizontally. It is common for the wire to be clamped parallel to the rods, bending as needed to reach the next rod.
It is worth noting that specific regulations and standards may vary based on your location, so it is always advisable to consult a qualified electrician or refer to local electrical codes for precise guidelines on grounding clamp placement.
The Perfect Automotive Paint Mix: Cup Method for Beginners
You may want to see also
Explore related products
$7.49
$8.99
The type of clamp required for copper pipes
Copper pipe clamps are a common component in most plumbing systems. They are typically used to hold pipes in place and prevent them from moving, but they can also be used to temporarily fix water line leaks. When choosing a clamp for a copper pipe, it is important to consider the specific repair application and the type of leak being repaired. The clamp should be the correct size for the pipe's diameter and designed for the specific type of leak.
There are several types of clamps designed for copper pipes, including repair clamps, compression couplings, pinhole leak repair clamps, and split pipe repair clamps. Repair clamps, for instance, are designed to repair leaks in copper pipes. They consist of a metal band that wraps around the damaged area of the pipe and is tightened with a bolt or screw to compress the interior rubber gasket, creating a seal around the leak. Split pipe clamps are similar but have a split in the metal band, allowing them to be installed without sliding them over the pipe's end.
Saddle clamps are another option for repairing leaks in copper pipes in hard-to-reach areas, such as behind walls or ceilings. They consist of a metal plate mounted over the pipe’s damaged area and secured with screws or bolts. For copper pipes, plastic clamps are ideal as they provide a softer hold, which is important for softer metals. Metal clamps, on the other hand, can crack or break plastic pipes if secured too tightly.
When selecting a clamp, it is important to consider factors such as ease of installation, budget, brand, and quality. Choose a clamp that is easy to install and within your budget but still meets the requirements for your repair job. Opt for a high-quality clamp from a reputable brand to ensure a reliable repair solution. Additionally, consider your level of expertise in plumbing and repair work and select a clamp that aligns with your skill level.
Uncover Drawer Screws: Paint-Covered Mystery Solved
You may want to see also
Explore related products
The impact of corrosion on grounding clamps
Grounding clamps are an essential component of electrical safety systems, coordinating with grounding rods and conductors to form a comprehensive grounding network. They are typically made of high-conductivity materials like copper and aluminium, with copper being the most commonly used material due to its excellent conductivity and resistance to corrosion.
However, grounding systems, including clamps, are still vulnerable to corrosion, which can compromise their functionality and safety. Several factors contribute to corrosion, including moisture, oxygen, and salt. Corrosion can occur due to the use of mismatched materials, which can lead to galvanic corrosion caused by dissimilar metals. For example, the use of a brass clamp on a copper pipe can result in galvanic corrosion due to the difference in materials.
To mitigate the impact of corrosion on grounding clamps, it is important to use compatible materials that are galvanically "compatible". This can help to reduce the likelihood of corrosion and maintain the effectiveness of the grounding system. Regular inspections and maintenance are also crucial, as they can help identify corrosion early on and allow for prompt action to be taken.
Additionally, proper installation techniques, such as ensuring tight connections, are essential in preventing corrosion and maintaining the safety and functionality of the grounding clamps and the overall electrical system.
Proper Paint Disposal: Windsor's Guide to Eco-Friendly Practices
You may want to see also
Frequently asked questions
It is always best to get a qualified electrician to perform any electrical work. However, as long as the connection was not disconnected before painting, it should be fine.
For a copper pipe, you need a brass or bronze ground clamp. A zinc-coated ground clamp is meant to be used on galvanized water pipes.
Yes, coating the ground clamp and the surrounding pipe with petroleum jelly can help prevent corrosion.
