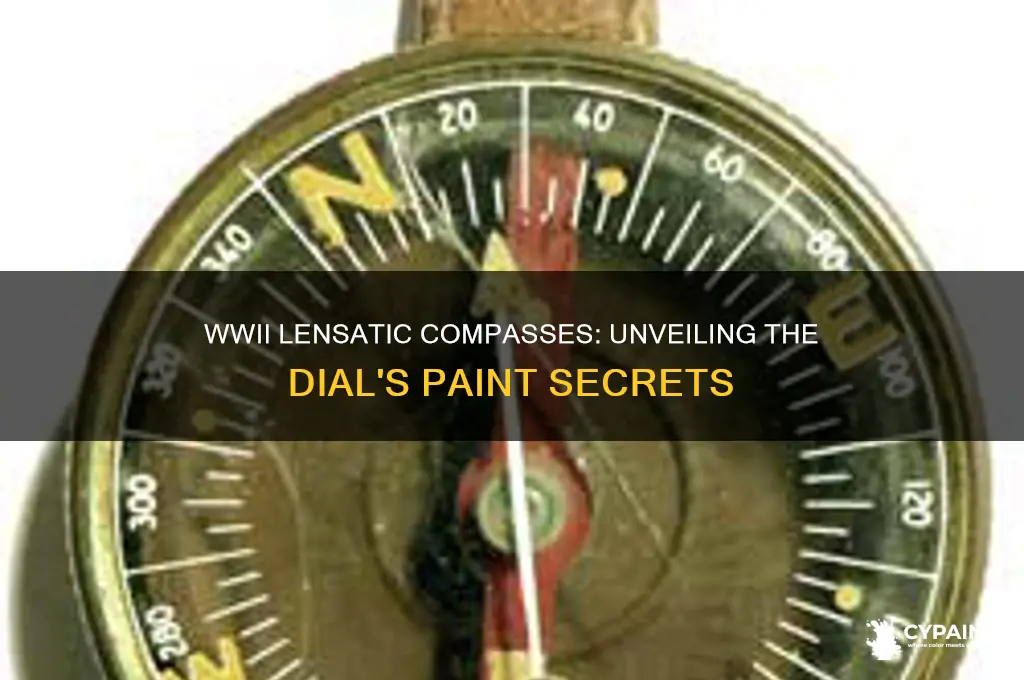

During World War II, lenticular compasses, also known as WW2 lensatic compasses, were essential tools for navigation in military operations. These compasses featured a unique design with a liquid-filled housing and a floating magnetic needle, ensuring accuracy even in challenging conditions. The dials of these compasses were often painted with luminous materials to enhance visibility in low-light environments, such as during nighttime missions or in dense foliage. The paint used typically contained phosphorescent compounds like radium or zinc sulfide, which glowed after exposure to light, allowing soldiers to read the compass dial in the dark. This innovation was crucial for maintaining orientation and executing strategic maneuvers under the cover of darkness, making the lensatic compass a vital piece of equipment for Allied forces throughout the war.
| Characteristics | Values |
|---|---|
| Material Used | Luminous paint containing radium-226 (a radioactive isotope) |
| Purpose | To provide visibility in low-light or nighttime conditions |
| Paint Name | Radium paint (commonly known as "Undark" or "Radioluminescent paint") |
| Glow Color | Green or greenish-blue glow in the dark |
| Application | Applied to the dial and hands of compasses for easy readability |
| Health Risks | Exposure to radium-226 posed serious health risks, including radiation poisoning and bone damage (notably affecting factory workers who painted the dials) |
| Replacement | Later replaced by safer luminous materials like tritium (in modern compasses) |
| Historical Use | Widely used in WWII-era military equipment, including compasses, watches, and instrument panels |
| Regulation | Use of radium paint was phased out due to health concerns, leading to stricter regulations on radioactive materials |
| Legacy | Remembered for its effectiveness in low-light conditions but also for the tragic consequences of its production and use |
Explore related products
What You'll Learn
- Luminescent Paint Types: Zinc sulfide and radium were commonly used for glow-in-the-dark dials
- Health Risks: Radium paint caused radiation poisoning in factory workers, known as Radium Girls
- Military Use: Luminous dials ensured visibility in low-light combat conditions for soldiers
- Alternative Materials: Tritium replaced radium post-WWII due to safety concerns and longevity
- Manufacturing Process: Paint was applied by hand, often with fine brushes, for precision
Luminescent Paint Types: Zinc sulfide and radium were commonly used for glow-in-the-dark dials
During World War II, luminescent paints were critical for ensuring visibility in low-light conditions, particularly on instruments like compasses. Two primary materials dominated this application: zinc sulfide and radium. Zinc sulfide, activated by phosphors, provided a safer, short-lived glow when exposed to light, while radium offered a more intense, long-lasting luminescence due to its radioactive decay. This duality in functionality and risk shaped their use in wartime technology.
Zinc sulfide-based paints were the more practical choice for mass-produced military equipment. When mixed with copper or silver activators, these paints emitted a green or blue glow after exposure to sunlight or artificial light. The glow typically lasted 10–30 minutes, sufficient for brief nighttime operations. To apply, manufacturers brushed or sprayed the paint onto compass dials, often in multiple layers to enhance brightness. Despite its shorter duration, zinc sulfide was favored for its non-toxicity and ease of production, making it ideal for field-issued gear.
Radium, on the other hand, was reserved for high-priority instruments requiring constant visibility. Radium-226, combined with phosphorescent copper or zinc sulfide, produced a glow lasting up to 12 hours without external charging. However, its use came with significant health risks. Workers in radium-painting factories, known as "radium girls," suffered severe radiation poisoning due to the practice of lipping brushes—a method that inadvertently ingested radioactive particles. Despite this, radium’s reliability in prolonged darkness made it indispensable for specialized military applications.
The choice between zinc sulfide and radium paints often boiled down to operational needs versus safety. For standard-issue compasses, zinc sulfide provided a cost-effective, low-risk solution. Radium, however, was used in critical instruments like aircraft and naval compasses, where uninterrupted visibility was non-negotiable. Post-war, the hazards of radium led to its replacement with safer alternatives like tritium, but its wartime legacy remains a testament to the compromises made in pursuit of technological advantage.
In practical terms, restoring or replicating WWII-era compasses today requires careful consideration of these materials. Zinc sulfide paints can be sourced from specialty suppliers and applied using period-accurate techniques, though their glow will still fade quickly. Radium paints, while historically accurate, are hazardous and illegal to use in most countries. Modern restorers often opt for tritium or photoluminescent pigments, which mimic the appearance without the risks. Understanding these original materials not only preserves history but also highlights the evolution of safety standards in technology.
Elegant Edible Art: Mastering the Technique of Painting Gold Lines on Cakes
You may want to see also
Explore related products
Health Risks: Radium paint caused radiation poisoning in factory workers, known as Radium Girls
During World War II, luminous dials on instruments like compasses were often painted with radium-based materials to ensure visibility in low-light conditions. While this innovation was a technological advancement, it came at a grave human cost. The story of the Radium Girls serves as a stark reminder of the health risks associated with radium paint, a hazard that factory workers faced daily.
The process of painting these dials involved workers, predominantly young women, using fine brushes to apply radium-laced paint to the tiny numerals and markings. To maintain precision, they were instructed to lick the brush tips, a practice that inadvertently led to the ingestion of radium. Over time, this exposure resulted in radiation poisoning, with symptoms including severe bone decay, anemia, and necrosis of the jaw—a condition known as "radium jaw." The cumulative radiation dose from prolonged exposure was often fatal, as radium mimics calcium and becomes deposited in bones, continuously irradiating the body from within.
Analyzing the broader implications, the Radium Girls’ plight highlights the dangers of prioritizing industrial efficiency over worker safety. Companies like the United States Radium Corporation downplayed the risks, even as workers fell ill. It wasn’t until the 1920s, after legal battles and public outcry, that the hazardous nature of radium paint was acknowledged. This tragedy underscores the importance of stringent workplace safety regulations and the need for transparency in handling toxic materials.
For those working with or around legacy materials containing radium, caution is paramount. Avoid direct contact with radium-painted objects, and ensure proper ventilation if handling such items. If you suspect exposure, seek medical attention immediately, as early detection can mitigate long-term health effects. Modern alternatives like tritium or non-radioactive phosphorescent materials have largely replaced radium, but awareness of its historical use remains crucial for safety.
In conclusion, the Radium Girls’ story is a cautionary tale about the unseen dangers of radium paint. Their sacrifice led to significant advancements in occupational safety and radiation awareness. By understanding this history, we can better protect ourselves and future generations from similar hazards, ensuring that such tragedies are never repeated.
Creative Steps to Paint a Charming Paper Mache Dog
You may want to see also
Explore related products
Military Use: Luminous dials ensured visibility in low-light combat conditions for soldiers
During World War II, luminous dials on military equipment were not just a convenience—they were a tactical necessity. Soldiers often operated in low-light or nighttime conditions, where visibility could mean the difference between life and death. Luminous paint, typically containing radium or tritium, was applied to compass dials to ensure readability in the dark. This innovation allowed troops to navigate unfamiliar terrain, coordinate movements, and execute missions without compromising their position by using external light sources. The glow of these dials provided a subtle yet critical advantage in the chaos of combat.
The application of luminous paint to compass dials was a meticulous process, requiring precision to ensure even coverage and durability. Manufacturers mixed radium or tritium compounds with a phosphorescent material, often zinc sulfide, to create a paint that emitted a steady glow after exposure to light. This paint was then carefully applied to the numerals, markers, and hands of the compass dial. The result was a tool that remained visible for hours in darkness, enabling soldiers to maintain situational awareness during night operations, trench warfare, or covert missions.
One of the most significant advantages of luminous dials was their reliability in extreme conditions. Unlike battery-powered devices, which could fail in cold temperatures or wet environments, radium-painted dials required no external power source. This made them ideal for the unpredictable and harsh conditions of the battlefield. For instance, soldiers fighting in the Pacific theater or the European front relied on these compasses to navigate dense jungles, snowy mountains, or pitch-black nights. The luminous dials ensured that they could always determine their direction, even when visibility was otherwise impossible.
However, the use of radium in luminous paint came with risks. Prolonged exposure to radium could lead to radiation poisoning, a danger that was not fully understood during the war. Soldiers and factory workers who handled these compasses were often unaware of the potential health hazards. Despite this, the tactical benefits outweighed the risks at the time, and luminous dials remained a standard feature of military equipment. Post-war, safer alternatives like tritium became more prevalent, reducing the health risks while maintaining the functionality that had proven so vital in combat.
In conclusion, luminous dials on WWII compasses were a game-changer for military operations, providing soldiers with a reliable tool for low-light navigation. Their design and application demonstrate the intersection of innovation and necessity in wartime technology. While the health risks associated with radium were a significant drawback, the immediate tactical advantages ensured their widespread use. Today, the legacy of these luminous dials lives on in modern military equipment, a testament to their enduring importance in the field.
Should You Paint Fruit Tree Bark Splits? Expert Advice
You may want to see also
Explore related products
Alternative Materials: Tritium replaced radium post-WWII due to safety concerns and longevity
During World War II, luminous dials on compasses and other instruments were often painted with radium-based compounds to ensure visibility in low-light conditions. Radium, a radioactive element, emitted a steady glow, making it ideal for military applications. However, its use came at a significant cost: prolonged exposure to radium posed serious health risks, including radiation poisoning and bone cancer. Workers in radium-dial factories, known as the "Radium Girls," suffered severe health consequences, highlighting the dangers of this material. By the post-war era, the search for safer alternatives became imperative, leading to the adoption of tritium as a replacement.
Tritium, a radioactive isotope of hydrogen, emerged as a viable alternative to radium due to its lower toxicity and shorter half-life. Unlike radium, which has a half-life of 1,600 years, tritium’s half-life is approximately 12.3 years, reducing long-term environmental and health risks. Tritium-based luminous materials, often combined with phosphors, produce a consistent glow without the hazardous effects of radium. This shift was not merely a safety measure but also a practical one, as tritium’s decay rate ensures a predictable and reliable luminosity over decades, making it ideal for military and civilian instruments alike.
The transition from radium to tritium required careful engineering to maintain the functionality of luminous dials. Tritium gas is encapsulated in tiny glass vials, which are then embedded in the dial’s paint. This method, known as gaseous tritium light sources (GTLS), ensures the tritium remains contained and safe for use. Manufacturers must adhere to strict regulations, such as those set by the International Atomic Energy Agency (IAEA), to limit tritium exposure to safe levels—typically below 0.1 microcuries per device. This encapsulation technique not only enhances safety but also extends the usable life of the dial, as tritium’s decay is gradual and predictable.
From a practical standpoint, tritium-painted dials offer distinct advantages over their radium counterparts. For outdoor enthusiasts, military personnel, and professionals relying on compasses, watches, or gauges in low-light conditions, tritium’s self-sustaining glow eliminates the need for external light sources or recharging. However, users should be aware that tritium’s luminosity diminishes over time, with a noticeable reduction after 10–20 years. To maximize longevity, devices should be stored in cool, dry environments, as heat and moisture can accelerate tritium’s decay. Additionally, while tritium is safer than radium, proper disposal of tritium-containing devices is crucial to prevent environmental contamination.
In summary, the replacement of radium with tritium in luminous dials post-WWII marked a critical advancement in both safety and functionality. By addressing the health risks associated with radium while maintaining reliable luminosity, tritium became the material of choice for modern instruments. Its adoption underscores the importance of balancing technological innovation with safety considerations, ensuring that tools like compasses remain effective without compromising user well-being. As tritium continues to be used in various applications, its legacy serves as a reminder of the ongoing pursuit of safer, more sustainable materials in technology.
Mastering the Art of Success: Strategies for a Thriving Painting Business
You may want to see also
Explore related products
Manufacturing Process: Paint was applied by hand, often with fine brushes, for precision
The dials of WW2-era lensatic compasses were painted with meticulous care, a process that demanded both skill and precision. Unlike modern manufacturing techniques, which often rely on automated processes, the application of paint to these compasses was done entirely by hand. This manual approach ensured that each dial was marked with clarity and accuracy, critical for reliable navigation in the field. Fine brushes, often no thicker than a few millimeters, were used to apply the paint, allowing for sharp lines and distinct markings that remained legible under various lighting conditions.
One of the key challenges in this process was maintaining consistency across thousands of units. The paint, typically a luminous or high-contrast color like white or yellow, had to be applied in precise quantities to avoid obscuring the dial’s markings or creating uneven surfaces. Workers were trained to apply the paint in thin, even layers, ensuring that the numerals and graduations remained sharp and easy to read. This attention to detail was not merely aesthetic; it directly impacted the compass’s functionality, as smudged or blurred markings could lead to navigational errors with potentially dire consequences.
The choice of paint was equally important. Luminous paints, often containing radium or other phosphorescent materials, were commonly used to ensure visibility in low-light conditions. However, working with such materials required strict safety protocols, as prolonged exposure posed health risks. Workers had to handle the paint with care, using protective gear and following specific application techniques to minimize contact. Despite these challenges, the use of luminous paint was essential for military compasses, where nighttime navigation was a frequent necessity.
A notable example of this process can be seen in the M-1938 lensatic compass, a standard issue for U.S. troops during WW2. The dial’s markings were painted with a combination of luminous and non-luminous paints, creating a clear contrast between the numerals and the background. The process required a steady hand and a keen eye, as the dial’s small size left little room for error. Each compass was inspected after painting to ensure that the markings met strict quality standards, a testament to the craftsmanship involved in their production.
In retrospect, the hand-painting of WW2 lensatic compass dials exemplifies the intersection of artistry and functionality in military manufacturing. While modern techniques have largely replaced manual painting, the precision and care evident in these compasses remain a benchmark for quality. For collectors and enthusiasts, understanding this process adds a layer of appreciation for these instruments, highlighting the human effort behind their creation. Practical tip: When restoring a vintage compass, use fine-tipped brushes and high-quality, non-toxic luminous paint to maintain authenticity while ensuring safety.
Who Inspired Us to See Paint as Just Paint?
You may want to see also
Frequently asked questions
WW2 lenticular compasses typically had dials painted with luminous paint, often containing radium or other phosphorescent materials, to ensure visibility in low-light conditions.
Radium was used because it provided a long-lasting glow without needing an external light source, making it ideal for nighttime navigation during wartime operations.
Yes, prolonged exposure to radium paint posed health risks, including radiation poisoning, though these risks were not fully understood during the war.
No, not all WW2 compasses used radium. Some used other phosphorescent materials or non-luminous paints, depending on availability and manufacturer.
The glow from radium-painted dials could last for several hours after exposure to light, though the intensity gradually diminished over time.
