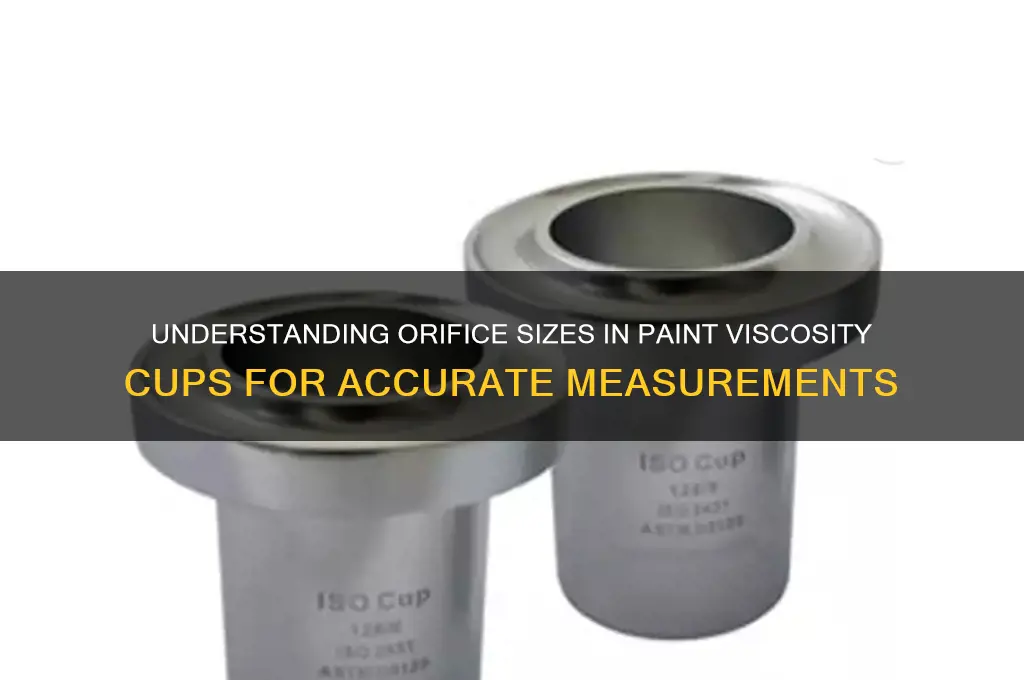

The orifice size of paint viscosity cups is a critical factor in accurately measuring the flow rate and consistency of paint or other liquids. These cups, commonly known as Zahn or Ford cups, are standardized tools used in industries such as automotive, manufacturing, and coatings to ensure uniform application and quality control. The orifice size, typically measured in millimeters or inches, determines how quickly the liquid flows through the cup, with smaller orifices providing higher resistance and slower flow rates. Selecting the appropriate orifice size is essential for obtaining precise viscosity measurements, as it directly impacts the accuracy of the results and ensures compliance with industry standards. Understanding the relationship between orifice size and paint viscosity is key to achieving consistent and reliable outcomes in liquid application processes.
Explore related products
What You'll Learn
- Standard Orifice Sizes: Common diameters for paint viscosity cups to ensure accurate flow measurements
- Material Impact: How orifice size varies based on paint viscosity and material type
- Calibration Techniques: Methods to calibrate orifice size for precise viscosity testing
- Industry Standards: Regulatory guidelines for orifice sizes in viscosity cups across industries
- Troubleshooting Clogs: Solutions for blocked orifices and maintaining consistent flow during testing
Standard Orifice Sizes: Common diameters for paint viscosity cups to ensure accurate flow measurements
Paint viscosity cups rely on precise orifice diameters to measure fluid flow accurately. Standard sizes typically range from 2 mm to 8 mm, with 4 mm being the most common for general industrial applications. Smaller diameters, like 2 mm or 3 mm, are ideal for high-viscosity materials such as thick enamels or gel coats, where slower flow rates are necessary for accurate measurement. Larger diameters, such as 6 mm or 8 mm, are suited for low-viscosity fluids like water-based paints or stains, allowing for quicker flow and efficient testing. Selecting the correct orifice size ensures consistent results and aligns with industry standards like ASTM D1200 or ISO 2431.
The choice of orifice size directly impacts the time it takes for a given volume of paint to flow through the cup, known as efflux time. For instance, a 4 mm orifice might yield an efflux time of 20 seconds for a medium-viscosity paint, while a 6 mm orifice could reduce this to 12 seconds for the same material. Manufacturers often provide charts correlating orifice size to expected flow times for specific paint types, enabling users to calibrate their measurements effectively. Ignoring these guidelines can lead to inaccurate viscosity readings, affecting product quality and application consistency.
When selecting an orifice size, consider the paint’s intended use and application method. For example, automotive paints, which require precise viscosity for spray application, often use 4 mm orifices to balance flow rate and accuracy. In contrast, construction coatings might opt for larger diameters to accommodate faster production cycles. Custom orifices are also available for specialized applications, though they require careful validation to ensure compliance with testing standards. Always clean the orifice thoroughly between tests to prevent clogs, which can skew results.
Practical tips for optimizing orifice performance include preconditioning the paint to a consistent temperature, as viscosity changes with heat. For instance, a 2°C temperature variation can alter efflux time by up to 5%. Additionally, ensure the cup is held level during testing to avoid air bubbles or uneven flow. If using multiple orifice sizes, label each cup clearly to prevent confusion. Regularly inspect the orifice for wear or damage, as even minor deformations can affect measurements. By adhering to these practices, users can maximize the accuracy and reliability of their viscosity cup tests.
