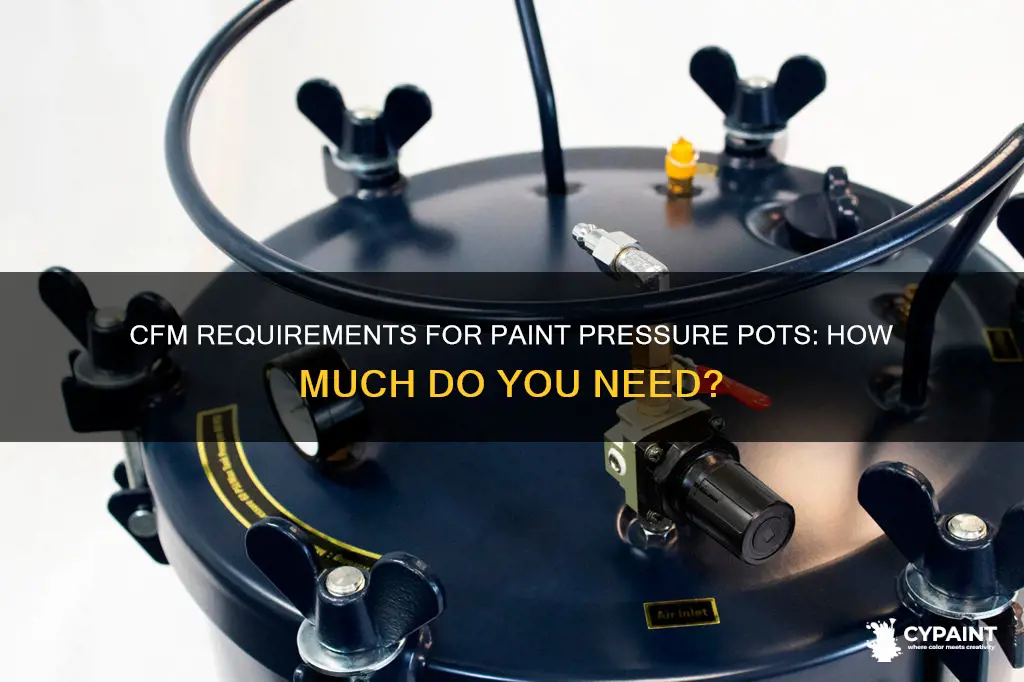

When using a paint pressure pot, the CFM (cubic feet per minute) requirement depends on the spray gun being used and the material being sprayed. CFM requirements can vary from 7 CFM for a low CFM gun to 11-13.5 CFM for a CPR gun that can adapt between HVLP and Compliant (Pressure Reduced). Most compressors can reach up to 90-100 PSI, but for typical products, the pressure should be between 10-20 PSI, and for things like primer/undercoater or house paint, the pressure should be between 20-30 PSI. The size of the pressure pot should also be considered, as a larger pot will require more CFM to pressurize. Additionally, the material being sprayed is important to consider, as water-based materials may require a stainless steel pressure pot to prevent corrosion.
Characteristics and Values of a Paint Pressure Pot
| Characteristics | Values |
|---|---|
| Air Compressor | CFM will be based on the gun you use; most compressors reach up to 90-100 PSI |
| Air Regulator | 1 for Casting, 2 for Pressure Pot to spray |
| Air Hose | Minimum 50ft. from the Air Compressor to the Air Filter |
| Air Filter | To clean the air from contaminants like oil, water, and dirt |
| Casting Mold | Required for Cast Molding Pot |
| Spray Gun | Required for Pressure Pot |
| Material | Most tanks are made from heavy-gauge steel; stainless steel is necessary for water-based materials |
| Capacity | Based on how much material you will use in a day |
| Paint Type | Water-based materials require stainless steel to prevent corrosion |
| Paint Properties | Unknown properties may cause loss of sheen, lower quality, and orange peel |
| Fluid Pressure | 8-10 lbs; adjust for a light stream flowing from the spray gun |
| Air Pressure | 30-50 lbs; adjust for good atomization |
| Curing Time | Leave resin casting in the pressure pot for the full curing time |
Explore related products
What You'll Learn
CFM depends on the spray gun used
When using a paint pressure pot, the CFM (cubic feet per minute) requirement depends on the spray gun being used. CFM is a measure of the airflow rate of the air compressor, and different spray guns have different CFM requirements.
Spray guns are almost universally compatible with any pressure pot, but the air compressor must be compatible with the spray gun. For example, if you have a spray gun with a CFM of 7, you will need a low-CFM air compressor that can supply at least 7 CFM. In this case, a Low CFM gun like the FE-LCFM from C.A. Technologies would be suitable.
On the other hand, if you are spraying water-based materials, which tend to be thicker than stains and oil-based materials, you will likely need to upgrade your air compressor to achieve the ideal finish. A CPR that can adapt between HVLP and Compliant (Pressure Reduced) is recommended in this case, as long as it can provide the required 11-13.5 CFM @ 29 PSI.
The CFM requirement also depends on the specific application and desired finish. For example, the pressure should typically be between 10-20 PSI for standard products and 20-30 PSI for primers, undercoaters, or house paint. Additionally, the tip size and fluid viscosity of the spray gun can affect the CFM requirement.
It is important to consider the capacity and compatibility of the air compressor with the spray gun to ensure sufficient airflow and avoid performance issues.
The Painting Franklin Admired in The Undoing
You may want to see also
Explore related products
CFM varies with paint type
When using a paint pressure pot, the CFM (cubic feet per minute) required will depend on the type of paint being used. Different paints have different viscosities and properties, which will impact the CFM necessary for effective spraying. For example, water-based paints tend to be thicker than stains and oil-based materials, requiring a higher CFM and possibly a more powerful air compressor for optimal results.
The CFM needed for a paint pressure pot can range from 7 CFM for a low CFM gun to 11-13.5 CFM for a CPR gun that adapts between HVLP and Compliant (Pressure Reduced). Most air compressors can reach up to 90-100 PSI, but for paint applications, a lower pressure range of 10-30 PSI is typically sufficient. The exact pressure will depend on the paint type and desired finish. For example, a typical house paint may require 10-20 PSI, while a primer or undercoater might need 20-30 PSI.
Additionally, the CFM required can be influenced by the spray gun used and its tip size. A larger tip size may require a higher CFM to achieve the desired flow rate. It is important to match the CFM of the gun with the air compressor to ensure optimal performance and avoid excessive overspray or orange peel.
The volume of paint used and the material of the pressure pot are also factors to consider. If spraying large volumes of paint, a larger pressure pot capacity may be preferable to avoid frequent refilling. For water-based paints, a stainless steel pressure pot is necessary to prevent corrosion.
In summary, the CFM required for a paint pressure pot can vary depending on the paint type, spray gun, tip size, volume of paint, and other factors. It is important to understand the properties of the paint and the equipment being used to ensure the optimal CFM and pressure settings for a successful painting project.
Glossy vs. Matte Paint: Understanding the Key Differences
You may want to see also
Explore related products
CFM and PSI are linked
When using a paint pressure pot, it is important to understand the relationship between CFM and PSI. CFM (cubic feet per minute) and PSI (pounds per square inch) are the two key measurements that determine the performance of air compressors and air-powered machinery. PSI measures the air pressure, while CFM measures the air volume or flow rate.
For example, an air compressor with a rating of 100 PSI can deliver 100 pounds of pressure per square inch. The higher the PSI, the more powerful the air compressor. However, it is important to note that using a higher PSI than what is required for a specific application can lead to erratic behaviour and equipment damage.
CFM, on the other hand, indicates the flow rate or volume of air that an air compressor can produce in one minute at a given pressure level. A compressor with a high CFM is ideal for larger applications, while smaller, mobile compressors with lower CFM are better suited for less demanding tasks.
The relationship between CFM and PSI is described by Boyle's Law, which states that the volume of a constant mass of ideal gas at a constant temperature is inversely proportional to the pressure applied to it. In simple terms, as pressure increases, the volume decreases, and vice versa.
When using a paint pressure pot, it is crucial to match the CFM and PSI requirements of the pot to the specifications of your air compressor. This ensures that you have sufficient airflow and pressure to operate the pot effectively and efficiently.
For instance, if you are using a spray gun that requires 7 CFM, you will need to pair it with a low CFM gun. On the other hand, if you are spraying water-based materials, you may need to upgrade your air compressor to achieve the desired finish.
Mandala Stone Painting: Should You Paint Both Sides?
You may want to see also
Explore related products
CFM and pot size are linked
When it comes to paint pressure pots, selecting the appropriate CFM (cubic feet per minute) is crucial, as it ensures the pot can be pressurised quickly enough before the paint starts to set. The CFM required will depend on the size of the pot and the type of paint being used. For instance, thicker, water-based materials will necessitate a higher CFM compared to stains and oil-based paints.
The CFM of an air compressor is influenced by the spray gun being utilised. Most compressors can reach up to 90-100 PSI, but such high pressure is not always necessary. Typically, a pressure of 10-20 PSI is adequate for standard paints, while thicker substances like primer or house paint require 20-30 PSI.
For a small paint pressure pot of 2 to 2.5 gallons, a compressor with 1.2 CFM @ 90 PSI should be sufficient. However, if you're working with a quick-setting resin like SmoothCast 326, you may need to consider a stronger compressor to ensure the pot is pressurised promptly.
The volume of paint you plan to use is another factor that links CFM and pot size. If you anticipate spraying a large quantity of paint, such as 10 gallons in a day, opting for a larger pot that accommodates this volume can streamline your workflow by eliminating the need for frequent refills.
Additionally, the material of the pressure pot comes into play. Stainless steel pots are recommended for water-based paints to prevent corrosion. On the other hand, if you're using a lacquer with a short shelf life, you should consider a pot that suits the paint's characteristics to avoid issues related to drying or thickening during idle periods.
Creating a Dot in MS Paint: A Simple Guide
You may want to see also
Explore related products
CFM and compressor capacity are linked
When using an air compressor for a paint pressure pot, it is important to consider the CFM (Cubic Feet per Minute) requirement to ensure optimal performance. CFM and compressor capacity are closely linked, as CFM measures the volume of air flowing into or out of the compressor per minute. This airflow rate is crucial in determining the compressor's ability to perform a task over time.
The CFM requirement for a paint pressure pot can vary depending on several factors, including the type of paint being used and the spray gun selected. For example, spraying water-based paint may require a higher CFM due to its thicker consistency compared to stains and oil-based materials. Additionally, different spray guns have varying CFM requirements, with some guns designed specifically for low CFM applications.
To determine the necessary CFM for a paint pressure pot, it is essential to consider the specific paint and equipment being used. The viscosity and drying characteristics of the paint can influence the CFM needs. For instance, paints with shorter shelf lives or those prone to thickening may require a higher CFM to prevent issues during application.
The spray gun chosen also plays a significant role in determining the CFM requirement. Each gun has unique CFM and PSI (Pounds per Square Inch) specifications, which must be met by the air compressor. PSI measures the pressure or force exerted by the compressor, while CFM measures the volume of air. Balancing these two factors ensures efficient performance and prevents issues like excessive overspray or inadequate atomization.
Calculating the CFM requirement for a paint pressure pot involves considering the paint's characteristics, the spray gun's specifications, and the desired finish quality. Online CFM calculators can aid in determining the optimal CFM for a specific setup. Additionally, understanding the actual CFM output of the compressor can help identify potential issues, optimize the compressed air system, and plan for future expansions or equipment additions.
In summary, CFM and compressor capacity are intrinsically linked, as the CFM requirement dictates the airflow rate necessary for the compressor to effectively power the paint pressure pot and achieve the desired results. By considering the paint properties, spray gun specifications, and desired finish, one can determine the appropriate CFM for a successful painting application.
Explore Yellow and Gray Upstairs: Paint Color Ideas
You may want to see also
Frequently asked questions
The CFM required for a paint pressure pot depends on the spray gun being used, the material being sprayed, and the air compressor's capacity.
Spray guns with lower CFM, such as the FE-LCFM from C.A. Technologies, are suitable for compressors with 7 CFM. For CPR guns that adapt between HVLP and Compliant (Pressure Reduced), a higher CFM of 11-13.5 @ 29 PSI is necessary.
Water-based materials are thicker than stains and oil-based materials, so they require a stronger air compressor for the ideal finish. For water-based paints, a stainless steel pressure pot is necessary to prevent corrosion.
The CFM required will depend on the compressor's PSI rating. Most compressors reach up to 90-100 PSI, but lower PSI settings may be preferred for specific applications, such as house paint, which typically uses 10-20 PSI.
