Setting up a paint booth at home can be a great way to create a clean and smooth painting space without getting paint everywhere. It is important to consider safety when constructing a paint booth at home, as the paint fumes are often toxic and the entire zone can be explosive under certain conditions. A paint booth can be constructed using PVC pipes, plastic sheeting, duct tape, a box fan, and filters for ventilation.
| Characteristics | Values |
|---|---|
| Purpose | Creating clean and smooth paint jobs without getting paint everywhere |
| Materials | PVC pipe, plastic sheeting, duct tape, box fan, filters, scissors, paper punch, zip ties, painter's tape, drop cloth, curtain rods, heavy-duty divider curtains |
| Safety Considerations | No electrical equipment inside the booth or within a few feet of the entrance; paint-laden air filters are highly flammable; remove and submerge filters in water after use |
| Airflow | Make holes in the structure, especially at the top; ensure significant airflow to prevent the sides from bowing |
| Lighting | Install lighting at the top exterior of the booth |
| Paint Type | Sherwin-Williams latex paint (suggested) |
Explore related products
What You'll Learn

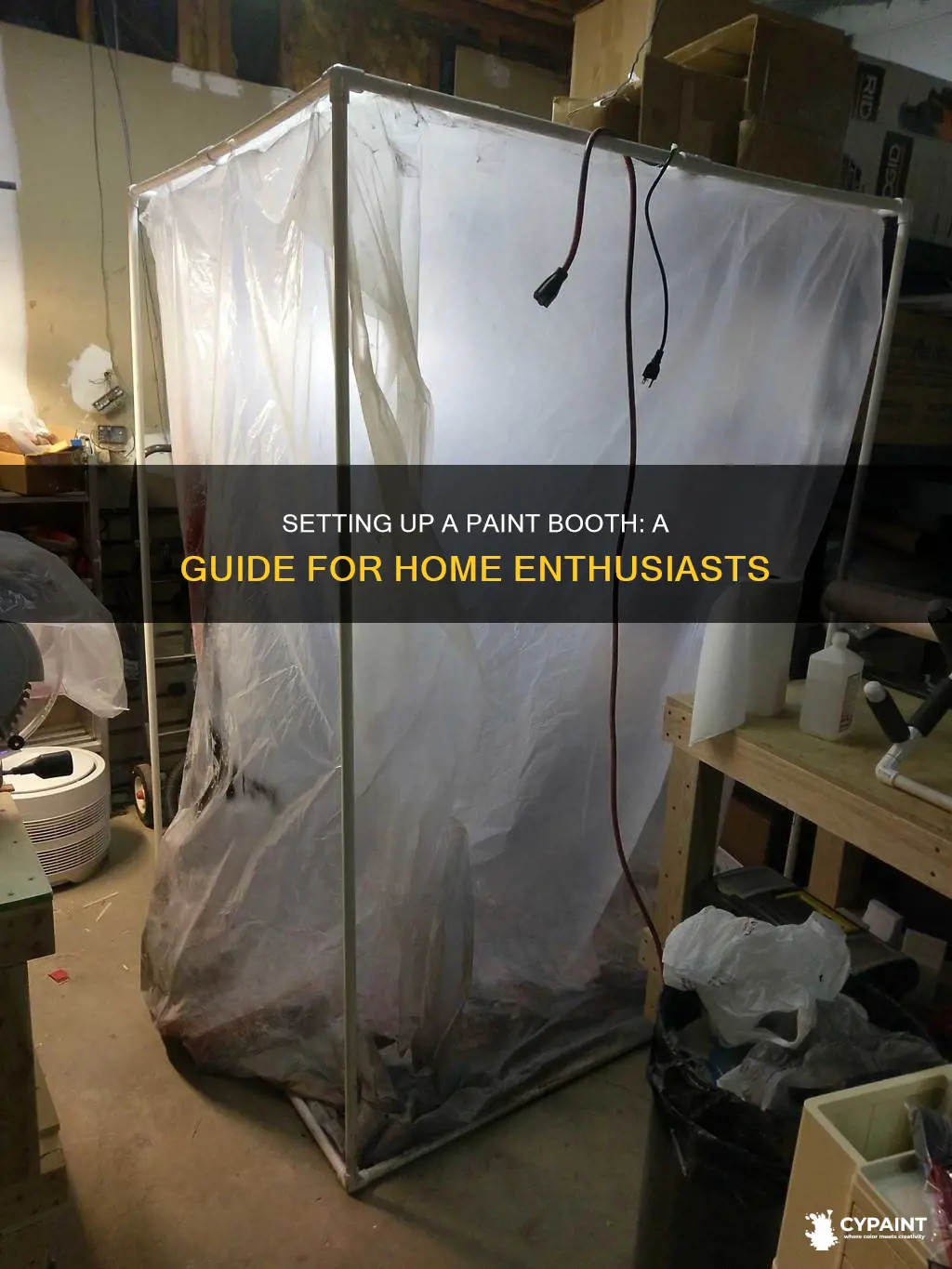

Construct a frame using PVC pipes, plastic sheeting, and duct tape
Constructing a paint booth frame using PVC pipes, plastic sheeting, and duct tape is a simple and effective way to create a paint booth at home. Here's a step-by-step guide on how to do it:
Start by gathering the necessary materials: PVC pipes, plastic sheeting, duct tape, scissors, and a box fan. You may also need additional items like a drop cloth, zip ties, and filters for ventilation and airflow. Plan out the dimensions of your paint booth frame to ensure it fits your space and meets your project needs. Keep in mind that the size of your booth will determine the size of your exhaust fan, so choose a fan that can effectively ventilate the paint fumes from your booth.
Begin constructing the frame by joining the PVC pipes together. You can use 90-degree elbows or T-connectors to create a stable structure. Cut the plastic sheeting to size, allowing for some overhang on the sides. Drape the plastic sheeting over the PVC frame, and use duct tape to secure it in place. Tape the edges of the plastic sheeting to the poles, sealing off the seams completely. Make sure to tape the plastic sheeting to itself and the poles on the front and back of the frame. Leave an opening in the front of the booth for entry and exit, which can be sealed tightly with clamps when painting.
Consider adding additional support to the frame if needed. For example, you can use horizontal support studs held in place with screws, as seen in one guide's setup. You can also use heavy-duty divider curtains that can be pulled open when in use and drawn shut when the booth is not in use, providing protection from paint overspray.
Finally, set up the ventilation system. Install filters on the top or back of the frame to help with airflow and reduce the risk of paint accumulation. Plan for airflow by making holes in the plastic sheeting or using corrugated plastic cardboard for better rigidity. Position the box fan inside or outside the booth, depending on its design, to draw out the fumes. Ensure any electrical equipment is a safe distance from the booth to prevent sparks that could cause an explosion.
By following these steps, you can construct a sturdy and functional paint booth frame using PVC pipes, plastic sheeting, and duct tape, creating a safe and effective space for your painting projects.
Crafting a Chess Board Table: Painting Guide
You may want to see also
Explore related products
Install an exhaust fan and air filters for ventilation
When setting up a paint booth at home, installing an exhaust fan and air filters is crucial for adequate ventilation and your safety. Here are the steps and considerations for this important process:
Firstly, determine the size of your exhaust fan based on the dimensions of your paint booth. A larger booth will require a more powerful fan to effectively remove paint fumes. An HVAC fan is a suitable option for larger booths as it is designed to push air through home ducting systems. If you already own an HVAC fan, ensure it is explosion-proof by modifying the fan housing. Remove any metal shield grids from the inlet side and mount a take-off using machine screws and duct tape. This will prevent the fan from being placed inside the booth and reduce the risk of explosions.
Next, create a frame to hold the air filters. Draft a simple design that provides ample filter area to capture paint overspray. Construct the frame using wall studs screwed into the outside of the booth. Utilise horizontal support studs to hold the frame in place. If your booth includes a shelf, ensure you add supports for it.
Now, it's time to divide the filter wall frame into segments. By using multiple individual filters instead of one large filter, you can rotate or replace them independently, improving efficiency and reducing costs. Calculate the number of segments by dividing the length of the stud frame by the desired number of filters. For example, dividing the frame into thirds allows for efficient rotation and replacement.
When selecting the filters, opt for a suitable variety, such as a 15-gram fiberglass arrestor, available from suppliers like Spray Booth Filter & Supply. Choose a roll length that ensures you won't need to repurchase frequently and a width that meets the requirements of your holding frames.
Finally, install the filters into the holding frames. Securely attach the filters to ensure they effectively capture paint overspray. Remember to replace or rotate the filters as they accumulate paint. Additionally, always remove used filters after painting, submerge them in water, and store them safely to reduce the risk of fire.
Baking Painted Glass: Oven-Safe Techniques for Beginners
You may want to see also
Explore related products
Create a doorway and ensure adequate airflow
Creating a doorway and ensuring adequate airflow are crucial aspects of setting up a paint booth at home. Here are some detailed instructions to help you achieve this:
Creating a Doorway
When constructing the paint booth, consider the placement of a doorway for easy access. The doorway should be positioned on the side of the booth closest to the door of your house or garage. This strategic location will allow for convenient entry and exit while minimising the impact on the airflow within the booth.
Ensuring Adequate Airflow
- Install a Box Fan: Place a box fan on the outside of the booth, positioning it high enough to clear the middle PVC pipe. Cut a hole in the plastic sheeting, almost the exact size of the fan. Seal the fan in place with tape, ensuring a tight seal. Face the fan towards the inside of the booth to create positive pressure and control airflow.
- Use Filters: Attach filters to the intake side of the box fan. These filters will help manage airflow and capture paint particles. Additionally, consider installing filters at the top of your paint booth to further enhance airflow and capture any rising paint particles.
- Create Airflow Holes: Punch or cut small holes in the plastic sheeting at the top or sides of the booth to allow for airflow. These holes should be carefully placed and sized to balance airflow and pressure while preventing an excessive build-up of paint-laden air inside the booth.
- Consider an Air Makeup Unit (AMU): Install an AMU to replace exhausted air, balance air pressure, and maintain a steady airflow. An AMU uses a blower fan to push replacement air into the booth, counteracting the negative pressure created by the exhaust fan. A heated AMU can also speed up the curing process by providing warm replacement air.
- Maintain Filters and Fans: Regularly check and clean or replace filters to prevent clogging, which can impact airflow and cause over-pressurisation in the booth. Ensure fans are functioning properly, as malfunctioning fans can disrupt airflow and affect the overall finish of your paint job.
By following these steps and paying close attention to airflow management, you can create a safe and effective paint booth setup at home. Remember to adjust and customise your setup based on your specific needs and the requirements of your spray booth system.
Taking Screenshots: Pasting into Paint in Easy Steps
You may want to see also
Explore related products
Use a drop cloth to protect the floor and seal gaps
When setting up a paint booth at home, it is important to protect the floor and seal any gaps to prevent paint from spreading outside the booth. Here are some detailed steps to achieve this:
First, lay down a drop cloth that is large enough to cover the entire floor of the paint booth. A 4 by 15 feet (1.2 by 4.6 meters) drop cloth is a suitable size for most booths. Ensure that the cloth is flat and smooth, without any creases or bubbles. Adjust the legs of the booth to be near-perpendicular to the ground, and then lift each leg one at a time to tuck the edges of the drop cloth underneath. Check that the drop cloth is securely in place and covers all corners of the booth.
Next, focus on sealing any gaps to prevent paint fumes and overspray from escaping. Use plastic sheeting to cover the inside of the booth, taping it securely to the corners and over the drop cloth. Duct tape is a good option for creating a tight seal. Overlap the sheets of plastic slightly at the joints and cover them with painter's tape for added protection. Make sure to seal off all seams and edges completely.
Additionally, consider using heavy-duty curtains that can be pulled shut when the booth is not in use. This provides an extra layer of protection and helps contain any paint overspray.
By following these steps, you can effectively protect your floor and seal gaps in your at-home paint booth, ensuring a cleaner and safer painting environment.
Washing Wallpaper: Safe Cleaning Before Painting
You may want to see also
Explore related products
Safety considerations: no electrical equipment and dispose of filters properly
Setting up a paint booth at home requires careful consideration of safety measures to protect yourself and your property. Here are some essential safety guidelines to follow when constructing and using a paint booth, specifically addressing the absence of electrical equipment and the proper disposal of filters:
No Electrical Equipment:
- Avoid electrical equipment and ignition sources: It is crucial to eliminate all sources of ignition from your paint booth setup. This includes electrical equipment, fixtures, and even something as simple as a radio. These items are considered ignition sources and pose a significant safety risk.
- Use non-electrical tools: When mixing paint, opt for non-electrical tools such as air-powered mixing drills. This reduces the risk of creating an ignition source.
- Ventilation and exhaust fans: Ensure adequate ventilation in your paint booth. When forced ventilation is not possible, wear approved respirators during painting. Exhaust fans should be made of nonferrous metal, and air ducts should be bonded and grounded to prevent the buildup of flammable vapors.
- Grounding and bonding: Properly ground and bond all metal and fabric-covered objects that could produce static charges before beginning any spray painting. This includes storage containers and metal objects within the paint booth.
- Fire safety: Keep suitable fire extinguishers nearby at all times. Consider installing overhead sprinkler systems in permanent paint booths for added fire safety.
Proper Disposal of Filters:
- Hazardous waste considerations: Paint booth filters capture overspray and can contain hazardous compounds. Before disposal, determine if your filters are considered hazardous waste. Notify your local trash company, as they may require proof that your filters do not contain hazardous compounds.
- Testing for hazardous compounds: If your paint contains certain compounds, perform a Toxicity Characteristic Leaching Program (TCLP) test to determine the presence and volume of hazardous compounds in your filters. Work with an accredited lab to ensure accurate testing.
- Documentation and regulation compliance: Keep detailed records of your processes, including Material Safety Data Sheets (MSDS), lab tests, and disposal receipts. Stay informed about state regulations and sanitary landfill acceptability limitations, as these may differ from federal guidelines.
- Submerging filters: After painting, remove the used filters and submerge them in water to reduce the risk of fire. This is especially important if your paint is catalysed, as it may cause the filters to self-ignite.
- Alternative filter materials: Consider using paper or polyester filter media. These filters can often be disposed of as non-hazardous waste in sanitary landfills, whereas fiberglass filters are typically classified as hazardous waste.
How to Avoid Roller Marks in Paint
You may want to see also
Frequently asked questions
You will need a PVC pipe, plastic sheeting, duct tape, a box fan, and filters for ventilation.
First, create a frame out of the PVC pipe. Then, cover the frame with the plastic sheeting and secure it with duct tape. Make sure to create a structure for the box fan and filters to ensure proper ventilation.
It is important to ensure that there is no electrical equipment inside the booth or within close proximity to it, as the paint fumes can be highly flammable. Additionally, always use a respirator when painting to protect yourself from toxic fumes.
Once you are done painting, remove the used filters and submerge them in water to reduce the risk of fire. Clean up any paint spills or residue using appropriate solvents and dispose of waste properly.
