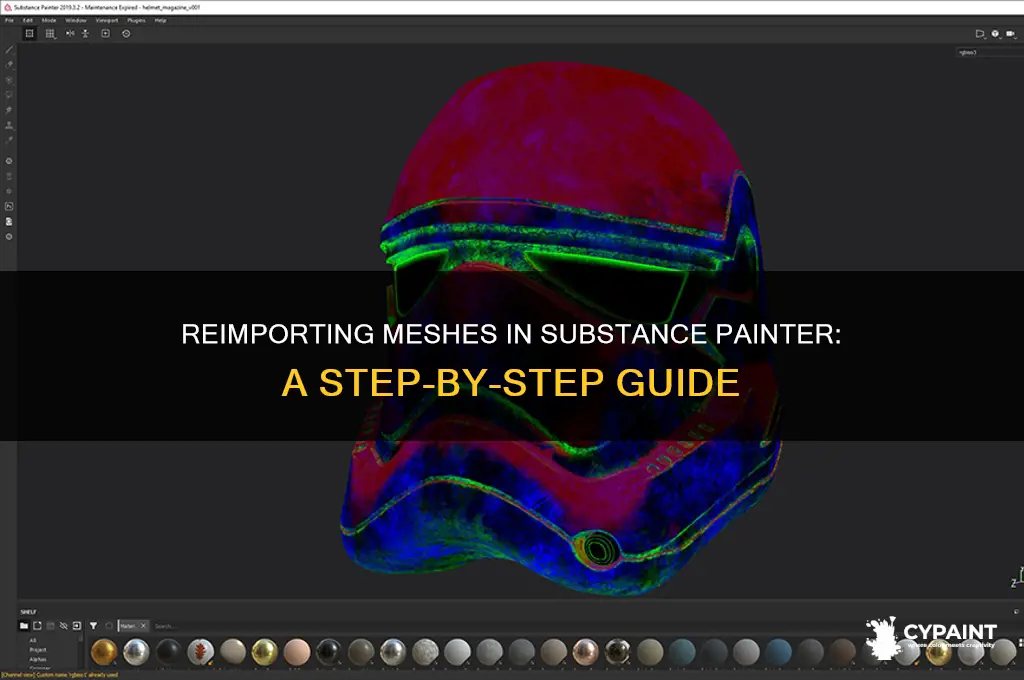

Reimporting Meshes In Substance Painter: A Step-By-Step Guide

Reimporting a mesh in Substance Painter is a crucial step when updating or modifying your 3D model after initial import. This process allows you to seamlessly integrate changes made in your modeling software, such as Maya, Blender, or 3ds Max, without losing existing textures or material assignments. To reimport a mesh, start by selecting the model in the shelf, then navigate to the Mesh menu and choose Reimport. Ensure your updated mesh file is saved in the same location as the original or specify the new file path. Substance Painter will automatically update the geometry while preserving UV maps and texture projections, streamlining your workflow and maintaining consistency in your texturing project.

Explore related products

Trimaco 11523/12 Strong Nylon Mesh Paint Strainer With Elastic Top, 5 Gallon

$10.01

Monster Energy Import, Energy Drink, 18.6 Ounce (Pack of 12)

$49.99

TCM Imports: Timeless Favorites and Hidden Gems of World Cinema (Turner Classic Movies)

$25.51 $27.99

Greatest Hits I

$34.38 $35.98

Valvoline Import Multi-Vehicle (ATF) Full Synthetic Automatic Transmission Fluid 1 GA

$34.99

The World for Sale: Money, Power, and the Traders Who Barter the Earth's Resources

$16.48 $14.95

Prepare Mesh for Reimport: Ensure mesh is clean, UVs are correct, and textures are updated before reimporting

A clean mesh is the foundation of a successful reimport in Substance Painter. Think of it like repainting a wall – you wouldn’t want old chips, cracks, or uneven surfaces messing up your new coat. Similarly, a mesh riddled with unnecessary vertices, overlapping faces, or non-manifold geometry will cause issues during reimport. Use your 3D modeling software to meticulously clean your mesh before bringing it back into Substance Painter. Tools like "Merge Vertices," "Remove Doubles," and "Clean Up" are your allies in this process.

A common pitfall is neglecting UVs during the reimport process. Imagine trying to wrap a textured sheet around a crumpled ball – it wouldn’t fit properly. Ensure your UVs are laid out cleanly, with minimal distortion and adequate pixel density for your desired texture resolution. Substance Painter relies heavily on UVs to map textures onto your mesh, so any errors here will translate directly into visual glitches. Double-check for overlapping UV islands, flipped normals, and proper seam placement before reimporting.

Outdated textures can lead to inconsistencies and visual artifacts after reimporting. If you’ve made changes to your textures outside of Substance Painter, ensure they are saved in the correct format (usually PNG or TGA) and are located in the same directory as your original project files. Substance Painter relies on file paths to locate textures, so any discrepancies will result in broken links and missing textures. Consider using a project management system to keep track of texture updates and ensure everything is synchronized before reimporting.

Remember, preparing your mesh for reimport is an investment in the quality of your final textured asset. Taking the time to clean your mesh, optimize UVs, and update textures will save you countless headaches down the line. A well-prepared mesh ensures a seamless reimport process, allowing you to focus on the creative aspects of texturing without being bogged down by technical issues.

Explore related products

Castrol Transmax Import Multi-Vehicle Automatic Transmision Fluid, 1 Quart, Pack of 6

$37.81

R for Data Science: Import, Tidy, Transform, Visualize, and Model Data

$48.49 $79.99

World War Z

$13.49

Castrol Transmax Import Multi-Vehicle Automatic Transmission Fluid, 1 Quart

$12.03

Time goes by... Hiroshi Nagai Art Works Collection (New Edition) [Japan Import]

$39

Import / Export Kit For Dummies

$16.59 $29.99

Export Settings in DCC Tool: Use proper export settings (OBJ, FBX) to maintain mesh integrity for Substance Painter

Maintaining mesh integrity during the reimport process in Substance Painter begins with meticulous export settings in your Digital Content Creation (DCC) tool. Whether you're using OBJ or FBX formats, the choices you make here directly impact the fidelity of your mesh. For OBJ exports, ensure you include normals, UVs, and material groups to preserve critical surface details. FBX, on the other hand, offers more flexibility with embedded textures and animation data, but be cautious—overloading an FBX file can lead to bloated imports that slow down Substance Painter. The key is to strike a balance between data retention and file efficiency.

When exporting to FBX, pay close attention to the Include > Geometry and Include > Media options in your DCC tool. Enabling Geometry ensures mesh data is retained, while Media allows you to embed textures if needed. However, avoid embedding high-resolution textures directly into the FBX, as this can cause unnecessary strain on Substance Painter’s memory. Instead, export textures separately and link them within the software. For OBJ, simplicity is your ally—stick to exporting only the essential components like UV maps and normals, as OBJ does not support material or texture embedding.

A common pitfall is neglecting to freeze transformations or apply modifiers before exporting. In tools like Blender or Maya, unapplied transformations can distort your mesh upon reimport into Substance Painter. Always ensure your mesh is in its final, desired state before exporting. Additionally, consider the scale settings in your DCC tool—mismatches between the export scale and Substance Painter’s import scale can lead to disproportionate models. A consistent scale factor, such as 1 unit = 1 meter, is recommended for seamless transitions.

For artists working with complex scenes, the Triangulate Faces option during FBX export can be a lifesaver. This converts all quadrilateral faces into triangles, which Substance Painter handles more efficiently. However, triangulation can alter the smoothness of your mesh, so use it judiciously. If your mesh relies heavily on smooth shading, consider exporting as OBJ, which preserves edge data better than FBX. Each format has its strengths, and choosing the right one depends on your project’s specific needs.

Finally, test your export settings with a small section of your mesh before committing to a full export. This trial run allows you to identify potential issues, such as missing UVs or inverted normals, without wasting time on a large, flawed file. Once you’ve refined your settings, document them for future projects—consistency in export workflows ensures smoother reimports and reduces troubleshooting time. By mastering these export settings, you’ll maintain mesh integrity and streamline your texturing process in Substance Painter.

Explore related products

Capcom Okami HD (Import)

$30.4

Rare Exports: A Christmas Tale

$2.99

Carnegie Hall (Import, All Regions)

$11

Update Mesh in Painter: Replace the mesh via the Shelf or Import menu, preserving existing materials and textures

In Substance Painter, updating a mesh while preserving existing materials and textures is a critical workflow for iterative design processes. Whether you’re refining a model in your 3D software or addressing topological changes, the ability to replace the mesh via the Shelf or Import menu ensures continuity in your texturing project. This method avoids the tedious task of reapplying materials and textures from scratch, saving time and maintaining consistency.

To begin, locate the mesh you wish to update in the Shelf, which acts as a repository for your project’s assets. Right-click on the mesh thumbnail and select *Replace Mesh*. Alternatively, navigate to the *Import* menu in the top toolbar, choose *Replace Mesh*, and select the updated file from your directory. Substance Painter will prompt you to confirm the replacement, ensuring you don’t accidentally overwrite the wrong asset. This process is intuitive but requires precision to avoid errors.

One of the standout features of this method is its ability to preserve UV mapping and material assignments. Provided the new mesh shares the same UV layout as the original, Substance Painter automatically retains all existing textures, masks, and material properties. However, if the UVs have changed, you may need to manually realign textures or adjust material projections. For best results, ensure the updated mesh maintains consistent UV islands and density to minimize post-import adjustments.

A practical tip for seamless updates is to name your mesh files consistently, using version numbers or timestamps (e.g., *Character_v02.fbx*). This practice simplifies file selection during the replacement process and helps track changes across iterations. Additionally, always back up your Substance Painter project before replacing a mesh, as this safeguards against unintended data loss or corruption.

In conclusion, updating a mesh in Substance Painter via the Shelf or Import menu is a powerful tool for maintaining workflow efficiency. By preserving materials and textures, it bridges the gap between 3D modeling and texturing, allowing artists to focus on creative refinement rather than repetitive tasks. Master this technique, and you’ll streamline your pipeline, ensuring smoother transitions between modeling and texturing stages.

Fix UV Issues: Reapply UVs or re-bake maps if UVs are distorted or missing after reimporting

UV issues can derail your texturing workflow in Substance Painter, especially after reimporting a mesh. Distorted or missing UVs result in misaligned textures, broken details, and a generally unusable asset. Before panicking, understand that this is a common problem with a systematic solution: reapplying UVs or re-baking maps.

Distorted UVs often stem from changes in the mesh's geometry during reimport. Scaling, smoothing, or even minor adjustments can disrupt the original UV layout. Missing UVs usually indicate a failure in the import process, where the UV data wasn't transferred correctly. Both scenarios require intervention to restore the crucial link between your 3D model and its textures.

Diagnosing the Problem: Begin by inspecting your UV layout in Substance Painter's UV Editor. Look for stretched, overlapping, or fragmented islands. Compare this to the original UV layout (if available) to pinpoint the distortions. If entire UV shells are absent, you're dealing with a missing UV issue.

Reapplying UVs: This is the preferred solution when the original UV layout was adequate. Most 3D modeling software offers UV unwrapping tools. Re-export your mesh from your modeling software, ensuring the UVs are correctly generated and included in the export. Reimport the mesh into Substance Painter, overwriting the problematic version. This should restore the original UV layout.

Re-baking Maps: If reapplying UVs isn't feasible or desirable, consider re-baking your texture maps. This involves generating new maps (like normals, AO, and curvature) based on the current mesh geometry. Substance Painter's Bake Maps tool simplifies this process. However, be aware that re-baking can alter the look of your textures, especially if the mesh geometry has significantly changed.

Preventative Measures: To minimize UV issues during reimport, maintain consistency in your workflow. Use the same export settings, including UV options, across all iterations of your mesh. Consider using a dedicated UV mapping software for complex models to ensure optimal UV layouts from the outset.

Reapply Textures: Link updated textures to the reimported mesh using the Texture Set settings in Painter

After reimporting a mesh in Substance Painter, the textures may no longer align correctly due to changes in UVs or mesh structure. To restore the visual integrity of your project, you must reapply textures by linking updated texture maps to the reimported mesh. This process leverages the Texture Set settings in Painter, ensuring that new or modified textures are accurately mapped to the updated geometry.

Begin by selecting the reimported mesh in the 3D viewport. Navigate to the Texture Set list in the left-hand panel and identify the texture set associated with the mesh. Right-click on the texture set and choose "Edit Textures" to access the Texture Set settings. Here, you’ll find a list of texture maps (e.g., Base Color, Normal, Roughness) linked to the mesh. If you’ve updated these textures externally, click on each map and use the file browser to locate and select the new texture files. Painter will automatically update the links, ensuring the reimported mesh reflects the latest texture changes.

A critical step in this process is verifying UV alignment. Even with updated textures, misaligned UVs can cause artifacts or incorrect mapping. Use Painter’s 2D view to inspect the UV layout and ensure it matches the updated mesh’s UV islands. If discrepancies exist, consider re-exporting the UVs from your modeling software or adjusting the texture projection in Painter. For complex meshes, enabling the "Use Mesh Maps" option can help maintain consistency between the original and reimported UVs.

Practical tips include organizing texture files in a dedicated folder to streamline the re-linking process. Name updated textures consistently (e.g., "Character_BaseColor_v2.png") to avoid confusion. If working in a team, document texture updates in a shared log to ensure everyone uses the correct files. Additionally, use Painter’s "Bake Textures" feature as a fallback if re-linking fails, though this is more time-consuming and should be reserved for troubleshooting.

In conclusion, reapplying textures to a reimported mesh in Substance Painter is a precise task that hinges on correctly linking updated texture maps via the Texture Set settings. By methodically updating each map, verifying UV alignment, and following organizational best practices, you can maintain the visual fidelity of your project without starting from scratch. This process not only saves time but also ensures consistency across iterations, making it an essential skill for any 3D artist working with dynamic assets.

Frequently asked questions
