Isabella Flores

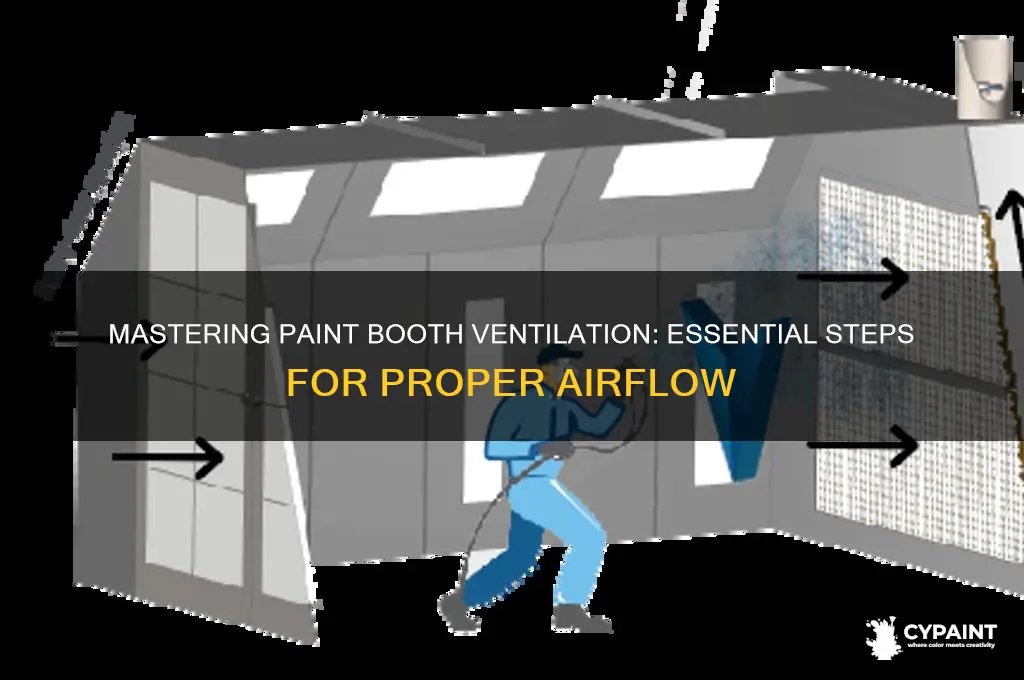

Properly venting a paint booth is essential for ensuring a safe, efficient, and high-quality painting environment. Effective ventilation removes hazardous fumes, overspray, and contaminants, protecting both the operator and the finished product. A well-ventilated booth maintains optimal air pressure, temperature, and humidity levels, which are critical for achieving consistent paint application and curing. Key components of a proper venting system include a powerful exhaust fan, strategically placed intake filters, and a balanced airflow design to prevent dust or debris from entering the workspace. Regular maintenance, such as cleaning filters and inspecting ductwork, is also crucial to ensure the system operates at peak efficiency. By following industry standards and best practices, businesses can maximize safety, compliance, and productivity in their paint booth operations.
Explore related products
What You'll Learn
- Exhaust Fan Placement: Ensure fans are positioned to create optimal airflow, removing fumes and particles efficiently
- Filter Maintenance: Regularly replace intake and exhaust filters to prevent clogs and maintain air quality
- Ductwork Design: Use smooth, properly sized ducts to minimize airflow resistance and maximize ventilation
- Airflow Balance: Maintain positive pressure to prevent contaminants from entering the booth during operation
- Compliance Checks: Follow local codes and OSHA standards for safe and legal paint booth ventilation
Exhaust Fan Placement: Ensure fans are positioned to create optimal airflow, removing fumes and particles efficiently
Strategic exhaust fan placement is critical to achieving efficient fume and particle extraction in a paint booth. Improper positioning can lead to stagnant air pockets, uneven airflow, and inadequate contaminant removal, compromising both paint quality and worker safety. The goal is to create a balanced system where air enters smoothly, circulates uniformly, and exits without recirculating contaminants.
To achieve this, position exhaust fans at the opposite end of the booth from the air intake. This linear arrangement maximizes the distance air must travel, ensuring thorough mixing and capture of airborne particles. For example, in a cross-flow booth, place the exhaust fan at the downstream end, directly across from the filtered air supply. This setup mimics natural airflow patterns, reducing turbulence and promoting consistent extraction.
Fan size and capacity must align with booth dimensions and intended use. A general rule of thumb is to achieve 100–120 air changes per hour (ACH) for most automotive paint booths, though high-production environments may require up to 150 ACH. Oversized fans can create excessive noise and energy consumption, while undersized units fail to maintain negative pressure, allowing fumes to escape. Use a pitot tube or airflow meter to verify fan performance and adjust placement or size as needed.
Consider the direction of fan blades and housing design to optimize airflow patterns. Backward-inclined blades, for instance, offer higher efficiency and quieter operation compared to radial blades, making them ideal for larger booths. Additionally, install ductwork with minimal bends and smooth transitions to reduce friction loss. A well-designed exhaust system should maintain a consistent velocity of 1,000–1,500 feet per minute (fpm) in the duct to prevent particle buildup.
Finally, incorporate adjustable louvers or dampers to fine-tune airflow and address specific booth conditions. For instance, in booths with varying project sizes, adjustable exhaust vents allow operators to direct airflow toward the source of contaminants. Regularly inspect fan placement and performance, especially after booth modifications or filter changes, to ensure long-term efficiency. Proper exhaust fan positioning isn’t just about compliance—it’s about creating a safer, more productive painting environment.
Exploring the Art of Paint Scraping Techniques
You may want to see also
Explore related products
Filter Maintenance: Regularly replace intake and exhaust filters to prevent clogs and maintain air quality
Clogged filters are the silent saboteurs of paint booth efficiency. Intake filters capture dust, debris, and overspray, while exhaust filters trap paint particles before they escape. Over time, this accumulation restricts airflow, forcing the ventilation system to work harder and reducing its effectiveness. The result? Poor air quality inside the booth, increased energy consumption, and a higher risk of contaminants ruining your paint job.
Regular filter replacement is the antidote to this slow-burning crisis.
Think of filters as the lungs of your paint booth. Just as healthy lungs require clean air, your booth needs unobstructed filters to function optimally. Intake filters, typically made of pleated paper or synthetic media, should be replaced every 3-6 months, depending on usage and the environment. Exhaust filters, often fiberglass or polyester, generally last 6-12 months. Don't wait for visible signs of clogging – by then, damage is already done. Implement a preventative maintenance schedule based on your booth's usage and environmental factors.
For example, booths in dusty locations or those used for high-volume production will require more frequent filter changes.
The cost of neglecting filter maintenance far outweighs the price of replacement filters. Clogged filters lead to increased energy bills as the system struggles to maintain airflow. Worse, they compromise the quality of your paint finish. Contaminants pulled through clogged filters can mar the surface, leading to costly rework and dissatisfied customers. Investing in regular filter changes is a small price to pay for consistent results and a longer lifespan for your paint booth equipment.
Consider it an insurance policy for your reputation and your bottom line.
Remember, filter replacement is a straightforward task that doesn't require specialized skills. Most booths have accessible filter housings, allowing for quick and easy changes. Consult your booth's manual for specific instructions and recommended filter types. By making filter maintenance a priority, you ensure your paint booth operates at peak performance, delivering flawless finishes and protecting both your work and your workers.
Creative Tips for Painting a Ball of Yarn Like a Pro
You may want to see also
Explore related products
Ductwork Design: Use smooth, properly sized ducts to minimize airflow resistance and maximize ventilation
Smooth, properly sized ducts are the unsung heroes of efficient paint booth ventilation. Imagine a highway during rush hour: bottlenecks and sharp turns slow traffic to a crawl. Similarly, ducts with rough interiors, sharp bends, or incorrect diameters create airflow resistance, starving your booth of the consistent, high-volume airflow needed to capture overspray and fumes effectively. This inefficiency not only compromises air quality but also increases energy consumption as fans struggle to compensate.
Designing ductwork begins with sizing. The diameter of your ducts should align with the booth’s required airflow volume, typically measured in cubic feet per minute (CFM). A common rule of thumb is to maintain a duct velocity between 1,500 and 2,500 feet per minute (fpm) for optimal efficiency. Oversized ducts reduce velocity, leading to settling of paint particles, while undersized ducts increase resistance and noise. Use duct calculators or consult HVAC professionals to ensure precise sizing based on your booth’s dimensions and airflow needs.
Smoothness is equally critical. Ducts with rough interiors, seams, or joints act like speed bumps, disrupting airflow and increasing static pressure. Opt for spiral or longitudinally seamed ducts with minimal interior ridges. If using rectangular ducts, ensure corners are rounded to reduce turbulence. For existing systems, inspect ducts for rust, debris, or damage, and repair or replace as needed. Even small obstructions can significantly impair performance.
Material selection also plays a role. Galvanized steel is a popular choice for its durability and smooth finish, but it must be installed with care to avoid sharp edges. Flexible ducts, while easier to install, can collapse or kink, restricting airflow. If flexible ducts are necessary, choose high-quality, reinforced options and ensure they’re properly supported to maintain their shape.
Finally, consider the layout. Ducts should follow the path of least resistance, with gradual bends (ideally no less than 2 feet in radius for every inch of duct diameter) and minimal turns. Avoid 90-degree elbows whenever possible; use mitered or curved fittings instead. Properly designed ductwork not only maximizes ventilation efficiency but also extends the life of your fan and filter systems by reducing strain.
In essence, ductwork design is a balance of science and precision. By prioritizing smooth, correctly sized ducts, you ensure your paint booth operates at peak performance, protecting both your work environment and your bottom line.
Mastering Paint Cooling Techniques in After Effects: A Step-by-Step Guide
You may want to see also
Explore related products
Airflow Balance: Maintain positive pressure to prevent contaminants from entering the booth during operation
Maintaining positive pressure within a paint booth is critical to ensuring a clean, contaminant-free environment for high-quality finishes. Positive pressure occurs when the air supply exceeds the exhaust, creating a slight outward force at the booth’s openings. This outward flow acts as a barrier, preventing dust, debris, and other airborne particles from infiltrating the workspace. Without this balance, external contaminants can compromise the paint job, leading to imperfections such as dust nibs or uneven finishes. Achieving this requires precise calibration of both intake and exhaust systems, ensuring the booth operates as a sealed, self-contained unit.
To establish positive pressure, start by assessing the booth’s airflow dynamics. Measure the volume of air entering through the intake filters and compare it to the volume exiting via the exhaust system. A common rule of thumb is to maintain a 10–15% higher airflow on the supply side than the exhaust. For example, if the exhaust fan moves 10,000 cubic feet per minute (CFM), the intake should deliver 11,000–11,500 CFM. Use an anemometer to verify airflow rates and adjust dampers or fan speeds accordingly. Regularly inspect filters for clogging, as restricted intake airflow can disrupt the pressure balance.
One practical tip is to install pressure gauges at key points in the booth to monitor differential pressure in real time. Aim for a positive pressure of 0.05–0.10 inches of water column (in. w.c.) relative to the surrounding environment. This range ensures contaminants are repelled without causing excessive air leakage or energy waste. Additionally, consider using variable frequency drives (VFDs) on fans to fine-tune airflow and maintain consistent pressure levels, especially during fluctuating environmental conditions.
While positive pressure is essential, overdoing it can lead to inefficiencies. Excessive pressure may force air through unintended gaps or openings, wasting energy and potentially creating turbulence within the booth. Conversely, insufficient pressure leaves the booth vulnerable to contaminants. Striking the right balance requires ongoing monitoring and adjustments, particularly during seasonal changes or when using different painting materials. For instance, heavier coatings may require higher airflow to manage solvent fumes, but this should not compromise the pressure differential.
In conclusion, maintaining positive pressure in a paint booth is a delicate but achievable task that hinges on precise airflow management. By measuring, monitoring, and adjusting intake and exhaust systems, operators can create a contaminant-free environment that ensures superior paint finishes. Regular maintenance, such as filter replacements and system checks, is equally vital to sustain this balance over time. Master this aspect of ventilation, and the booth becomes a reliable tool for delivering consistent, professional results.
Unveiling the Secrets of Visual Art Analysis
You may want to see also
Explore related products
Compliance Checks: Follow local codes and OSHA standards for safe and legal paint booth ventilation
Local regulations and OSHA standards aren't mere suggestions—they're the backbone of safe and legal paint booth operation. Ignoring them risks fines, shutdowns, and, most critically, the health of your workers. Start by identifying your jurisdiction's specific codes, often found in building or fire safety regulations. These typically dictate minimum airflow requirements, exhaust system design, and filter specifications. For instance, OSHA's 29 CFR 1910.107 requires that spray booths have an exhaust system capable of maintaining a minimum of 100 feet per minute (fpm) airflow through the booth's front opening. This isn't a one-size-fits-all rule; booth size, paint type, and application frequency influence compliance.
Beyond airflow, OSHA mandates regular maintenance and inspection of ventilation systems. Filters must be replaced when pressure drop exceeds 2-3 inches of water column, and exhaust ducts should be inspected annually for obstructions or damage. Local codes may add layers, such as requiring explosion-proof motors in booths handling flammable materials or mandating specific distances between the booth and property lines. A common oversight is neglecting to install a makeup air system, which balances the air removed by the exhaust to prevent negative pressure and ensure proper airflow. Without this, even a well-designed exhaust system can fail to meet standards.
Consider the case of a small auto body shop fined $30,000 for non-compliance after a fire sparked by inadequate ventilation. Their booth met OSHA's airflow minimum but lacked a proper explosion-proof exhaust fan, a local code requirement. This example underscores the importance of cross-referencing both OSHA and local regulations. Tools like OSHA's *Small Business Handbook* and local building department consultations can clarify ambiguities. For instance, while OSHA focuses on worker safety, local codes often address community impact, such as volatile organic compound (VOC) emissions.
To streamline compliance, create a checklist tailored to your setup. Include items like verifying airflow with an anemometer, inspecting ductwork for leaks, and ensuring filters are rated for your paint types. Document all maintenance and inspections—OSHA requires records for at least one year, but some local codes extend this to three. Finally, train staff to recognize signs of ventilation failure, such as paint fog or solvent odors lingering in the booth. Compliance isn't a one-time task but an ongoing commitment to safety and legality.
Indoor Washing Machine Painting: Tips for a Smooth, DIY Finish
You may want to see also
Frequently asked questions
Venting a paint booth is essential for removing hazardous fumes, overspray, and contaminants from the air, ensuring a safe working environment for operators and maintaining high-quality paint finishes by preventing dust and debris from settling on surfaces.
Calculate the required airflow based on the booth's size and the type of painting operations. A general rule is to achieve 100-120 air changes per hour for most applications. Consult the booth manufacturer or an HVAC specialist for precise calculations.
Use a properly sized exhaust fan or blower that meets the calculated airflow requirements. Ensure the system includes filters to capture overspray and a duct system that directs contaminated air safely outside, away from building intakes and occupied areas.
Replace filters regularly, typically when they become visibly clogged or when airflow is noticeably reduced. Frequency depends on usage, but it’s common to inspect filters daily and replace them weekly or monthly in high-volume operations.
Yes, comply with local, state, and federal regulations, such as OSHA standards and NFPA codes. Ensure proper ventilation to maintain flammable vapor concentrations below safe limits, and install explosion-proof equipment if handling flammable materials. Regularly inspect and maintain the system to ensure compliance.
