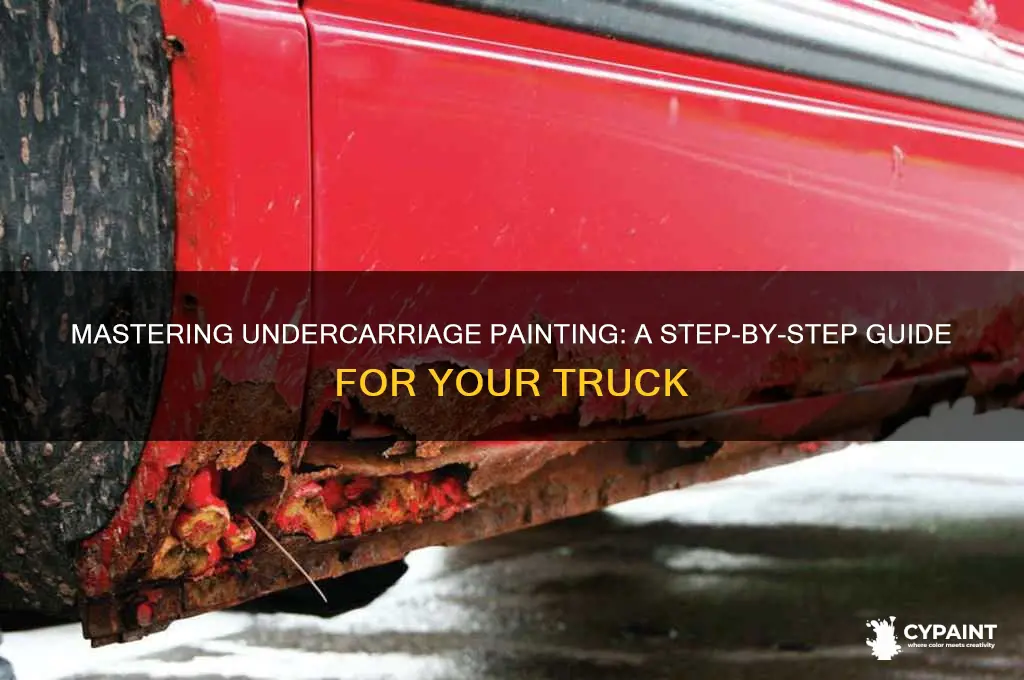

Painting the undercarriage of a truck is a crucial step in maintaining its longevity and protecting it from rust, corrosion, and road debris. This often-overlooked area is constantly exposed to harsh elements, including moisture, salt, and gravel, which can accelerate wear and tear. To begin, ensure the truck is safely elevated on jack stands or ramps, allowing easy access to the undercarriage. Thoroughly clean the surface using a pressure washer or degreaser to remove dirt, grease, and old paint. Apply a rust-inhibiting primer to any areas showing signs of corrosion, followed by a high-quality undercoating or rubberized spray designed to withstand extreme conditions. Use even strokes and multiple thin coats to achieve a smooth, durable finish, and allow ample drying time between layers. Proper preparation and the right materials are key to ensuring the undercarriage remains protected and extends the life of your truck.
| Characteristics | Values |
|---|---|
| Preparation | Thorough cleaning (pressure washing, degreasing), rust removal (sanding, wire brushing, chemical treatment), surface etching (phosphoric acid), priming (rust-inhibiting primer) |
| Paint Type | Oil-based rust-preventative paint, epoxy-based undercoating, rubberized undercoating, asphalt-based undercoating |
| Application Method | Spray painting (aerosol cans, paint sprayer), brush painting, roller painting |
| Drying Time | Varies by paint type (typically 2-4 hours between coats, 24-48 hours for full cure) |
| Safety Precautions | Wear protective gear (gloves, respirator, eye protection), work in well-ventilated area, avoid open flames or sparks |
| Maintenance | Regular inspections for chips or damage, touch-ups as needed, reapplication every 2-5 years depending on conditions |
| Cost | $50-$200 (DIY), $200-$600 (professional) depending on materials and labor |
| Difficulty Level | Moderate (requires attention to detail and proper preparation) |
| Tools Required | Pressure washer, wire brush, sandpaper, paint sprayer/brushes, safety gear, rust remover, primer, paint |
| Environmental Impact | Use environmentally friendly products, dispose of waste properly, avoid overspray |
| Benefits | Rust prevention, corrosion resistance, improved vehicle longevity, enhanced appearance |
| Common Mistakes | Insufficient cleaning, skipping primer, applying paint too thickly, not allowing proper drying time |
Explore related products
What You'll Learn
- Preparation: Clean, degrease, and sand the undercarriage to ensure proper paint adhesion
- Rust Treatment: Apply rust converter or primer to prevent corrosion
- Priming: Use a high-quality rust-inhibiting primer for a durable base coat
- Painting: Apply undercoat paint evenly with a sprayer or roller
- Sealing: Finish with a clear coat to protect against moisture and debris
Preparation: Clean, degrease, and sand the undercarriage to ensure proper paint adhesion
The undercarriage of a truck is a battleground for dirt, grease, and corrosion. Before any paint touches metal, this grime must be vanquished. Think of it as preparing a canvas: a clean, degreased, and sanded surface ensures the paint adheres like a second skin, not a temporary bandage.
Skip this step, and your paint job will peel faster than a banana in a heatwave.
Cleaning is the first line of defense. A pressure washer, wielded with the precision of a surgeon, blasts away loose dirt and debris. For stubborn grime, a degreaser becomes your ally. Opt for a heavy-duty, water-based degreaser, applied generously and allowed to dwell for 10-15 minutes. Scrub with a stiff brush, targeting crevices and hidden corners where grease loves to lurk. Rinse thoroughly, ensuring no residue remains – leftover degreaser can sabotage paint adhesion.
Think of it as washing away the sins of the road, leaving a blank slate for transformation.
Sanding, the final act of preparation, is both art and science. Choose a grit that matches the undercarriage's condition: 80-grit for rust and heavy corrosion, graduating to 120-grit for smoother surfaces. Sand in even strokes, creating a uniform texture that resembles fine sandpaper. This roughened surface provides the paint with something to grip onto, like tiny anchors securing a ship. Remember, consistency is key – uneven sanding leads to uneven paint application.
Imagine you're sculpting the metal, preparing it to embrace its new, colorful destiny.
This meticulous preparation, though time-consuming, is the foundation of a durable undercarriage paint job. It's the difference between a fleeting cosmetic fix and a long-lasting shield against the elements. Think of it as an investment in your truck's future, ensuring it rolls down the road with both style and resilience.
Safety Cone Paint Code: All You Need to Know
You may want to see also
Explore related products
$17.99
Rust Treatment: Apply rust converter or primer to prevent corrosion
Rust is the silent enemy of any vehicle's undercarriage, especially trucks that endure harsh conditions. Left untreated, it spreads like a cancer, compromising structural integrity and leading to costly repairs. Before applying paint, addressing existing rust is crucial. This is where rust converters and primers come into play, acting as the first line of defense against further corrosion.
Rust converters, typically phosphoric acid-based solutions, chemically transform rust into a stable, paintable surface. They penetrate deeply, neutralizing the rust and creating a protective barrier. Popular brands like Rust-Oleum and POR-15 offer converters suitable for various rust severity levels. Application is straightforward: clean the affected area thoroughly, apply the converter with a brush or spray, and allow it to dry completely. The rust will turn black, indicating successful conversion.
Primers, on the other hand, act as a physical barrier, sealing the surface and preventing moisture from reaching the metal. Epoxy and urethane primers are excellent choices for undercarriage protection due to their durability and resistance to chemicals and abrasion. When using primer, ensure the surface is clean and dry. Apply a thin, even coat, allowing it to dry before applying subsequent coats.
Primers are particularly effective when used in conjunction with rust converters. The converter neutralizes existing rust, while the primer provides a smooth, protective base for paint adhesion. This two-pronged approach significantly extends the lifespan of your undercarriage paint job.
Remember, proper surface preparation is key to successful rust treatment. Wire brushing, sanding, or using a chemical rust remover may be necessary to remove loose rust and ensure optimal adhesion. Always wear protective gear, including gloves, eye protection, and a respirator, when working with rust converters and primers. By taking the time to properly treat rust before painting, you'll ensure a long-lasting and protective finish for your truck's undercarriage.
Creative Steps: Painting Disney Characters on Shoes for Beginners
You may want to see also
Explore related products
Priming: Use a high-quality rust-inhibiting primer for a durable base coat
Rust is the silent enemy of any vehicle's undercarriage, and the battle begins with a robust primer. A high-quality rust-inhibiting primer acts as the first line of defense, creating a barrier that not only adheres well to the metal surface but also prevents moisture and corrosive elements from penetrating. This step is crucial, especially for trucks exposed to harsh weather conditions, road salts, or off-road terrains. By investing in a premium primer, you’re not just painting—you’re preserving the structural integrity of your truck for years to come.
Selecting the right primer involves more than just picking a can off the shelf. Look for products specifically formulated for automotive undercarriages, as these are designed to withstand extreme conditions. Zinc-rich primers, for instance, are highly effective due to their galvanic action, which actively fights rust by sacrificing itself to protect the metal. Apply the primer in thin, even coats using a spray gun or aerosol can, ensuring full coverage of all surfaces, including hard-to-reach areas like seams and crevices. Allow each coat to dry completely before applying the next, typically following the manufacturer’s recommended drying times, which can range from 30 minutes to 2 hours depending on humidity and temperature.
One common mistake is rushing the priming process, which can lead to uneven coverage or inadequate adhesion. To avoid this, prepare the surface thoroughly by cleaning and degreasing it, then lightly sanding to create a rough texture that the primer can grip. If your truck already shows signs of rust, use a wire brush or sandpaper to remove loose corrosion before priming. For heavily rusted areas, consider using a rust converter first to neutralize the oxidation before applying the primer. This extra step ensures the primer bonds effectively, maximizing its protective capabilities.
The longevity of your undercarriage paint job hinges on the quality and application of the primer. A durable base coat not only enhances the adhesion of subsequent paint layers but also slows down the rusting process, saving you from costly repairs down the line. Think of the primer as the foundation of a house—if it’s weak, the entire structure is compromised. By prioritizing this step and using a high-quality rust-inhibiting primer, you’re setting the stage for a finish that’s as resilient as it is visually appealing.
Creating Dot Art: Painting Bare Tree Branches
You may want to see also
Explore related products
Painting: Apply undercoat paint evenly with a sprayer or roller
Applying an undercoat to a truck's undercarriage is a critical step in ensuring durability and protection against rust and corrosion. The choice between a sprayer and a roller depends on your desired finish, the complexity of the undercarriage, and your level of experience. Sprayers offer a smooth, even application and are ideal for large, open areas, while rollers provide better control in tight spaces and textured surfaces. Regardless of the tool, the key is consistency—thin, multiple coats are superior to a single heavy layer, which can drip or pool.
For sprayer application, start by thinning the undercoat paint according to the manufacturer’s instructions, typically 10-20% depending on the product. Hold the sprayer 6-8 inches from the surface, moving in a steady, overlapping pattern to avoid streaks. Begin with vertical passes, then follow with horizontal strokes for even coverage. Allow each coat to dry for 30-60 minutes before applying the next, ensuring the paint adheres properly without sagging. Mask off nearby components like exhaust systems or brake lines to prevent overspray.
Rollers are better suited for undercarriages with intricate shapes or hard-to-reach areas. Use a high-density foam roller for smooth surfaces or a textured roller for uneven areas. Dip the roller into the paint tray, rolling it back and forth to evenly distribute the undercoat. Apply in a "W" pattern, then fill in the gaps with vertical or horizontal strokes. Work in sections, ensuring each area is fully covered before moving on. For tight spots, switch to a smaller brush to avoid missing critical areas.
Both methods require proper preparation—clean the undercarriage thoroughly, removing dirt, grease, and old paint, and apply a rust inhibitor if necessary. Test the undercoat on a small area to ensure compatibility and adhesion. After application, inspect the surface under bright light to identify any thin spots or imperfections. A well-applied undercoat not only enhances the truck’s appearance but also extends its lifespan by creating a barrier against moisture and road debris.
In conclusion, whether you choose a sprayer or roller, the goal is an even, thorough application of the undercoat. Each tool has its advantages, and the best choice depends on the specific needs of your truck’s undercarriage. Patience and attention to detail will yield a professional finish, ensuring your truck remains protected and looking its best for years to come.
Patchy Paint Problems: Why Your Second Coat Isn't Smooth
You may want to see also
Explore related products
Sealing: Finish with a clear coat to protect against moisture and debris
A clear coat is the unsung hero of undercarriage painting, often overlooked but critical for longevity. Unlike the visible exterior, the undercarriage faces relentless assault from road salt, grime, and moisture. A high-quality clear coat acts as a sacrificial barrier, absorbing the brunt of this damage while preserving the paint and metal beneath. Think of it as armor for your truck’s underbelly, extending the life of your work and maintaining its structural integrity.
Applying a clear coat requires precision and patience. Start by ensuring the painted surface is clean, dry, and free of contaminants. Use a spray gun for even coverage, holding it 6–8 inches from the surface and applying in thin, overlapping coats. Most clear coats require 2–3 layers for optimal protection. Allow each coat to dry according to the manufacturer’s instructions—typically 30–60 minutes between coats. Avoid over-application, as this can lead to runs or uneven drying.
Not all clear coats are created equal. For undercarriage protection, opt for a product specifically designed for high-impact, high-moisture areas. Polyurethane-based clear coats are a popular choice due to their durability and resistance to chemicals and UV damage. Some products also include rust inhibitors, adding an extra layer of defense against corrosion. Always check the label for compatibility with your paint system and environmental conditions.
One common mistake is neglecting hard-to-reach areas. Use an extension wand or a smaller spray nozzle to ensure complete coverage, especially around suspension components, frame rails, and wheel wells. After application, inspect the undercarriage under bright light to identify any missed spots or imperfections. A thorough job now saves time and money on repairs later.
Finally, maintenance is key to maximizing the clear coat’s effectiveness. Periodically inspect the undercarriage for chips or wear, touching up as needed. Wash the area regularly to remove salt and debris, and consider reapplying the clear coat every 2–3 years, depending on climate and driving conditions. With proper care, your truck’s undercarriage will remain protected, ensuring both aesthetics and functionality for years to come.
Mastering Tree Mural Art: Joe's Step-by-Step Painting Guide
You may want to see also
Frequently asked questions
Thoroughly clean the undercarriage using a pressure washer or degreaser to remove dirt, rust, and old paint. Sand any rusted areas with medium-grit sandpaper, then smooth the surface with fine-grit sandpaper. Apply a rust-inhibiting primer to protect against future corrosion.
Use a high-quality, rust-resistant undercoating or chassis paint designed for automotive use. Rubberized undercoatings are popular for their durability and ability to withstand road debris, moisture, and temperature changes.
Yes, mask or cover areas like wheels, exhaust pipes, and the engine bay to prevent overspray. Use plastic sheeting, tape, or cardboard to protect these components, ensuring a clean and professional finish.
