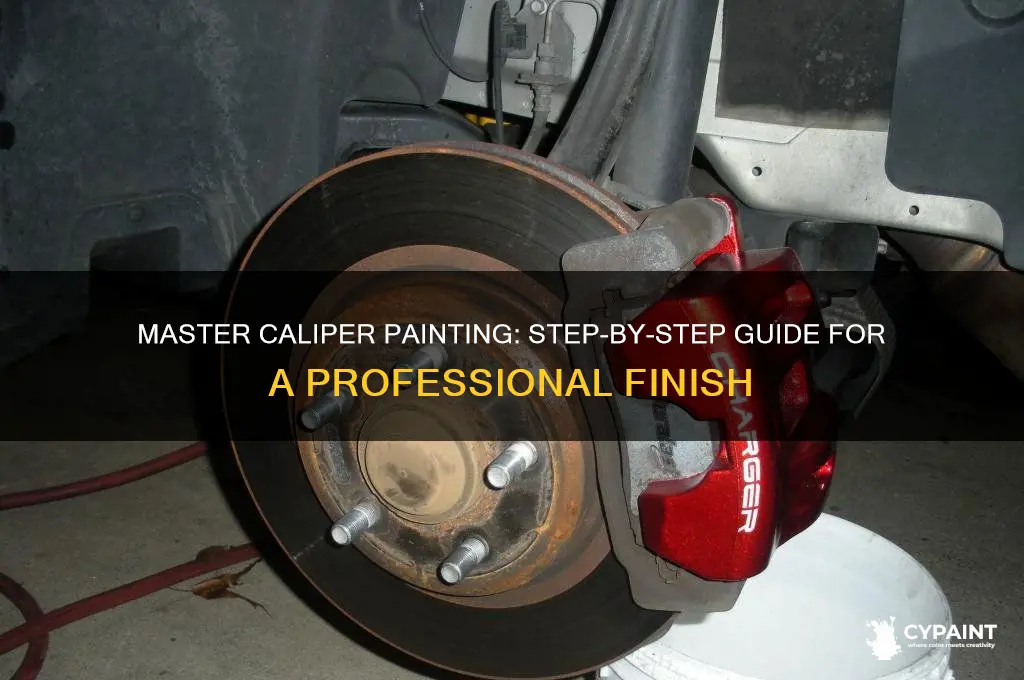

Painting calipers can significantly enhance the appearance of your vehicle’s wheels while also providing protection against corrosion and wear. To do it the right way, start by thoroughly cleaning the calipers to remove dirt, grease, and brake dust, ensuring the surface is smooth and free of contaminants. Next, disassemble the caliper if possible or mask off surrounding areas to avoid overspray. Apply a high-temperature primer designed for brake calipers to create a durable base coat, followed by multiple thin layers of heat-resistant paint in your desired color, allowing each coat to dry completely. Finish with a clear coat for added protection and shine. Proper preparation and the use of specialized materials are key to achieving a professional, long-lasting finish.
| Characteristics | Values |
|---|---|
| Surface Preparation | Clean calipers thoroughly with brake cleaner or degreaser, remove rust with sandpaper or wire brush, and scuff the surface with 400-600 grit sandpaper |
| Disassembly | Remove calipers from vehicle, disassemble as needed (e.g., remove pistons, seals, and hardware), and protect non-painted areas with masking tape or plastic wrap |
| Priming | Apply a high-temperature primer (e.g., epoxy or self-etching primer) designed for brake calipers, allow to dry completely (typically 30 minutes to 1 hour) |
| Paint Type | Use high-temperature paint (e.g., engine enamel, caliper paint, or high-heat spray paint) rated for temperatures up to 900°F (482°C) |
| Paint Application | Apply 2-3 light coats of paint, allowing each coat to dry for 10-15 minutes before applying the next, hold the spray can 6-8 inches away from the surface |
| Drying Time | Allow paint to dry completely (typically 24 hours) before reinstalling calipers, avoid touching or handling painted surfaces during this time |
| Reassembly | Reinstall calipers, hardware, and components, ensuring proper torque specifications and lubrication as needed |
| Curing | Allow paint to cure fully by driving the vehicle at moderate speeds for 10-15 minutes, avoiding hard braking during this period |
| Maintenance | Periodically inspect painted calipers for chips, cracks, or wear, and touch up as needed with matching high-temperature paint |
| Safety Precautions | Work in a well-ventilated area, wear protective gear (e.g., gloves, respirator, and safety glasses), and avoid painting in direct sunlight or extreme temperatures |
| Optional Steps | Consider using a clear coat for added protection, or applying a high-temperature ceramic coating for maximum durability |
Explore related products
What You'll Learn
- Preparation Essentials: Clean, sand, and mask calipers thoroughly to ensure smooth paint adhesion and prevent overspray
- Primer Application: Apply high-temp primer evenly for durability and better paint adherence on caliper surfaces
- Painting Techniques: Use thin, even coats of heat-resistant paint, allowing proper drying time between layers
- Curing Process: Follow manufacturer instructions for curing to maximize paint longevity and heat resistance
- Reassembly Tips: Reinstall calipers carefully, ensuring all components are secure and functioning properly post-painting
Preparation Essentials: Clean, sand, and mask calipers thoroughly to ensure smooth paint adhesion and prevent overspray
Before any paint touches your calipers, meticulous preparation is non- negotiable. Think of it as laying the foundation for a house – a strong base ensures longevity and a professional finish. Grease, grime, and brake dust act like enemies to paint adhesion, creating a barrier that leads to flaking and peeling.
A thorough cleaning is your first line of defense. Use a degreaser specifically formulated for automotive parts, not household cleaners which can leave residue. Scrub every nook and cranny with a stiff brush, paying extra attention to areas around bolts and pistons. Rinse meticulously and allow ample drying time – any moisture trapped under the paint will spell disaster.
Sanding is the next crucial step, transforming the caliper's surface from smooth and glossy to slightly textured, creating a mechanical bond for the paint. Choose a medium-grit sandpaper (around 220-grit) and work methodically, ensuring even coverage. The goal isn't to remove material aggressively, but to create a subtle "tooth" for the paint to grip. Wipe away sanding dust with a tack cloth – those microscopic particles can ruin your finish.
For intricate areas and hard-to-reach spots, consider using a sanding sponge or a Dremel tool with a sanding attachment. Remember, consistency is key – a uniform sanding job ensures even paint application.
Masking is your shield against overspray, protecting surrounding areas from unwanted paint. Use high-quality automotive masking tape and plastic sheeting. Be generous with your coverage, ensuring all adjacent surfaces are fully protected. Pay close attention to areas where the caliper meets the rotor and wheel, as overspray here can be particularly problematic. Don't skimp on the tape – a single mistake can lead to hours of cleanup. Consider using pre-cut masking templates designed specifically for calipers for a more precise and professional result.
Cropping JPEGs in MS Paint: A Step-by-Step Guide
You may want to see also
Explore related products
Primer Application: Apply high-temp primer evenly for durability and better paint adherence on caliper surfaces
Primer application is a critical step in painting calipers, often overlooked but essential for longevity and finish quality. High-temp primer, specifically formulated to withstand the extreme heat generated by braking systems, acts as a protective barrier between the caliper's metal surface and the paint. This specialized primer not only ensures better paint adherence but also prevents corrosion and peeling, common issues in high-heat environments. Without it, even the most vibrant paint job will degrade quickly, leaving your calipers looking worn and unkempt.
To achieve an even application, start by thoroughly cleaning the caliper surface with a degreaser and lightly sanding it to create a rough texture. This preparation allows the primer to bond more effectively. Shake the high-temp primer can vigorously for at least two minutes to ensure the contents are thoroughly mixed. Hold the can 6–8 inches away from the caliper and apply the primer in smooth, overlapping strokes, maintaining a consistent distance to avoid drips or uneven coverage. Aim for a thin, uniform coat rather than a thick layer, as multiple light coats are more effective than one heavy application.
One common mistake is rushing the drying process. High-temp primer typically requires 30–60 minutes to dry to the touch, but full curing can take up to 24 hours. Patience is key; attempting to apply paint too soon can result in bubbling or peeling. If you’re working in a humid environment, consider using a fan to aid drying, but avoid direct heat sources, which can cause uneven curing. Always follow the manufacturer’s instructions for drying times and application conditions.
Comparing high-temp primer to standard automotive primer highlights its unique benefits. While standard primer may adhere initially, it lacks the heat resistance needed for calipers, leading to rapid degradation. High-temp primer, on the other hand, is designed to withstand temperatures up to 900°F, making it ideal for this application. Investing in the right primer not only saves time and effort but also ensures a professional, long-lasting finish that enhances both aesthetics and durability.
In conclusion, applying high-temp primer evenly is a non-negotiable step in painting calipers. It bridges the gap between raw metal and paint, providing a durable foundation that resists heat, corrosion, and wear. By following proper techniques—cleaning, sanding, applying thin coats, and allowing adequate drying time—you’ll achieve a finish that not only looks great but also stands the test of time. Skipping this step or cutting corners will only lead to disappointment, so prioritize primer application for calipers that truly stand out.
Identifying Renaissance Artists: Techniques to Recognize Painting Authors
You may want to see also
Explore related products
Painting Techniques: Use thin, even coats of heat-resistant paint, allowing proper drying time between layers
Achieving a professional finish when painting calipers hinges on the application of thin, even coats of heat-resistant paint. This technique minimizes the risk of drips, runs, and uneven coverage, ensuring a smooth, durable result. Thick layers, while tempting for quicker coverage, are prone to cracking and peeling under the high temperatures calipers endure. Heat-resistant paint, typically rated for temperatures up to 900°F (482°C), is essential for longevity, as standard paints will blister and degrade.
The process begins with thorough surface preparation. After cleaning and sanding the caliper, apply a high-temperature primer designed for metal surfaces. Allow the primer to dry completely, following the manufacturer’s recommended time, usually 30 minutes to 1 hour. Once dry, lightly sand the primer with 400-grit sandpaper to create a smooth base for the paint. This step ensures better adhesion and a more polished final appearance.
When applying the paint, use a spray gun or aerosol can for even coverage. Hold the nozzle 6–8 inches away from the surface and apply in smooth, overlapping strokes. Each coat should be thin enough to avoid drips but sufficient to provide coverage. Aim for 2–3 light coats rather than one heavy application. Allow each coat to dry for at least 15–30 minutes before applying the next, depending on the paint’s drying time. Rushing this step can lead to smudges or uneven texture.
Between coats, inspect the caliper for any imperfections. If you notice runs or sags, lightly sand the area with 600-grit sandpaper before proceeding. For intricate areas, such as around bolts or brackets, use a small brush to ensure even coverage without overspray. Once the final coat is applied, let the caliper cure for 24–48 hours before reassembly. This curing period allows the paint to fully harden, maximizing its resistance to heat and abrasion.
The key takeaway is patience. Thin, even coats and proper drying time are non-negotiable for a lasting finish. While the process may take longer, the result—a sleek, heat-resistant caliper that enhances both performance and aesthetics—is well worth the effort.
Mastering Substance Painter: A Step-by-Step SBS/SBSAR Installation Guide
You may want to see also
Explore related products
Curing Process: Follow manufacturer instructions for curing to maximize paint longevity and heat resistance
The curing process is a critical step in painting calipers, often overlooked but essential for durability and performance. Unlike drying, which is surface-level, curing involves a chemical reaction that hardens the paint, enhancing its resistance to heat, friction, and environmental factors. Manufacturers design their paints with specific curing requirements, and deviating from these can compromise the finish and longevity of your work. Always refer to the product’s instructions for precise temperature, time, and humidity conditions to ensure optimal results.
Instructively, the curing process typically involves a two-stage approach: initial drying followed by a longer curing period. For example, high-temperature caliper paints often require an initial air dry of 30 minutes to 1 hour, followed by a heat cure at 200°F (93°C) for 1 to 2 hours. This two-step method ensures the paint adheres properly and develops its full heat-resistant properties. Ignoring these steps or rushing the process can lead to paint flaking, discoloration, or failure under braking heat. Always use an oven or heat gun if specified, as household ovens may not maintain consistent temperatures required for curing.
Persuasively, investing time in proper curing pays dividends in the long run. A well-cured caliper paint job not only looks professional but also withstands the extreme conditions of braking systems, including temperatures up to 400°F (204°C). This is particularly crucial for performance vehicles or daily drivers subjected to frequent stop-and-go traffic. By following manufacturer guidelines, you avoid common pitfalls like paint bubbling or peeling, ensuring your calipers remain both functional and aesthetically pleasing for years.
Comparatively, curing processes vary significantly between paint types. Epoxy-based paints, for instance, may require longer curing times (up to 7 days at room temperature) but offer superior adhesion and chemical resistance. Polyurethane paints, on the other hand, cure faster under heat but may require additional clear coat layers for UV protection. Understanding these differences allows you to choose the right product for your needs and apply it correctly, ensuring the paint performs as intended under real-world conditions.
Descriptively, the curing environment plays a pivotal role in the final outcome. Humidity levels below 60% are ideal, as excessive moisture can prevent proper curing, leading to a soft or tacky finish. Similarly, dust-free conditions are essential to avoid contaminants settling on the paint surface during curing. If curing in a garage, cover the calipers with a clean cloth or use a makeshift curing tent to minimize dust exposure. These small precautions can make the difference between a flawless finish and a subpar result.
Mastering Tri-Fold Board Painting: Tips, Techniques, and Creative Ideas
You may want to see also
Explore related products
Reassembly Tips: Reinstall calipers carefully, ensuring all components are secure and functioning properly post-painting
Reinstalling calipers after painting is a critical step that bridges aesthetics and functionality. Proper reassembly ensures your braking system operates as intended, preventing safety hazards and costly repairs. Begin by verifying all components are clean and free of paint residue, especially on threads and contact surfaces. Use a wire brush or fine-grit sandpaper to remove any overspray, ensuring smooth operation of bolts and pins.
A systematic approach to reassembly minimizes the risk of oversight. Start by reattaching the caliper bracket to the mounting points, using a torque wrench to tighten bolts to the manufacturer’s specifications—typically 70 to 120 ft-lbs for most vehicles. Over-tightening can warp components, while under-tightening compromises stability. Next, slide the caliper over the rotor, ensuring the brake pads align perfectly with the rotor surface. Misalignment can lead to uneven wear and reduced braking efficiency.
Lubrication is often overlooked but essential. Apply a thin layer of high-temperature silicone grease to the caliper pins and slides to reduce friction and prevent binding. Avoid petroleum-based lubricants, as they can degrade rubber seals. Once the caliper is in place, secure it with the retaining bolts, again using a torque wrench to achieve the correct tightness. Double-check that all hardware is snug and properly seated before proceeding.
Finally, perform a post-reassembly inspection to confirm functionality. With the wheels still off, depress the brake pedal several times to reset the caliper piston and ensure proper pad engagement. Spin the wheel by hand to verify it rotates freely without rubbing or resistance. If any abnormalities are detected, disassemble and inspect for misalignment or debris. A thorough reassembly process not only preserves the visual upgrade but also maintains the integrity of your vehicle’s braking system.
Easy Roller Painting Tips for a Smooth Pegboard Finish
You may want to see also
Frequently asked questions
Start by thoroughly cleaning the calipers with degreaser to remove brake dust, oil, and grime. Then, lightly sand the surface with 400-grit sandpaper to ensure paint adhesion, and wipe down with a tack cloth or isopropyl alcohol to remove any residue.
Use high-temperature caliper paint designed to withstand heat and brake dust. A high-temperature primer is recommended to improve adhesion and durability, especially on bare metal surfaces. Apply primer first, let it dry, then apply 2-3 coats of paint, allowing proper drying time between coats.
Mask off areas like the piston, bleeder screw, and mounting points using high-temperature masking tape and plastic wrap to prevent paint from getting on functional parts. Ensure all masking is secure to avoid overspray, and remove it carefully after the final coat has dried.
