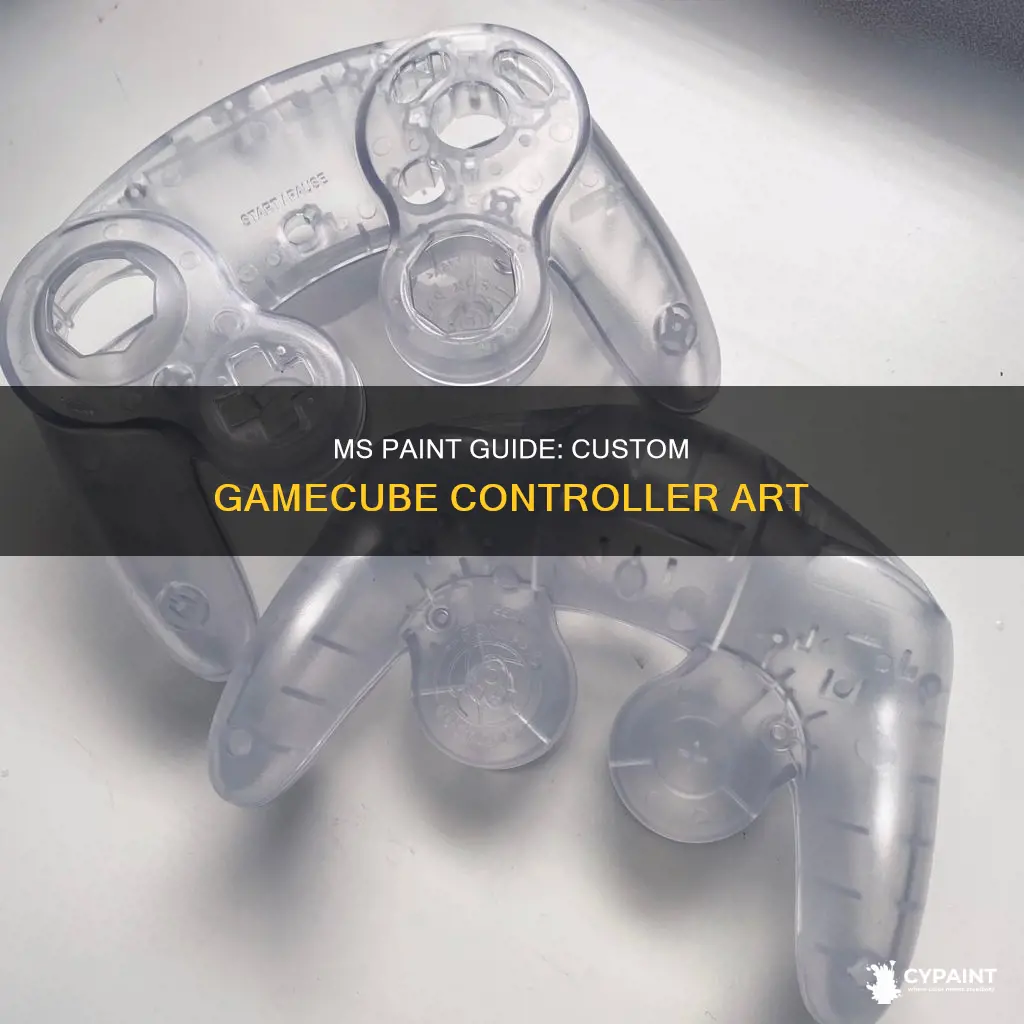

Ms Paint Guide: Custom Gamecube Controller Art

Painting a GameCube controller can be a fun and creative project, allowing you to customize your controller with your favourite colours and designs. The process is relatively straightforward and can be done using spray paint, acrylics, or even MS Paint. Before you begin painting, it's important to clean the controller, especially if it's an old one, to ensure the paint adheres properly. You can use a cotton bud dipped in cleansing liquid to clean around the motherboard and thumbsticks, and a needle to remove any stubborn dirt. Once clean, you'll need to sand the controller to create a smooth surface for the paint. You can then apply a primer, such as a white colour primer, to the overall surface of the controller, being careful to avoid pooling. After the primer dries, you can start painting with your chosen colours, using spray paint or a brush. If you're feeling adventurous, you can even add effects with an airbrush or LED lights. Finally, let the paint dry completely before reassembling the controller, which may take a day or more depending on the paint used. With some creativity and patience, you can transform your plain GameCube controller into a unique and colourful accessory.

Cleaning the controller

Before painting a GameCube controller, it is important to clean it thoroughly. Here is a step-by-step guide to cleaning your controller:

Step 1: Disassemble the Controller

Start by turning the controller face down and removing the back half using a tri-wing or 2mm flathead screwdriver. Carefully lift the circuit board from the front shell, being mindful of the wires. You can then proceed to remove the thumbstick stick caps, the Left control stick, and the C-Stick, by pulling them directly away from the motherboard.

Step 2: Clean the Motherboard

Use a cotton bud dipped in cleansing liquid or isopropyl alcohol to gently wipe down the motherboard until it is clean. If you have a standard rubber wire, repeat this step with a small cloth for the controller cable and GameCube connector plug. This step may require multiple passes depending on the condition of your cable.

Step 3: Clean the Shell and Buttons

Use a combination of paper towels, cotton buds, and a cleaning solution to wipe down the shell and buttons. You can also use a toothbrush specifically for cleaning to remove any stubborn dirt or grime. Pay special attention to the areas around the thumbsticks, buttonholes, and the edges of the controller. If you are painting the buttons, ensure they are thoroughly cleaned and dried before proceeding to the next step.

Step 4: Dry the Controller

Make sure to dry all components completely before proceeding to the next step. You can use paper towels or a dry cotton bud to absorb any remaining moisture. For the buttons, you can leave them in a cleansing cup with the screws and pressure pads until they are dry.

Step 5: Sand the Controller

Once everything is dry, use fine-grit sandpaper (600-grit) to sand down the shell and remove any remaining paint or primer. This step will create a smooth surface for the new paint to adhere to. After sanding, wipe away any dust with a damp paper towel or cloth.

Step 6: Optional Deep Cleaning

If your controller is particularly dirty or has a lot of built-up grime, you may want to perform a deep cleaning. Soak the buttons and shell in a mixture of vinegar and water for an hour, then give them a quick clean with isopropyl alcohol or rubbing alcohol. Alternatively, you can place the plastic parts in a bag with warm water and a bit of dish soap, shake vigorously, and then clean with a cotton bud and alcohol.

Remember to be gentle with the electronic components and avoid getting them excessively wet. Always allow the controller to dry completely before proceeding to the next step or reassembling the controller.

Choosing the right paint

Type of Paint

The type of paint you choose will depend on the finish you want to achieve. Spray paint or acrylics are commonly used for painting controllers, offering a range of colours and finishes. Spray paint is convenient for quick and even coverage, while acrylics provide more flexibility for detailed designs.

Paint Quality

It is crucial to select high-quality paint to ensure a durable and aesthetically pleasing finish. Art-grade paints are recommended for vivid colours and clean designs. Avoid cheap alternatives, as they may not provide the desired coverage or longevity.

Primer

Using a primer is essential to ensure the paint adheres properly to the controller's surface. A white primer is commonly used as a base coat, providing a neutral foundation for your chosen colour. Ensure you apply thin layers to avoid pooling or dripping.

Finish

You can choose between a glossy or matte finish for your controller. A glossy finish gives a shiny, sleek appearance, while a matte finish offers a more subdued look. Consider the overall aesthetic you want to achieve and choose the finish that best complements your design.

Drying and Curing

Consider the drying and curing properties of the paint. Some paints, like aerosol paints, off-gas to dry and cure. Ensure you allow adequate time for each layer to dry properly before applying the next coat. Follow the manufacturer's instructions for drying times to avoid cracking or other issues.

Compatibility

When painting specific parts of the controller, such as the buttons or C-stick, choose a paint that is compatible with the material. For example, consider using a paint that bonds well with rubber if you plan to paint the C-stick.

By carefully considering these factors, you can choose the right paint for your GameCube controller project, ensuring a professional-looking and long-lasting finish.

Dismantling the controller

Before painting a GameCube controller, you will need to dismantle it. This process is relatively straightforward but requires patience.

First, turn the controller face down and remove the back half of the controller using a triwing or 2mm flathead screwdriver. Be cautious not to strip out the screws. Gently pry the two halves of the controller apart using plastic cards or tools. Set the back half aside.

Next, carefully pull the cord off its post and lift the circuit board from the front shell of the controller. You will notice six wires that compose the controller cord and two wires that connect the rumble motor to the circuit board.

If your controller is dirty, you can clean it before painting. Use a cotton bud dipped in cleansing liquid to clean the area surrounding the motherboard. For the thumbsticks, use a slightly drier cotton bud. You can also use a needle to remove any stubborn bits. Leave the buttons in a cleansing cup with the screws and pressure pads, then clean the shell and the inside of the button holes. Ensure all components are completely dry before proceeding.

Now, you can begin the process of sanding and painting your controller.

Priming and painting

Before you start painting your GameCube controller, it is important to prime it properly. This will ensure that the paint adheres well and that the final product looks smooth and professional. Here is a step-by-step guide to priming and painting your GameCube controller:

Cleaning and Sanding:

Start by opening your GameCube controller and cleaning it thoroughly. Use a cotton bud dipped in cleansing liquid to clean the area surrounding the motherboard. Gently rub the thumbsticks with a slightly dried cotton bud to avoid getting liquid inside them. You can use a needle to remove any stubborn dirt or grime. Clean the buttons, screws, and pressure pads separately in a cleansing cup. Ensure you dry everything completely before moving on to the next step.

Once everything is clean and dry, it's time to sand the controller. Use fine-grit sandpaper (around 600 grit) to lightly sand down the controller's surface, including the buttons if you plan to paint them. Sanding will create a rough surface for the primer to adhere to. After sanding, wipe away any dust with a wet paper towel.

Priming:

When priming your GameCube controller, it is recommended to use a white primer as a base coat. Apply a thin layer of primer to the entire surface of the controller, avoiding pooling or dripping. Let the first layer dry properly before applying the next layer to ensure adequate coverage. If you notice any drips or uneven areas after the primer dries, use fine-grit sandpaper to gently sand them away, then apply another thin layer of primer.

Painting:

Once you are happy with the primer coverage, you can start painting. It is recommended to use spray paint or acrylics for painting your GameCube controller. Choose your desired colours and apply thin layers of paint, allowing each layer to dry before adding the next. This will help prevent cracking and ensure a smooth finish. Take your time and use steady, controlled motions to achieve an even coat.

If you want to add any complex designs or effects, consider using waterslide decals, which can be applied after your base colour is completely dry. Simply follow the instructions for applying waterslide decals, then finish with a clear coat to protect your design.

Drying and Assembly:

After you have finished painting and adding any desired designs, allow the controller to dry completely. This may take a full day or more, depending on the paint and the number of coats you applied. Once everything is dry to the touch, reassemble your controller, being careful not to scratch or smudge the fresh paint.

And that's it! You now have a custom-painted GameCube controller. Remember to let the paint cure fully before using your controller extensively to avoid any chipping or damage. Enjoy your unique and personalized gaming experience!

Drying and reassembling

Once you are done painting your GameCube controller, it is important to let it dry thoroughly. The drying time will depend on various factors, such as the paint used, the thickness of the coat, and the environmental conditions. On average, it is recommended to wait at least a day before reassembling the controller to ensure the paint has cured properly.

During the drying process, make sure to keep the painted controller in a well-ventilated area. This is especially important if you have used aerosol paints, as they need to off-gas to dry and cure properly. If the lower layers of paint are still off-gassing and there is something blocking the gases from escaping, it can create a shell that cracks when the underlying layers start to cure.

After the paint has dried completely, you can start the process of reassembling your GameCube controller. Gather all the components that you carefully set aside when you opened the controller. This includes the back half of the controller, the circuit board, the cord, and any other parts you removed.

Start by reconnecting the cord to its post. Carefully align the pins on the cord with the corresponding holes on the post and gently push it into place. Then, place the circuit board back into the front shell of the controller. Ensure that all the buttons and sticks are properly aligned with their respective openings.

Next, close the back of the controller. Align the two halves of the controller and gently snap them back together. Be careful not to apply too much pressure, as you don't want to damage the fresh paint job. Once the two halves are securely connected, you can proceed to attach any other components that you initially removed, such as the screws, pressure pads, and buttons.

Finally, test the controller to ensure it is functioning properly. Connect it to your GameCube console and test the buttons, sticks, and triggers to make sure they are all responsive. If everything works as expected, congratulations! You have successfully painted and reassembled your GameCube controller.
