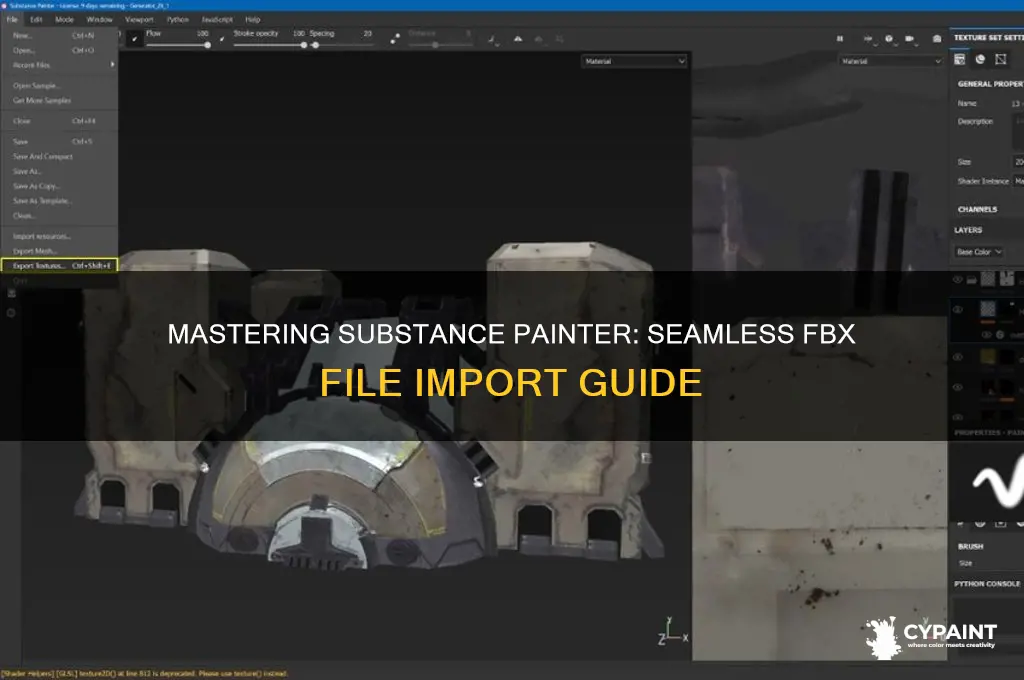

Mastering Substance Painter: Seamless Fbx File Import Guide

Opening FBX files in Substance Painter is a straightforward process that allows artists and designers to import 3D models for texturing and material creation. To begin, ensure that both your 3D modeling software (such as Blender, Maya, or 3ds Max) and Substance Painter are up to date, as compatibility issues can arise with older versions. Start by exporting your 3D model from your modeling software in FBX format, making sure to include UV maps and any necessary texture information. Once exported, launch Substance Painter and create a new project. In the project setup window, select the option to import a mesh, then navigate to your FBX file and open it. Substance Painter will automatically detect and load the model, allowing you to proceed with setting up materials, textures, and painting directly on the surface of your 3D asset. This seamless integration ensures a smooth workflow for bringing your 3D models to life with high-quality textures.

Explore related products

Creating Games with Unreal Engine, Substance Painter, & Maya: Models, Textures, Animation, & Blueprint

$43.82 $74.99

FBX-4 4-in 4-Out Microphone Anti-Howling Feedback Suppressor, Microphone Stage ktv Effector, Feedback Frequency Shifter

$380

Innovative Percussion FBX-1 Mallets

$42.37

Custom Damascus Steel Pocket Folding Knife Blank Blade DIY Hand Forged Damascus - Hunting, Camping, Bushcraft, Hiking, Outdoors Knives Handmade Steel Bolster Knife Making Supply (FBX-08)

$29.99

BestCH AC Adapter for Replacement Fisher FBX1260 FBX440 FBX 1260 FBX 440 FBX440K Bluetooth Party Jam Sound PA Speaker gear4 PG548 Halo 2 PG548US Alarm Clock Power Supply Cord Battery Charger

$4.81

Innovative Percussion FBX-5 Mallets

$60.99

Importing FBX Files Directly into Substance Painter

After selecting the FBX file, Substance Painter will initiate the import process. During this step, the software may prompt you with import settings, such as scaling options or material configurations. It’s important to review these settings carefully, as they can affect how the model appears in the workspace. For instance, adjusting the scale ensures that the model aligns correctly with the software’s grid and other elements. Additionally, Substance Painter may attempt to automatically assign materials based on the FBX file’s embedded data, but you can choose to ignore this and create materials manually later.

Once the import is complete, the FBX model will appear in Substance Painter’s 3D viewport. You can now rotate, zoom, and manipulate the model to inspect it from different angles. If the model includes multiple meshes or sub-objects, Substance Painter will list them in the "Scene" panel, allowing you to select and work on individual components. At this stage, it’s a good idea to check the UV maps of the model, as proper UVs are crucial for texturing. If the UVs are not optimal, you may need to adjust them in your 3D modeling software before proceeding.

Substance Painter also provides tools to optimize the model for texturing, such as generating new UV maps or baking maps like normals, ambient occlusion, and curvature. These baked maps can be found in the "Bake" menu and are essential for achieving realistic textures. After ensuring the model is ready, you can start creating materials and applying textures using Substance Painter’s extensive library of tools and effects. The software’s real-time rendering capabilities allow you to see changes instantly, making the texturing process both efficient and visually rewarding.

Finally, it’s worth noting that Substance Painter supports FBX files created in various 3D modeling software, including Autodesk Maya, 3ds Max, and Blender. However, compatibility can sometimes depend on how the FBX file was exported. For best results, ensure that the FBX file includes all necessary textures, materials, and UV information. If you encounter issues during import, such as missing textures or incorrect geometry, revisit the export settings in your 3D software to ensure all required data is included. With these steps, importing FBX files directly into Substance Painter becomes a seamless part of your texturing workflow.
