Exporting a mesh with its texture from Substance Painter is a crucial step in bringing your 3D assets to life in other applications, such as game engines or rendering software. This process involves preparing your high-poly or low-poly mesh within Substance Painter, applying and refining textures using its powerful tools, and then exporting both the mesh and its associated texture maps in the correct format. Properly configuring export settings, such as texture resolution, file type, and map types (e.g., albedo, normal, roughness), ensures compatibility with your target platform. By following best practices, you can maintain the quality and integrity of your work while streamlining the transition from Substance Painter to your final production environment.
Explore related products
What You'll Learn
- Prepare UV Maps: Ensure clean, non-overlapping UVs for accurate texture baking and export
- Bake Textures: Bake maps (AO, normals, etc.) for high-poly details onto low-poly mesh
- Set Texture Size: Choose appropriate resolution for textures based on mesh detail and use
- Export Settings: Configure file format (e.g., FBX, OBJ) and include texture paths
- Verify in Engine: Import exported mesh into target software to confirm textures apply correctly
Prepare UV Maps: Ensure clean, non-overlapping UVs for accurate texture baking and export
UV mapping is the backbone of texture application in 3D art. Without clean, non-overlapping UVs, your textures will bake inaccurately, leading to distorted or missing details in your final export. Think of UVs as a flattened skin for your 3D model – if the skin is stretched, torn, or overlapping, the texture won't fit properly.
The Problem with Overlapping UVs:
Imagine trying to paint a detailed mural on a crumpled piece of paper. The paint would smear, colors would blend unintentionally, and the overall image would be a mess. Overlapping UVs create a similar problem in Substance Painter. When UV islands overlap, the baking process can't distinguish which part of the texture belongs to which part of the model. This results in blurry edges, color bleeding, and a loss of detail.
Achieving Clean UVs:
Several techniques ensure clean UVs. In your 3D modeling software, aim for a layout that minimizes stretching and distortion. Utilize tools like automatic UV unwrapping with careful seam placement, followed by manual adjustments for optimal results. Aim for a consistent scale across UV islands to prevent texture stretching or compression.
Software-Specific Tips:
Most 3D modeling software offers UV editing tools. For example, in Blender, the "Smart UV Project" tool provides a good starting point, while the "UV/Image Editor" allows for precise manual adjustments. Maya's "Automatic Mapping" tool and 3ds Max's "Unwrap UVW" modifier are also powerful options. Remember to check for overlapping UVs using the software's "Check Overlapping UVs" function before exporting to Substance Painter.
The Reward of Clean UVs:
Investing time in clean UVs pays off significantly. Accurate texture baking ensures sharp details, realistic material properties, and a professional-looking final render. Your textures will align perfectly with your model's geometry, creating a cohesive and visually stunning result.
Glow-in-the-Dark Fabric Paint: Illuminating Your Creations
You may want to see also
Explore related products
Bake Textures: Bake maps (AO, normals, etc.) for high-poly details onto low-poly mesh
Baking textures is a critical step in transferring intricate details from a high-poly mesh to a low-poly model, ensuring your final asset retains visual fidelity without sacrificing performance. In Substance Painter, this process involves generating maps like Ambient Occlusion (AO), normals, and curvature, which capture the high-poly’s geometry and lighting interactions. These maps act as a cheat sheet for the low-poly mesh, allowing it to display complex details without the computational overhead of additional polygons.

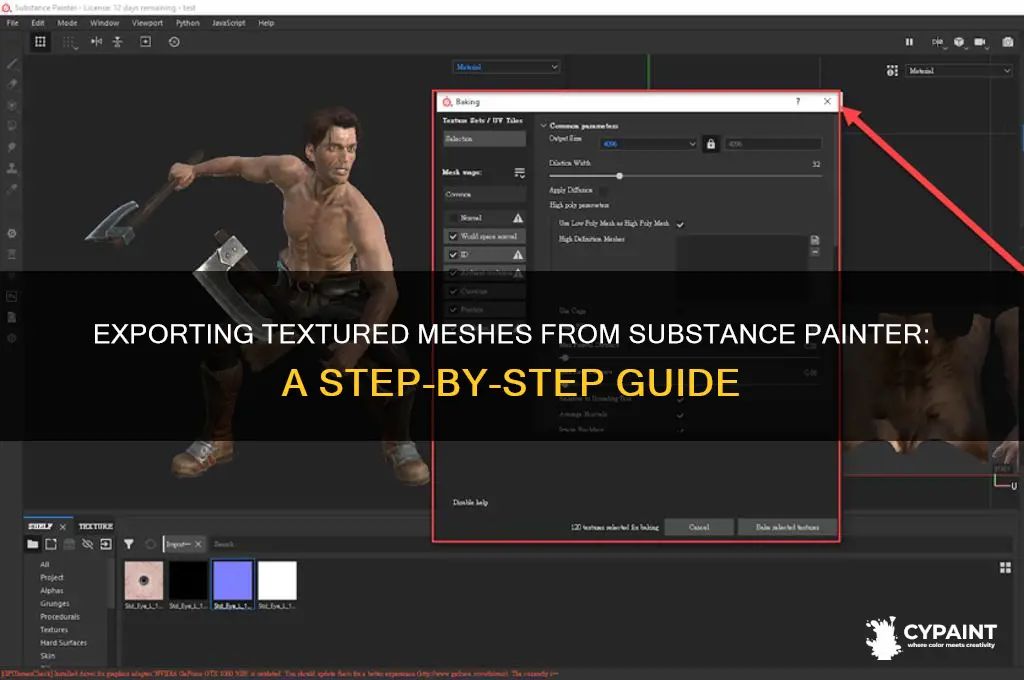

To begin, ensure your high-poly and low-poly meshes are properly aligned in Substance Painter. The low-poly should be a simplified version of the high-poly, sharing the same UV layout. In the Bake Manager, select the maps you need—AO for self-shadowing, normal for surface details, and curvature for edge definition. Adjust the resolution of the bake (e.g., 2K or 4K) based on the desired quality and the project’s performance constraints. Higher resolutions capture finer details but increase file size and render times.
One common pitfall is ignoring the cage setting. The cage defines the bounding volume within which the bake occurs, preventing artifacts from overlapping geometry. For organic models, a tight cage around the mesh works best, while mechanical objects may require a more uniform cage. Experiment with cage settings to avoid bleeding or missing details. Additionally, enable anti-aliasing for smoother transitions between edges and surfaces.
After baking, inspect the maps in the 2D or 3D viewport for accuracy. AO maps should highlight crevices and corners, normal maps should replicate high-poly geometry, and curvature maps should emphasize edges and flat areas. If details appear distorted or missing, recheck the UV layout, cage settings, or mesh alignment. Properly baked maps not only enhance realism but also streamline the texturing process, as they provide a foundation for layering materials and effects.
In conclusion, baking textures in Substance Painter is both an art and a science. By carefully configuring settings, avoiding common mistakes, and validating results, you can ensure your low-poly mesh retains the richness of its high-poly counterpart. This step is indispensable for creating optimized, visually stunning assets ready for real-time rendering or game engines.
Giotto's Innovation: Religious Scenes with Human Emotion
You may want to see also
Explore related products
Set Texture Size: Choose appropriate resolution for textures based on mesh detail and use
Texture resolution is a balancing act between visual fidelity and performance. High-resolution textures (4K or 8K) capture intricate mesh details and subtle material variations, but they demand more memory and processing power, potentially impacting real-time rendering or game performance. Lower resolutions (1K or 2K) are lighter on resources but may result in pixelation or loss of detail, especially on close-up objects.
Consider the intended use of your textured mesh. A character’s face in a cinematic cutscene warrants higher resolution textures to convey emotion and realism, while a distant background prop can suffice with lower resolution textures. Similarly, a game asset viewed from a distance doesn’t require the same texture detail as an object the player interacts with closely.
For optimal results, analyze your mesh’s geometry. Areas with high polygon density, like facial features or mechanical parts, benefit from higher resolution textures to avoid a disjointed appearance. Conversely, flat surfaces or areas with low polygon count can utilize lower resolution textures without noticeable degradation.
Substance Painter offers texture size presets (e.g., 1K, 2K, 4K) for convenience, but custom resolutions are also possible. Experiment with different sizes, keeping in mind the target platform’s limitations and the desired visual quality. Remember, a well-chosen texture resolution enhances the overall presentation of your 3D asset without unnecessarily burdening performance.
