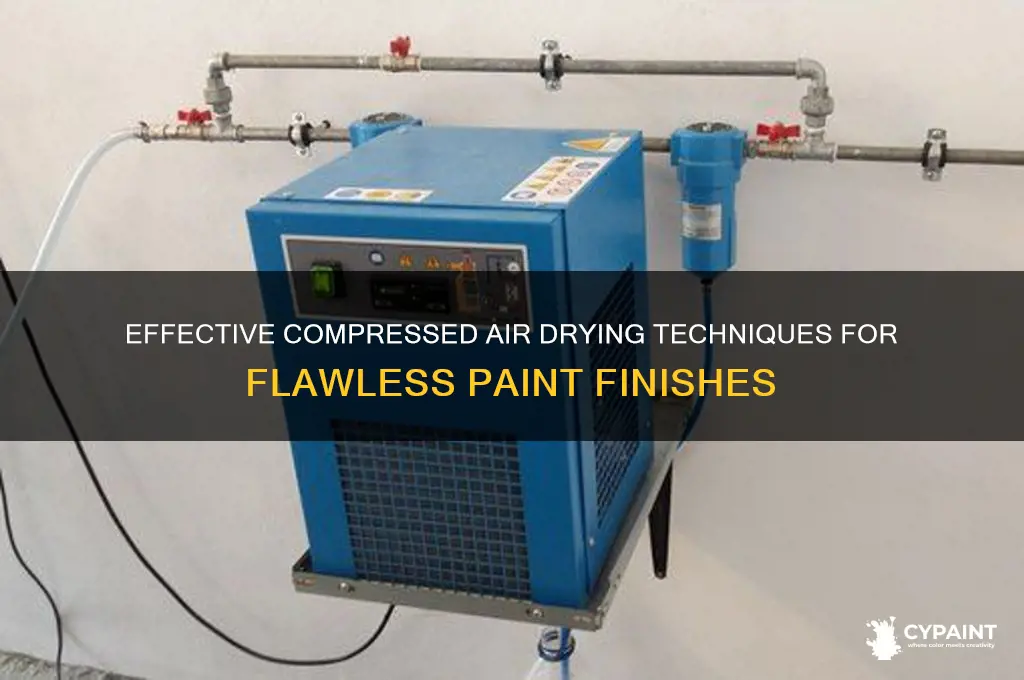

Drying compressed air is a critical step in achieving professional-quality paint finishes, as moisture in the air can lead to imperfections such as bubbling, fisheyes, or uneven coverage. When using compressed air for painting, water vapor naturally present in the air can condense within the air lines or at the spray gun, contaminating the paint and compromising the final result. To prevent this, various methods can be employed to dry compressed air, including the use of desiccant dryers, refrigerated dryers, or air filters with coalescing elements. Each method works by removing moisture from the air stream, ensuring that the compressed air delivered to the spray gun is clean, dry, and free of contaminants, ultimately enhancing the durability and appearance of the paint job. Properly dried compressed air not only improves paint adhesion but also extends the life of painting equipment by reducing corrosion and wear caused by moisture.
| Characteristics | Values |
|---|---|
| Method | Refrigerated Air Dryers, Desiccant Air Dryers, Membrane Air Dryers, Deliquescent Air Dryers |
| Dew Point | Typically -40°F to 38°F (-40°C to 3°C), depending on the method and application |
| Pressure Dew Point (PDP) | Critical for painting; ensures moisture removal to prevent defects like bubbling or fisheyes |
| Flow Rate | Varies by system size; typically 5-100 CFM (Cubic Feet per Minute) for painting applications |
| Pressure Range | 70-120 PSI (Pounds per Square Inch) for most painting systems |
| Moisture Removal Efficiency | 90-99% depending on the drying method |
| Maintenance | Regular filter changes, refrigerant checks (for refrigerated dryers), desiccant replacement (for desiccant dryers) |
| Energy Consumption | Higher for refrigerated and desiccant dryers; lower for membrane and deliquescent dryers |
| Cost | Initial investment: $500-$5,000+ depending on type and capacity; operational costs vary |
| Portability | Membrane and deliquescent dryers are more portable; refrigerated and desiccant dryers are stationary |
| Environmental Impact | Refrigerated dryers use refrigerants; desiccant dryers may require disposal of spent desiccant |
| Application Suitability | Refrigerated and desiccant dryers are best for high-volume painting; membrane and deliquescent dryers are suitable for smaller applications |
| Noise Level | Refrigerated dryers are louder; membrane and deliquescent dryers are quieter |
| Size | Compact for membrane and deliquescent dryers; larger for refrigerated and desiccant dryers |
| Lifespan | 10-15 years for refrigerated and desiccant dryers; 5-10 years for membrane and deliquescent dryers |
Explore related products
What You'll Learn
- Types of Air Dryers: Desiccant, refrigerated, and membrane dryers explained for optimal painting results
- Dew Point Control: Achieving the right dew point to prevent moisture contamination in paint
- Filter Selection: Choosing pre and after-filters to remove oil, dust, and water vapor
- Pressure Regulation: Maintaining consistent air pressure for uniform paint application and drying
- Maintenance Tips: Regular checks and cleaning to ensure long-term efficiency of drying systems
Types of Air Dryers: Desiccant, refrigerated, and membrane dryers explained for optimal painting results
Achieving the right level of dryness in compressed air is critical for high-quality painting results, as moisture can lead to defects like bubbling, fisheyes, or uneven finishes. Three primary types of air dryers—desiccant, refrigerated, and membrane—offer distinct methods to remove moisture, each suited to specific painting applications and environments. Understanding their mechanisms and optimal use cases ensures you select the right dryer for your needs.
Desiccant dryers are the go-to choice for applications requiring extremely low dew points, often down to -40°C (-40°F) or lower. These dryers use a porous material like silica gel or activated alumina to adsorb moisture from the air. The process involves passing compressed air through a desiccant bed, where water molecules adhere to the material’s surface. A key advantage is their ability to handle high temperatures and pressures, making them ideal for industrial painting setups. However, desiccant dryers require periodic regeneration of the desiccant material, either through heat or a purge of dry air, which can increase operational costs. For automotive or aerospace painting, where precision and consistency are paramount, desiccant dryers are often the preferred option.
Refrigerated dryers operate on a simpler principle: cooling the compressed air to a temperature where moisture condenses and can be removed. These dryers are cost-effective and energy-efficient, typically achieving dew points around 3-5°C (37-41°F). They work best in environments where ambient temperatures are moderate and the required dew point isn’t extremely low. However, in colder climates, refrigerated dryers may struggle to maintain consistent performance. For general painting applications, such as furniture or small-scale industrial work, refrigerated dryers offer a reliable and budget-friendly solution. Regular maintenance, including checking for refrigerant leaks and cleaning condensate traps, is essential to ensure longevity and efficiency.
Membrane dryers utilize semi-permeable membranes to separate water vapor from compressed air, allowing only dry air to pass through. These dryers are compact, silent, and require no electricity, making them ideal for portable or low-maintenance painting setups. Membrane dryers typically achieve dew points between -20°C to -40°C (-4°F to -40°F), depending on the membrane material and design. However, their capacity is limited, and they are best suited for low-flow applications. For touch-up painting or small projects where mobility and simplicity are key, membrane dryers are an excellent choice. It’s important to monitor the pre-filter condition, as contaminants can reduce the membrane’s effectiveness over time.
Selecting the right air dryer depends on your specific painting requirements, including the desired dew point, environmental conditions, and operational scale. Desiccant dryers excel in high-precision, industrial settings; refrigerated dryers offer affordability and efficiency for moderate needs; and membrane dryers provide portability and ease of use for smaller applications. By matching the dryer type to your project demands, you ensure optimal air dryness, leading to flawless painting results every time.
Hand-Stamped Jewelry: Rust-Oleum Paint, Yay or Nay?
You may want to see also
Explore related products
Dew Point Control: Achieving the right dew point to prevent moisture contamination in paint
Moisture contamination in paint can lead to defects like bubbling, fisheyes, and poor adhesion, compromising the final finish. Controlling the dew point of compressed air is critical to preventing this, as it ensures that the air remains dry enough to avoid condensation during the painting process. The dew point is the temperature at which air becomes saturated and moisture condenses, so maintaining a dew point below the lowest expected temperature in your painting environment is essential. For most industrial painting applications, a dew point of -40°C (-40°F) or lower is recommended to ensure absolute dryness.
Achieving the right dew point involves selecting and implementing the appropriate drying technology. Desiccant dryers are a common solution, using moisture-absorbing materials like silica gel or activated alumina to remove water vapor from the air. These dryers can achieve dew points as low as -70°C (-94°F), making them ideal for high-precision painting applications. For example, a two-tower desiccant dryer system alternates between drying and regenerating cycles, ensuring a continuous supply of dry air. When installing such a system, ensure proper sizing based on your air compressor’s flow rate and the desired dew point to avoid inefficiencies.
While desiccant dryers are effective, they require regular maintenance, such as replacing desiccant beads every 1–2 years, depending on usage. Refrigerated dryers are another option, cooling the air to condense moisture, but they typically achieve dew points no lower than 2°C (36°F), making them less suitable for critical painting applications. For those on a budget, membrane dryers use semi-permeable membranes to separate water vapor from the air, offering a dew point of around -40°C (-40°F) with minimal maintenance. However, they are less efficient for high-flow systems, so assess your airflow requirements before choosing this method.
Monitoring dew point is as crucial as controlling it. Invest in a dew point analyzer to continuously measure the moisture content of your compressed air. These devices provide real-time data, allowing you to adjust drying systems promptly if the dew point rises. For instance, if the dew point approaches -20°C (-4°F), it’s a sign that the desiccant may be saturated or the dryer is undersized. Regularly calibrate your analyzer to ensure accuracy, as even small deviations can lead to moisture contamination.
Finally, consider the environmental conditions of your painting area. If the ambient temperature fluctuates, especially in colder climates, insulate air lines to prevent condensation from forming on the outside of pipes. Use air filters and separators to remove oil and particulate matter, as these can exacerbate moisture-related issues. By combining the right drying technology, vigilant monitoring, and proactive environmental management, you can achieve and maintain the optimal dew point, ensuring flawless paint finishes every time.
Activate Paints in The Division 2: A Step-by-Step Guide
You may want to see also
Explore related products
Filter Selection: Choosing pre and after-filters to remove oil, dust, and water vapor
Effective filter selection is critical for achieving dry, clean compressed air in painting applications. Pre-filters act as the first line of defense, capturing larger particles like dust and rust that could damage downstream equipment. These filters typically have a 5-micron rating, ensuring they trap contaminants without restricting airflow excessively. For instance, a pre-filter with a 5-10 psi pressure drop is ideal, balancing efficiency and performance. Always install pre-filters before the air dryer to prevent premature wear and clogging of more specialized filters.
After-filters, positioned post-dryer, refine the air further by removing finer particles, residual oil aerosols, and trace moisture. A coalescing filter with a 0.01-micron rating is highly effective for oil removal, while a particulate filter with a 0.1-micron rating ensures dust-free air. For water vapor, a desiccant dryer or membrane dryer should precede the after-filter, but a final particulate filter can catch any desiccant dust or fibers. Regularly monitor pressure drops across after-filters; a 10-15 psi drop indicates the need for replacement to maintain optimal airflow.
Material compatibility is often overlooked but essential. Filters with aluminum housings are lightweight and corrosion-resistant, ideal for humid environments. For high-temperature applications, stainless steel housings offer durability. Filter elements should be made of materials like fiberglass or pleated paper, which provide high dirt-holding capacity without shedding fibers. Always check manufacturer specifications to ensure compatibility with your compressed air system and painting materials.
A comparative analysis reveals that while activated carbon filters excel at odor removal, they are less effective for oil and water vapor. Coalescing filters, on the other hand, are superior for oil removal but require regular maintenance due to their fine pore structure. For dust, pleated particulate filters offer longer lifespans compared to spun-bonded filters. The choice depends on your specific contaminants and maintenance capacity. For example, a body shop with high oil carryover benefits from a coalescing filter, while a custom paint studio may prioritize particulate filters for dust-sensitive finishes.
In conclusion, filter selection is a nuanced process requiring careful consideration of contaminant types, system demands, and maintenance schedules. Pre-filters protect the system, while after-filters ensure the air quality needed for flawless painting results. By matching filter types to specific contaminants and monitoring performance, you can achieve consistent, high-quality finishes while extending the lifespan of your compressed air equipment. Always consult with filter manufacturers or industry experts to tailor your setup to your unique needs.
The Slave Ship: A Powerful Symbolist Painting
You may want to see also
Explore related products
Pressure Regulation: Maintaining consistent air pressure for uniform paint application and drying
Fluctuating air pressure during painting leads to uneven coats, orange peel textures, and extended drying times. Achieving consistent pressure requires a two-pronged approach: precise regulation and vigilant monitoring. Install a high-quality air pressure regulator directly after your air compressor's output. Set the regulator to the manufacturer's recommended PSI for your paint type and application method, typically ranging from 20-40 PSI for HVLP systems and 30-50 PSI for conventional spray guns.
Regularly calibrate the regulator using a reliable gauge to ensure accuracy.
Beyond the regulator, consider the entire air delivery system. Undersized hoses or restrictive fittings create pressure drops, negating your regulator's efforts. Opt for hoses with diameters matching your spray gun's requirements, typically 1/4" or 3/8". Keep hoses free from kinks and debris, and ensure fittings are securely tightened to prevent leaks. Think of your air supply as a highway: smooth, unobstructed flow is crucial for consistent pressure delivery.
Regularly inspect your system for leaks, as even small ones can significantly impact pressure stability.
For ultimate control, invest in a water trap and air dryer. Moisture in compressed air condenses at lower temperatures, leading to pressure fluctuations and paint defects. A water trap removes bulk moisture, while a refrigerant or desiccant dryer ensures bone-dry air, crucial for achieving a flawless finish. Remember, moisture is the enemy of consistent pressure and paint quality.
Finally, don't underestimate the power of practice and observation. Fine-tune your pressure settings based on the specific paint, surface, and environmental conditions. Pay attention to spray pattern consistency, paint flow, and drying times. With careful regulation, vigilant monitoring, and a touch of experimentation, you'll master the art of consistent air pressure, resulting in professional-looking paint jobs every time.
Can Zinsser Paint Be Applied to Finished Surfaces? A Guide
You may want to see also
Explore related products
Maintenance Tips: Regular checks and cleaning to ensure long-term efficiency of drying systems
Drying compressed air for painting isn’t just about installing the right equipment—it’s about keeping that equipment running efficiently over time. Neglecting maintenance leads to moisture buildup, which ruins paint finishes and damages tools. Regular checks and cleaning are the backbone of a reliable drying system, ensuring consistent air quality and preventing costly downtime.
Start with a routine inspection schedule. Monthly visual checks for leaks, corrosion, or unusual wear on dryers, filters, and piping are essential. Pay attention to pressure drop indicators; a sudden increase suggests clogged filters or failing desiccant beds. Quarterly, test dew point levels using a portable hygrometer to verify the system’s performance. If dew points exceed -40°F (-40°C), investigate immediately—moisture at this stage will sabotage paint adhesion.
Cleaning is just as critical as inspection. Desiccant-based dryers require desiccant replacement every 6–12 months, depending on usage and ambient humidity. For refrigerated dryers, clean condenser coils quarterly to prevent heat exchange inefficiency. Use compressed air (ironic, but effective) to blow debris from coils, and ensure condensate drains are clear of obstructions. Clogged drains lead to water backup, defeating the drying process entirely.
Don’t overlook pre- and post-filters. Replace particulate filters every 3–6 months, or sooner if pressure drops indicate clogging. Coalescing filters, which trap oil and water aerosols, should be serviced annually or when differential pressure gauges signal a problem. For systems in high-humidity environments, consider adding a secondary dryer or drain trap to catch residual moisture.
Finally, document everything. Maintain a log of inspections, cleanings, and replacements. This not only ensures accountability but also helps identify patterns—like frequent filter clogs—that signal underlying issues. Think of maintenance as an investment, not an expense. A well-maintained drying system delivers consistent results, protects your equipment, and saves money by avoiding emergency repairs or rework caused by poor air quality.
Avoid Toxic Hazards: Why You Shouldn't Eat Paint Tail Sculpt
You may want to see also
Frequently asked questions
Drying compressed air removes moisture, which can cause paint defects like bubbling, fisheyes, or poor adhesion. Dry air ensures a smooth, professional finish and prevents contamination in the paint job.
Common methods include using refrigerant dryers, desiccant dryers, or air filters with coalescing and particulate filters. Refrigerant dryers cool the air to condense moisture, while desiccant dryers use absorbent materials to remove water vapor.
Compressed air for painting should have a dew point of at least -40°F (-40°C) or lower to ensure minimal moisture. This level of dryness prevents water vapor from recondensing and affecting the paint quality.
