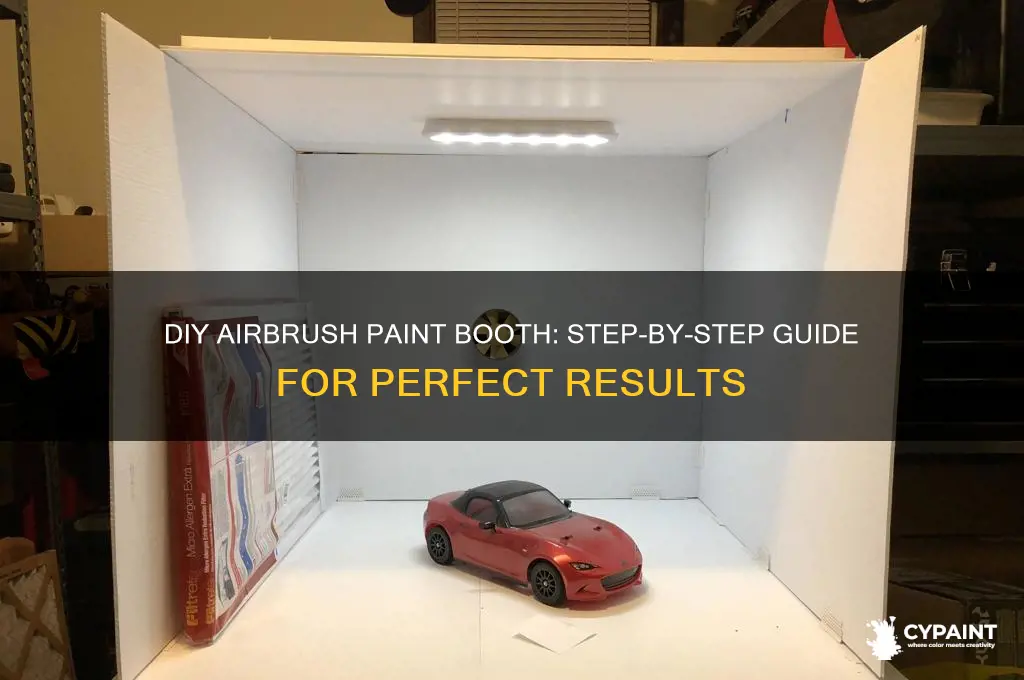

Building an airbrush paint booth is an essential step for anyone looking to achieve professional, high-quality finishes while minimizing overspray and maintaining a clean workspace. A well-designed booth not only improves the efficiency of your painting projects but also ensures safety by containing fumes and dust. To start, you’ll need to choose a suitable location, ideally a well-ventilated area with enough space for your projects. The booth itself can be constructed using materials like plywood, PVC, or even repurposed furniture, with a focus on creating a sealed environment to capture overspray. Proper ventilation is critical, so incorporating a fan or exhaust system with filters is a must. Additionally, lighting and a smooth, easy-to-clean interior surface will enhance your workflow. With careful planning and attention to detail, you can create a functional and effective airbrush paint booth tailored to your needs.
Explore related products
What You'll Learn
- Booth Size & Ventilation: Determine workspace needs, calculate CFM, choose exhaust fan, ducting, and intake filters
- Materials & Framing: Select wood/PVC, build frame, add walls, seal gaps, ensure structural stability
- Filtration System: Install pre-filters, HEPA filters, activated carbon, maintain airflow efficiency
- Lighting & Accessibility: Position LED lights, add doors/windows, ensure easy cleaning access
- Safety & Compliance: Ground electrical, use fire-resistant materials, follow local codes, install spark arrestors
Booth Size & Ventilation: Determine workspace needs, calculate CFM, choose exhaust fan, ducting, and intake filters
When building an airbrush paint booth, determining the appropriate booth size is the first critical step. The size of your booth should be dictated by the scale of your projects and the available workspace. For small-scale models or miniatures, a compact booth (24” x 24” x 24”) may suffice, while larger projects like car parts or furniture will require a more spacious setup (4’ x 4’ x 6’ or larger). Ensure the booth is tall enough to accommodate your projects and allows for comfortable movement of the airbrush. Measure your workspace and allocate enough room for the booth, keeping in mind that proper ventilation requires clearance around the unit for airflow.
Once the booth size is determined, calculating the required CFM (Cubic Feet per Minute) is essential for effective ventilation. CFM is calculated based on the booth’s volume and the desired number of air changes per hour (ACH). A good rule of thumb is 2-4 ACH for airbrushing. For example, a booth with a volume of 100 cubic feet would need 200-400 CFM (100 x 2-4). Use the formula: CFM = (Booth Volume x ACH) / 60. This ensures that paint fumes and overspray are efficiently removed, protecting your health and maintaining a clean workspace.
Choosing the right exhaust fan is crucial for achieving the calculated CFM. Select a fan rated for the required CFM and suitable for paint booth applications. Inline duct fans are a popular choice due to their efficiency and quiet operation. Ensure the fan is compatible with the size of your ducting and can handle the static pressure of your system. For example, a 6-inch inline fan may be adequate for a small booth, while larger setups might require an 8-inch or 10-inch fan. Always opt for a fan with a higher CFM rating than your calculation to account for losses in the ducting system.
Ducting plays a vital role in directing exhaust air safely outdoors. Use rigid or semi-rigid ducting to minimize airflow resistance and maximize efficiency. The duct size should match the exhaust fan’s outlet, typically 4 to 8 inches in diameter. Ensure the ducting is properly sealed to prevent leaks, and route it directly to an exterior vent. Avoid sharp bends or long runs, as these can reduce airflow. If your workspace doesn’t allow for direct outdoor venting, consider using a carbon filter to neutralize fumes before recirculating air.
Finally, intake filters are essential for maintaining clean air within the booth and protecting your projects from dust and debris. Pre-filters and HEPA filters can be installed on the intake side to capture particles before they enter the booth. Additionally, consider adding an intake damper to balance airflow and prevent negative pressure in your workspace. Proper filtration not only ensures a high-quality finish on your projects but also extends the life of your exhaust fan and ducting system by reducing the intake of contaminants.
Who Paints Local Soccer and Football Fields? Uncovering the Artists
You may want to see also
Explore related products
Materials & Framing: Select wood/PVC, build frame, add walls, seal gaps, ensure structural stability
When embarking on building an airbrush paint booth, the first critical step is Materials & Framing. Begin by selecting the right materials for your frame. Wood is a popular choice due to its affordability, ease of use, and structural stability. Opt for plywood or medium-density fiberboard (MDF) for the walls and panels, as they provide a smooth surface for painting. Alternatively, PVC is lightweight, moisture-resistant, and easy to clean, making it ideal for a booth that may be exposed to solvents or humidity. PVC is also simpler to cut and assemble, especially for beginners. Consider your workspace environment and budget when deciding between the two materials.
Once you’ve chosen your material, build the frame to create the skeleton of your booth. Start by measuring and cutting the pieces for the base, sides, top, and back panels. For a standard booth, a rectangular or box-like structure works well, with dimensions typically around 3 feet deep, 4 feet wide, and 6 feet tall. Assemble the frame using screws or PVC connectors, ensuring all corners are square for stability. If using wood, pre-drill holes to prevent splitting. Reinforce the corners with additional supports or brackets to handle the weight of the walls and any installed filtration systems.
Next, add the walls to enclose the frame. Cut panels to fit the frame’s dimensions, leaving a small gap at the bottom for airflow if your design includes a filtration system. Attach the panels to the frame using screws, adhesive, or PVC cement, depending on your material choice. For the front, consider using a clear acrylic or plexiglass panel to allow visibility while painting. If using wood, sand the panels smooth to avoid imperfections in your paintwork. Ensure all panels are securely fastened to maintain structural integrity.
Sealing gaps is crucial to prevent overspray from escaping and to maintain proper airflow within the booth. Use silicone caulk or weatherstripping to seal joints and edges where panels meet the frame. Pay special attention to corners and seams, as these are common areas for leaks. If your booth includes a filtration system, ensure the intake and exhaust openings are properly sealed around the filters to maximize efficiency. For added protection, line the interior walls with plastic sheeting or paper to catch overspray and simplify cleanup.
Finally, ensure structural stability by testing the booth’s strength and making necessary adjustments. Shake the frame gently to check for wobbling or weak points, and reinforce any areas that feel unstable. If the booth is tall or heavy, add legs or a base with adjustable feet to level it on uneven surfaces. For larger booths, consider adding diagonal braces or a crossbar to distribute weight evenly. Once assembled, place the booth in its designated location and ensure it remains steady during use, especially if you’ll be working with heavy equipment or filters. A stable, well-built frame is the foundation of a functional and safe airbrush paint booth.
Quickly Auto Copy Photos: Desktop to Paint
You may want to see also
Explore related products
Filtration System: Install pre-filters, HEPA filters, activated carbon, maintain airflow efficiency
When building an airbrush paint booth, a robust filtration system is essential to capture harmful particles, fumes, and overspray while maintaining optimal airflow. Start by installing pre-filters as the first line of defense. Pre-filters are designed to trap larger particles like dust and debris, preventing them from clogging more expensive filters downstream. These are typically made of fiberglass or synthetic materials and are easy to replace. Position pre-filters at the intake point of your booth to ensure they capture contaminants before they reach the finer filtration stages. Regularly inspect and replace pre-filters to maintain efficiency, as clogged pre-filters can restrict airflow and reduce the overall effectiveness of your system.
Next, incorporate HEPA filters (High-Efficiency Particulate Air filters) to capture microscopic particles, including paint pigments and fine dust. HEPA filters are rated to remove at least 99.97% of particles as small as 0.3 microns, making them ideal for airbrush applications. Install HEPA filters after the pre-filters to ensure they operate at peak efficiency. Proper placement is critical—ensure the filters are securely fitted to prevent air leakage. While HEPA filters are more expensive, they are a non-negotiable component for a professional-grade paint booth, as they protect both the user and the environment from hazardous particles.
To address fumes and odors, integrate activated carbon filters into your system. Activated carbon is highly effective at adsorbing volatile organic compounds (VOCs) and solvents commonly found in paint and thinners. Place the activated carbon filters after the HEPA filters to ensure the air is already free of particulate matter before it passes through the carbon. This sequence maximizes the lifespan of the carbon filter, as it won’t be prematurely clogged by particles. Regularly monitor and replace activated carbon filters, as their effectiveness diminishes over time, especially in high-usage scenarios.
Maintaining airflow efficiency is crucial for the performance of your filtration system. Ensure your booth has a balanced airflow design, with adequate intake and exhaust capacity. Use a fan or blower rated for the size of your booth to create a consistent airflow pattern, typically from the bottom or side of the booth and out through the filtration system. Monitor airflow using an anemometer to ensure it meets the recommended range (usually 100-150 CFM for small booths). Avoid overloading the filters by ensuring the booth is properly sealed, as leaks can reduce efficiency and allow contaminants to escape.
Finally, establish a maintenance routine to keep your filtration system operating at peak performance. Schedule regular inspections of all filters, replacing them according to the manufacturer’s guidelines or when they appear clogged. Clean the booth interior periodically to prevent buildup of paint residue, which can impede airflow. Additionally, inspect fans and ductwork for obstructions or damage. By prioritizing maintenance, you’ll extend the life of your filtration system and ensure a safe, efficient working environment for your airbrush projects.
Exterior Satin Paint: Pros, Cons, and Tips
You may want to see also
Explore related products
Lighting & Accessibility: Position LED lights, add doors/windows, ensure easy cleaning access
When building an airbrush paint booth, lighting is crucial for achieving precise and consistent results. Position LED lights strategically to eliminate shadows and provide uniform illumination across the work area. Install LED strips or panels on the ceiling and sides of the booth, ensuring they are bright enough to mimic natural daylight (around 5000K color temperature). Avoid placing lights directly behind you to prevent glare on the work surface. Consider adding adjustable fixtures to direct light where needed, especially when working on detailed projects. Proper lighting not only enhances visibility but also reduces eye strain during extended painting sessions.
Accessibility is another key factor in designing a functional paint booth. Incorporate doors or windows to allow easy entry and exit while minimizing dust and debris intrusion. Use lightweight, transparent materials like acrylic or polycarbonate for windows to maintain visibility and let in additional natural light. If space permits, install a sliding or hinged door for convenient access to the booth. Ensure the door seals tightly to maintain proper airflow and containment of paint particles. For smaller booths, a removable front panel can also serve as an effective alternative to a traditional door.
To ensure easy cleaning access, design the booth with removable or hinged panels that allow you to reach all surfaces effortlessly. Use smooth, non-porous materials like metal or plastic for the interior walls and floor to simplify wiping down paint overspray. Incorporate a sloped floor with a drain or a removable tray to collect excess paint and solvents, making cleanup faster and more efficient. Avoid hard-to-reach corners by opting for a simple, modular design that can be disassembled for thorough cleaning. Regular maintenance will prolong the life of your booth and keep it functioning optimally.
Finally, combine lighting and accessibility by placing switches or controls for the LED lights outside the booth or within easy reach. This allows you to adjust lighting without disturbing your setup or contaminating the workspace. If your booth has windows, ensure they are positioned to complement the artificial lighting, creating a well-lit environment without hotspots. By prioritizing both lighting and accessibility in your design, you’ll create a paint booth that is not only efficient but also user-friendly, enhancing your airbrushing experience.
The Golden Gate Bridge: A Painting History
You may want to see also
Explore related products
Safety & Compliance: Ground electrical, use fire-resistant materials, follow local codes, install spark arrestors
When building an airbrush paint booth, prioritizing safety and compliance is paramount to protect both the operator and the surrounding environment. One of the first critical steps is to ground all electrical components to prevent static electricity buildup, which can ignite flammable paint fumes. Use a dedicated grounding wire connected to a grounding rod or an existing grounded electrical system. Ensure all electrical outlets, lights, and equipment within the booth are properly grounded and inspected by a qualified electrician. This minimizes the risk of electrical fires and shocks, especially in a space where flammable materials are present.
Another essential safety measure is to use fire-resistant materials throughout the construction of the booth. Opt for materials like gypsum board, metal, or fire-rated plywood for walls, ceilings, and work surfaces. Avoid flammable materials such as untreated wood or fabric, which can exacerbate a fire if an accident occurs. Additionally, incorporate fire-resistant insulation and sealants to further enhance the booth's ability to contain and resist fire. This not only protects the booth itself but also limits the spread of fire to adjacent areas.
Following local codes and regulations is non-negotiable when building an airbrush paint booth. Research and adhere to local building, fire, and environmental codes to ensure compliance. This may include obtaining permits, meeting ventilation requirements, and ensuring proper waste disposal methods for paint and solvents. Consult with local authorities or a professional to confirm that your design meets all legal standards. Failure to comply can result in fines, shutdowns, or increased liability in case of accidents.
To further mitigate fire risks, install spark arrestors in the booth's ventilation system. Spark arrestors prevent sparks or hot particles from entering the exhaust stream, where they could ignite paint fumes. These devices are particularly important if the booth uses equipment that generates heat or sparks, such as air compressors or drying lamps. Regularly inspect and clean spark arrestors to ensure they function effectively. Combining this with an explosion-proof exhaust fan enhances safety by minimizing ignition sources.
Finally, integrate safety practices into the booth's design and daily operation. Install smoke detectors, fire extinguishers, and clearly marked emergency exits within or near the booth. Train users on proper handling of flammable materials, ventilation protocols, and emergency response procedures. Regularly maintain all equipment, including filters, fans, and grounding systems, to ensure ongoing compliance and safety. By addressing these aspects, you create a secure environment for airbrushing while adhering to regulatory standards.
Goya's Third of May 1808: Unraveling the Artistic Rebellion
You may want to see also
Frequently asked questions
The essential components include a well-ventilated enclosure (made of materials like wood, PVC, or acrylic), an exhaust fan or ventilation system, air filters (prefilter and activated carbon filter), a work surface, lighting, and a power source for the fan and lights.
Proper ventilation requires an exhaust fan capable of moving air at a rate of at least 200-300 CFM (cubic feet per minute). Position the fan at the top of the booth to pull fumes upward, and use ducting to direct exhaust outside. Include intake vents at the bottom to maintain airflow.
Safe and effective materials include plywood, MDF (for the structure), acrylic or plexiglass (for visibility), and metal or PVC (for framing). Avoid materials that can easily catch fire or degrade from paint fumes, such as untreated cardboard or certain plastics.
