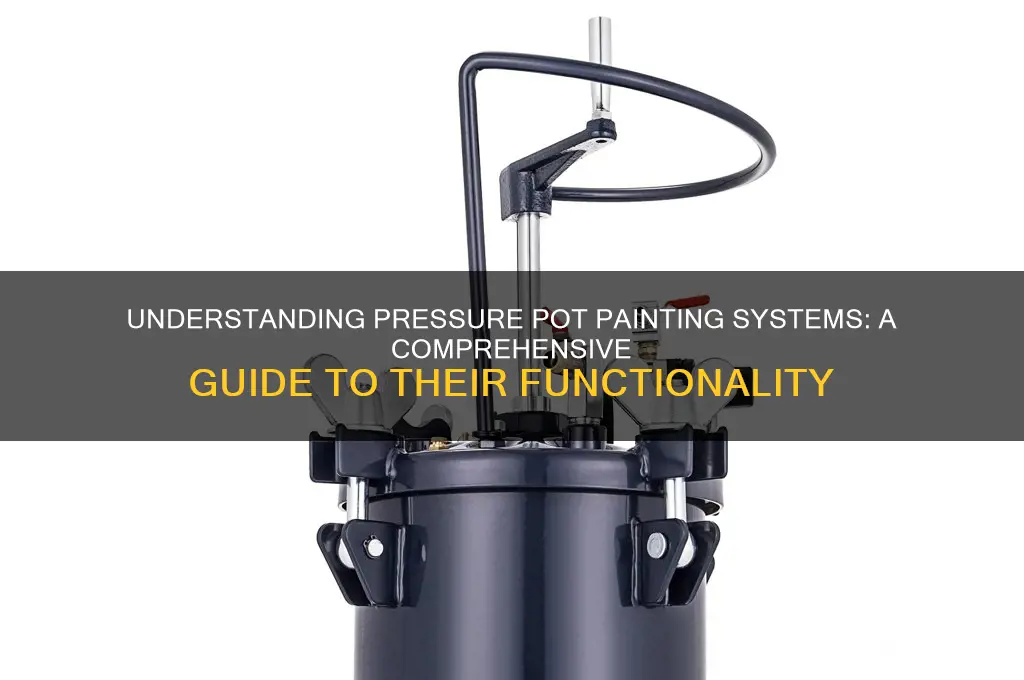

Pressure pot painting systems, also known as pressure feed spray systems, are advanced tools used in industrial and automotive painting to achieve a high-quality, even finish. These systems operate by pressurizing a sealed container, or pot, filled with paint, which forces the paint through a hose to a spray gun. The pressure ensures a consistent flow of paint, allowing for precise control over the application and reducing overspray. By maintaining a steady pressure, typically using compressed air, the system atomizes the paint into fine particles, resulting in a smooth and uniform coating. This method is particularly effective for large-scale projects or applications requiring durability and efficiency, as it minimizes material waste and maximizes coverage. Understanding the mechanics of pressure pot painting systems highlights their role in achieving professional-grade finishes in various industries.
| Characteristics | Values |
|---|---|
| Operating Principle | Utilizes compressed air to force paint from a pressurized pot through a hose and spray gun. |
| Pressure Range | Typically operates between 20 to 80 PSI (pounds per square inch). |
| Paint Container | Pressurized pot or reservoir designed to hold and pressurize the paint. |
| Air Source | Requires an external air compressor to supply compressed air. |
| Paint Flow Control | Regulated by adjusting the air pressure and fluid needle settings on the spray gun. |
| Application Efficiency | Provides consistent paint flow and atomization, reducing overspray. |
| Material Compatibility | Suitable for a wide range of coatings, including primers, paints, and lacquers. |
| Cleanup | Requires thorough cleaning of the pot, hose, and spray gun to prevent clogs. |
| Safety Considerations | Must follow safety protocols to avoid over-pressurization and accidents. |
| Common Applications | Automotive, industrial, and woodworking projects requiring high-quality finishes. |
| Advantages | Improved material transfer, reduced waste, and better finish quality. |
| Disadvantages | Higher initial setup cost and requires more maintenance than traditional systems. |
Explore related products
What You'll Learn
- Pressure Pot Basics: Overview of pressure pot components and their functions in painting systems
- Air Pressure Regulation: How air pressure is controlled to ensure consistent paint application
- Paint Flow Mechanism: Process of paint delivery from the pot to the spray gun
- Material Mixing: Role of pressure in mixing paint and reducing agents effectively
- Safety Features: Key safety measures to prevent accidents in pressure pot systems
Pressure Pot Basics: Overview of pressure pot components and their functions in painting systems
Pressure pot painting systems are essential tools in industrial and automotive painting applications, providing a controlled and efficient method for applying coatings. At the heart of these systems is the pressure pot, a specialized container designed to hold and pressurize paint or other coating materials. Understanding the basic components of a pressure pot and their functions is crucial for anyone looking to utilize this technology effectively. The primary components include the pot itself, the pressure regulation system, the fluid delivery mechanism, and safety features. Each of these elements plays a vital role in ensuring consistent and high-quality paint application.
The pressure pot is the main reservoir that holds the paint or coating material. It is typically constructed from durable materials like stainless steel or aluminum to withstand the pressures involved. The pot is sealed with a lid that includes fittings for air pressure input, fluid output, and safety valves. The interior is designed to minimize material waste and ensure thorough mixing, often featuring agitators or liners to keep the paint homogeneous. The size of the pot can vary depending on the application, ranging from small units for detail work to larger ones for high-volume painting tasks.
The pressure regulation system is responsible for maintaining the correct pressure inside the pot, which is critical for consistent material flow. This system includes an air compressor that supplies pressurized air to the pot, a pressure gauge to monitor the internal pressure, and a regulator to adjust it. Proper pressure ensures that the paint is atomized correctly when it exits the spray gun, resulting in an even and smooth finish. Too little pressure can lead to uneven coverage, while too much can cause overspray and waste.
The fluid delivery mechanism connects the pressure pot to the spray gun and ensures the paint is delivered efficiently. This includes hoses, fittings, and filters to prevent contaminants from reaching the spray gun. The hoses are typically made of durable materials to handle the pressurized paint, and filters are used to remove any debris that could clog the spray gun or affect the finish. The delivery system must be properly maintained to avoid leaks and ensure consistent performance.
Safety features are integral to pressure pot systems to protect both the operator and the equipment. These include pressure relief valves that prevent over-pressurization, which could lead to pot failure or explosion. Additionally, safety locks on the lid ensure that the pot cannot be opened under pressure, and grounding straps prevent static electricity buildup, which could ignite flammable materials. Understanding and regularly inspecting these safety components is essential for safe operation.
In summary, a pressure pot painting system relies on the coordinated function of its key components: the pressure pot, pressure regulation system, fluid delivery mechanism, and safety features. Each element must be properly maintained and operated to achieve optimal results. By mastering the basics of these components, users can ensure efficient, consistent, and safe paint application in various professional settings.
Where Van Gogh Painted Sunflowers: Unveiling the Iconic Location
You may want to see also
Explore related products
Air Pressure Regulation: How air pressure is controlled to ensure consistent paint application
Air pressure regulation is a critical component of pressure pot painting systems, ensuring that paint is applied consistently and efficiently. These systems rely on a precise balance of air pressure to atomize the paint and deliver it to the surface being coated. The process begins with an air compressor, which generates the necessary air pressure. This compressed air is then directed into the pressure pot, a sealed container holding the paint. The pressure inside the pot must be carefully controlled to maintain a consistent flow of paint to the spray gun. Regulators are used to adjust and monitor the air pressure, ensuring it remains within the optimal range for the specific paint and application requirements.
The air pressure regulator is a key device in this setup, allowing operators to fine-tune the pressure delivered to the pressure pot. It typically consists of a gauge to display the current pressure and an adjustment knob to increase or decrease it. Proper calibration of the regulator is essential, as too much pressure can lead to overspray and wasted paint, while too little pressure results in poor atomization and uneven coverage. Most systems are designed to operate within a specific pressure range, often between 20 to 40 PSI (pounds per square inch), depending on the viscosity of the paint and the desired finish. Regular checks and adjustments ensure the system performs optimally.
Another important aspect of air pressure regulation is the use of pressure relief valves. These safety devices prevent over-pressurization of the system, which could lead to equipment damage or failure. If the pressure inside the pot exceeds a predetermined threshold, the relief valve automatically releases excess air, maintaining a safe operating environment. This feature is particularly crucial in industrial settings where high-volume painting is performed continuously. Operators must be trained to monitor these valves and understand the system's pressure limits to avoid accidents.
Consistent paint application also depends on the stability of air pressure during operation. Fluctuations in pressure can cause variations in spray pattern and paint thickness, compromising the quality of the finish. To address this, pressure pot systems often incorporate air filters and water traps to remove contaminants and moisture from the compressed air. Clean, dry air ensures smooth operation of the regulator and prevents clogs or inconsistencies in the spray gun. Additionally, using high-quality hoses and fittings minimizes pressure drops between the compressor and the pressure pot.
Finally, advanced pressure pot systems may include digital controls and automated pressure monitoring for enhanced precision. These systems can adjust air pressure in real time based on feedback from sensors, ensuring consistent application even when external factors like temperature or humidity change. Such technology is especially valuable in high-precision industries like automotive or aerospace manufacturing, where even minor deviations in paint thickness can affect the final product's quality. By integrating these features, pressure pot painting systems achieve reliable and uniform results, making them indispensable tools in professional painting applications.
Painting a Plasma Orb: Step-by-Step Guide for Models
You may want to see also
Explore related products
Paint Flow Mechanism: Process of paint delivery from the pot to the spray gun
Pressure pot painting systems operate by utilizing a pressurized container, or "pot," to deliver paint to a spray gun in a controlled and efficient manner. The paint flow mechanism begins with the paint being stored under pressure within the sealed pot. This pot is typically made of durable materials like steel or aluminum to withstand the internal pressure, which is generated by an air compressor connected to the system. The pressure inside the pot forces the paint to flow through a regulated pathway toward the spray gun, ensuring a consistent and steady supply.
The process starts when the operator activates the spray gun, which opens a valve allowing pressurized air to enter the pot. This air pressure acts directly on the surface of the paint, pushing it through a hose connected to the bottom of the pot. The hose is designed to withstand high pressure and is often insulated to maintain the paint’s viscosity and prevent clogging. As the paint travels through the hose, it remains under constant pressure, ensuring a smooth and uninterrupted flow to the spray gun.
At the spray gun, the paint enters through a nozzle or inlet, where it mixes with atomizing air. This air, supplied separately from the compressor, breaks the paint into fine particles, creating a sprayable mist. The operator controls the flow rate and spray pattern by adjusting the pressure settings on both the pot and the spray gun. This dual-pressure system ensures precise application, allowing for even coverage and minimal waste.
A critical component of the paint flow mechanism is the regulator, which maintains consistent pressure within the pot. This regulator ensures that the paint is delivered at a steady rate, regardless of the pot’s fill level or external conditions. Additionally, filters are often integrated into the system to remove contaminants from the paint, preventing clogs and ensuring a high-quality finish.
Finally, the return of excess paint to the pot is managed through a recirculation system, which keeps the paint agitated and prevents settling. This recirculation ensures that the paint remains homogeneous, maintaining its consistency throughout the application process. Together, these elements of the paint flow mechanism make pressure pot painting systems highly efficient and reliable for industrial and professional painting applications.
Kill Markers: Where Do They Belong on a Plane?
You may want to see also
Explore related products
Material Mixing: Role of pressure in mixing paint and reducing agents effectively
Pressure pot painting systems leverage the principles of pressurized material mixing to ensure thorough blending of paint and reducing agents, resulting in a consistent and high-quality finish. In these systems, pressure plays a pivotal role in agitating and combining the components effectively. The process begins by placing the paint and reducing agents into a sealed pressure pot, which is then pressurized using compressed air. This elevated pressure forces the materials to mix more vigorously than traditional methods, breaking down any settled pigments or additives that may have separated over time. The result is a homogeneous mixture that ensures even application and optimal performance during spraying.
One of the key advantages of using pressure in material mixing is its ability to reduce the need for manual agitation. Without pressure, paint and reducing agents often require constant stirring or shaking to achieve uniformity, which can be time-consuming and inconsistent. In a pressure pot system, the compressed air creates a turbulent environment inside the pot, effectively dispersing the reducing agents throughout the paint. This not only saves time but also minimizes the risk of human error, ensuring that the mixture is always ready for application without additional preparation.
Pressure also enhances the solubility and dispersion of reducing agents within the paint. Reducing agents, such as thinners or solvents, are essential for adjusting the viscosity of the paint to suit the spraying equipment. Under pressure, these agents are more readily absorbed into the paint, creating a smoother and more stable mixture. This is particularly important in industrial or automotive applications, where precise control over paint consistency is critical for achieving professional results. The pressurized environment ensures that the reducing agents are evenly distributed, preventing issues like clogging or uneven spray patterns.
Furthermore, pressure pot systems allow for precise control over the mixing ratio of paint and reducing agents. By adjusting the pressure and volume of materials in the pot, operators can fine-tune the mixture to meet specific application requirements. This level of control is especially beneficial when working with specialized coatings or custom formulations. The consistent pressure ensures that the ratio remains uniform throughout the entire batch, eliminating variations that could compromise the final finish.
In summary, pressure is a fundamental component of material mixing in pressure pot painting systems, enabling efficient and effective blending of paint and reducing agents. It eliminates the need for manual agitation, enhances the dispersion of reducing agents, and provides precise control over the mixing process. By harnessing the power of pressure, these systems deliver superior results, making them indispensable in industries where quality and consistency are paramount.
Does Rule of Thirds Enhance Composition in Painting? A Deep Dive
You may want to see also
Explore related products
Safety Features: Key safety measures to prevent accidents in pressure pot systems
Pressure pot painting systems are highly efficient for applying coatings to various surfaces, but they also pose significant risks if not operated safely. Implementing robust safety features is essential to prevent accidents and ensure the well-being of operators. One of the primary safety measures is the pressure relief valve, which is designed to release excess pressure if the system exceeds its safe operating limits. This valve is critical in preventing over-pressurization, which could lead to equipment failure or explosions. Regular inspection and maintenance of this valve are necessary to ensure it functions correctly when needed.
Another crucial safety feature is the interlocking safety system, which prevents the pressure pot from operating unless all safety conditions are met. This system typically includes mechanisms that ensure the lid is securely closed and locked before the system can be pressurized. If the lid is not properly sealed, the interlock prevents activation, minimizing the risk of accidental exposure to high-pressure materials. Additionally, some systems incorporate sensors that detect improper sealing and trigger alarms or shutdowns to alert operators.
Ventilation systems are also vital in pressure pot painting setups to protect operators from inhaling hazardous fumes and vapors. These systems ensure that the workspace is continuously supplied with fresh air while expelling contaminated air safely. Proper ventilation not only reduces health risks but also lowers the likelihood of flammable vapor accumulation, which could ignite under pressure. Ventilation systems should comply with local safety regulations and be regularly checked for efficiency.
The use of personal protective equipment (PPE) is a fundamental safety measure for operators working with pressure pot systems. This includes wearing chemical-resistant gloves, safety goggles, and respirators to protect against skin contact, eye exposure, and inhalation of harmful substances. PPE must be appropriately fitted and regularly inspected for wear and tear. Training operators on the correct use and maintenance of PPE is equally important to maximize its effectiveness.
Finally, emergency shutdown systems are essential for immediate response in case of malfunctions or accidents. These systems allow operators to quickly depressurize the pot and halt operations, reducing the risk of injury or damage. Emergency shutdown buttons should be clearly marked, easily accessible, and tested periodically to ensure reliability. Combining these safety features with comprehensive operator training and adherence to standard operating procedures creates a robust framework for preventing accidents in pressure pot painting systems.
Breathing Downfall Paint Dust: Understanding the Health Risks
You may want to see also
Frequently asked questions
A pressure pot painting system is a specialized tool used for applying coatings, such as paint or primer, by pressurizing the material in a sealed pot. Unlike traditional methods like spray guns or brushes, it forces the paint through a hose and spray gun using compressed air, ensuring a consistent and even application, especially for high-build coatings or in industrial settings.
The system achieves higher transfer efficiency by maintaining a constant pressure on the paint, reducing overspray and ensuring more material adheres to the surface. This is because the pressurized pot keeps the paint fluid and evenly distributed, minimizing waste and maximizing coverage.
The main components include the pressure pot (which holds the paint), an air regulator to control pressure, a spray gun for application, hoses to connect the system, and a compressed air source. Some systems also feature agitators to keep the paint mixed and filters to prevent contaminants.
While versatile, pressure pot systems work best with high-viscosity materials like primers, epoxy coatings, and heavy-duty paints. They may not be ideal for thin or water-based paints, as these can be applied more efficiently with traditional spray guns or other methods.
Always wear protective gear, including respirators, gloves, and goggles, to avoid exposure to chemicals. Ensure the system is properly vented to prevent pressure buildup, and inspect all components for leaks or damage before use. Follow manufacturer guidelines for pressure limits and material compatibility to avoid accidents.
