Leo Martínez
3D printing has opened up new avenues for creators, allowing them to bring their complex and intricate designs to life. However, the process doesn't end with just printing; it's only the beginning. To achieve a smooth and flawless finish, sanding is often considered an essential step before painting 3D-printed objects. While it can be a tedious and time-consuming task, it is crucial for creating a uniform surface and ensuring the paint adheres well. So, let's delve into the world of 3D printing and explore the ins and outs of sanding and painting these unique creations.
| Characteristics | Values |
|---|---|
| Is sanding necessary? | Sanding is not always necessary, but it is recommended to get a smooth finish and remove print lines. |
| When to sand | Sand before applying a primer or paint to achieve a smooth surface. Sanding can also be done between coats of primer to achieve a finer finish. |
| Sanding tools | Sandpaper with varying grit sizes, ranging from 100-800 grit. Higher grit sizes are used for finer sanding. Sanding can also be done with power tools such as an orbital sander or a rotary multi-tool. |
| Preparation | Wash the 3D print with soap and water to remove glue, residue, and dust. Ensure the part is thoroughly dry before sanding and painting. |
| Painting process | Prime the 3D print, let it dry, then paint with light coats. Finally, apply a varnish coat to protect the paint. |
| Safety | Paint in a well-ventilated area and wear a mask to avoid inhaling dust and fumes. Wear gloves to avoid transferring hand oils or sweat onto the print. |
Explore related products
What You'll Learn

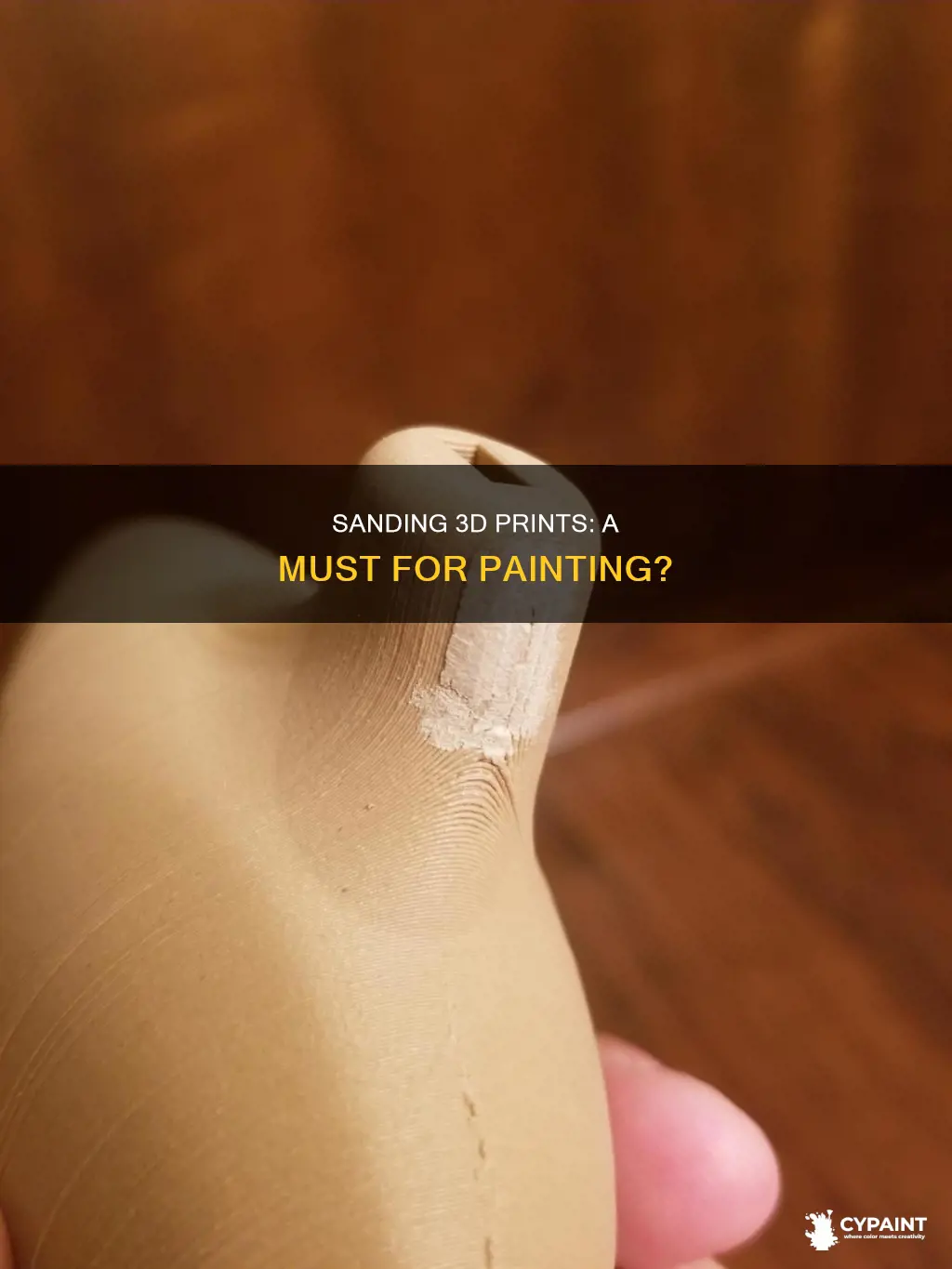

Sanding is necessary to remove print lines
Sanding is a crucial step in preparing your 3D print for painting, especially if you want to achieve a smooth and polished surface free of any visible print lines. While it may be tempting to skip this step, the reality is that your final paint job will only be as good as the preparation that goes into it.
The process of 3D printing often leaves behind layer lines, small strings or blobs of filament, and other imperfections on the surface of your print. These imperfections can be challenging to paint over and can ruin the overall aesthetic of your finished product. By sanding your 3D print before painting, you can effectively remove these layer lines and create a smooth base for your paint to adhere to.
The sanding process for 3D prints typically involves using sandpaper of varying grit sizes to gradually smooth out the surface. Starting with a lower grit, such as 100-200, you can begin to remove any significant bumps or marks left by the printing process. As you progress, you can switch to finer grits, such as 400-600, to achieve an even smoother finish. It is important to be patient during this process and not to rush, as it can be time-consuming but will yield better results.
Additionally, primer plays a crucial role in filling in any remaining layer lines and creating an even smoother base for your paint. After sanding, be sure to clean your 3D print thoroughly to remove any dust or residue before applying a primer coat. The primer will help fill in any remaining imperfections and create a uniform surface for your paint to adhere to.
While it may be tempting to skip the sanding step, keep in mind that the final result may not meet your expectations. Visible layer lines and imperfections can detract from the overall quality of your paint job. By investing time and effort into sanding and priming your 3D print, you can achieve a professional-looking finish that showcases the true potential of your 3D-printed creation.
Copying Sections in Paint Tool Sai: A Quick Guide
You may want to see also
Explore related products
Primer is important to fill in gaps
Painting 3D prints without sanding them first is not recommended, as the paint will likely bleed along the layer lines, and you will be able to see the print lines. If you are looking to achieve a smooth surface, sanding is a necessary step. However, if you are happy for your 3D print to have visible layer lines, you can skip sanding and proceed directly to painting.
Before painting your 3D-printed parts, they may require some finishing. This means smoothing the surface and ensuring that there are no rough features that may prevent paint adhesion. Such features include residue left by support material and strings or blobs of filament caused by low-angle overhangs or material inconsistencies.
When applying primer, it is important to follow the instructions on the product you are using, as different brands may have varying suggestions for technique, coats, and distance. Make sure to cover all the areas you want to paint with primer, which may require letting the first coat dry before turning the part over to spray the back or underside.
In some cases, you may need to apply multiple coats of primer to achieve the desired smoothness. If you are using a urethane filler primer, it is important to sand between coats, as this will help the material to reflow and close up, creating a smoother surface. Additionally, switching between different colours of compatible primers can help you identify uneven contours in the finish.
Overall, primer plays a crucial role in filling in gaps and creating a smooth base for painting your 3D prints. By using a filler primer and following the recommended application techniques, you can achieve the best results for your painting project.
Drag and Drop: MS Paint's Image Move
You may want to see also
Explore related products
Paint type and application vary
The type of paint and application method used on 3D prints can vary depending on the material of the print and the desired finish. Some common paint types used for 3D prints include acrylics, enamels, sprays, and airbrush paints. It is recommended to use paints specifically designed for plastics, as they tend to work best on 3D printed parts. Brands like Rust-Oleum and Krylon offer a wide variety of colours and application types suitable for 3D printed plastics.
When painting 3D prints, it is important to ensure that the surface is clean, dry, and free from any oils, dust, or residue. A primer coat is usually necessary to help the paint adhere better and create a smoother finish. It is important to follow the manufacturer's instructions for the primer and paint, including the suggested technique, number of coats, and drying time.
The application method can vary depending on the complexity and geometry of the 3D print. For intricate designs, hanging the print or placing it on a stand can facilitate better access for painting. Spray booths are often equipped with these features. If working in a limited space, simply placing the print on newspaper can help protect the surrounding area from paint.
For specific patterns or sections, painter's tape can be used to mask off the areas that do not need to be painted. After applying the primer, it is important to ensure that the coat is dry before turning the part over to spray the back or underside. Following the primer, light coats of paint are recommended for 3D printed parts with internal and obscured geometries.
Additionally, it is crucial to work in a well-ventilated and well-lit area when painting 3D prints. Protective gear, such as gloves and a mask, should also be worn to ensure safety during the painting process.
Transforming Blackboard Paint: Easy Painting Hacks
You may want to see also
Explore related products
Varnish is a protective layer
Sanding a 3D print before painting is highly recommended, as it smooths out the surface and removes any bumps, scratches, ridges, or layer lines that may affect the quality of the paint job. However, it is not always necessary, and some people choose to skip this step, especially when creating terrain pieces for wargames. If you do decide to sand your 3D print, it is important to be careful not to over-sand, as this can erode the wall, ceiling, or floor layers. After sanding, it is crucial to remove any dust residue by cleaning the object with a wet scrub brush and, once dry, using tack cloth to get any remaining specks.
Once the 3D print is sanded and cleaned, the next step is to apply a primer. Primer helps the paint adhere better and cover imperfections. It is essential to choose a primer that is compatible with the 3D printing material and the type of paint you will be using. Different brands of primer have different suggestions for technique, coats, and distance, so it is important to read the instructions carefully. After priming, you can move on to painting your 3D print, following similar steps to painting most other plastics.
Varnish acts as a protective layer for 3D prints, shielding them from external factors such as humidity, scratches, stains, and UV rays. It also gives the object a shiny appearance and makes it more resistant to fading, smudging, and abrasion. Varnish can be applied as a UV clear coat, which preserves and enhances the original colour and texture of the 3D print. This finish can make the object more durable, but it may also cause it to appear plain and boring. Another option is a gloss UV varnish, which gives the object a glossy and varnished look with a smooth and hard surface.
While varnish provides excellent protection and aesthetic enhancements, it is not always necessary. Some people choose to apply varnish only when the 3D print is handled frequently, as it offers protection from dust and chips. Additionally, a high-end clear coat might extend the lightfastness of the pigments, delaying the fading process. However, it is crucial to choose the right type of varnish, as some varnishes can negatively affect the paint job, as mentioned in a Reddit post where a user's miniature was destroyed after applying a matt varnish.
Prevent Streaking: Tips for a Perfect Painted Glass Finish
You may want to see also
Explore related products
Safety precautions are important
Additionally, prepare the 3D-printed object by cleaning it with water and a wet scrub brush to remove any glue, residue, or inconsistencies. Let it dry, then use sandpaper or a sanding sponge to smooth the surface, taking care not to over-sand, as this can erode the structure. After sanding, clean the object again with water and wipe away any remaining dust with a cloth or tack cloth.
Primer is typically applied after sanding. Choose a primer that is suitable for plastics, and ensure the work area is still well-ventilated. Use gloves and a mask for protection during this step as well. Apply the primer coat evenly with a brush, avoiding repeated brush strokes over partially dry areas to prevent unevenness. Allow the primer to dry completely before proceeding with further sanding or painting.
Finally, during and after the painting process, maintain a clean workbench and tools to avoid paint contamination, extend the lifespan of your tools, and reduce potential chemical hazards. Rinse paintbrushes in a bowl of water if they are unused for more than 30 seconds, and blot them on a paper towel or clean cloth afterward.
Customizing 3D Art: Adding Textures with 3D Paint
You may want to see also
Frequently asked questions
Yes, it is advisable to sand a 3D print before painting it. Sanding helps to smooth out the surface and remove any bumps, marks, or layer lines, creating a more even base for the paint to adhere to. However, it is not mandatory, and some people choose to skip this step depending on the desired outcome.
You can use sandpaper, sanding sponges, or hand files for sanding 3D prints. Start with a lower grit sandpaper (around 100-200) to remove any large marks or support material, then move to a finer grit (400-600) to achieve a smoother surface. You can also use a powered detail sander or an orbital sander for faster results. Wet sanding is recommended to reduce dust and improve the finishing.
Sanding before painting a 3D print helps create a smoother surface, filling in layer lines and gaps. It improves paint adhesion and helps achieve a more professional and even finish. Without sanding, layer lines may be visible, and the paint may bleed along these lines. However, the decision to sand depends on the desired outcome and the complexity of the 3D print design.
