Priya Kapoor

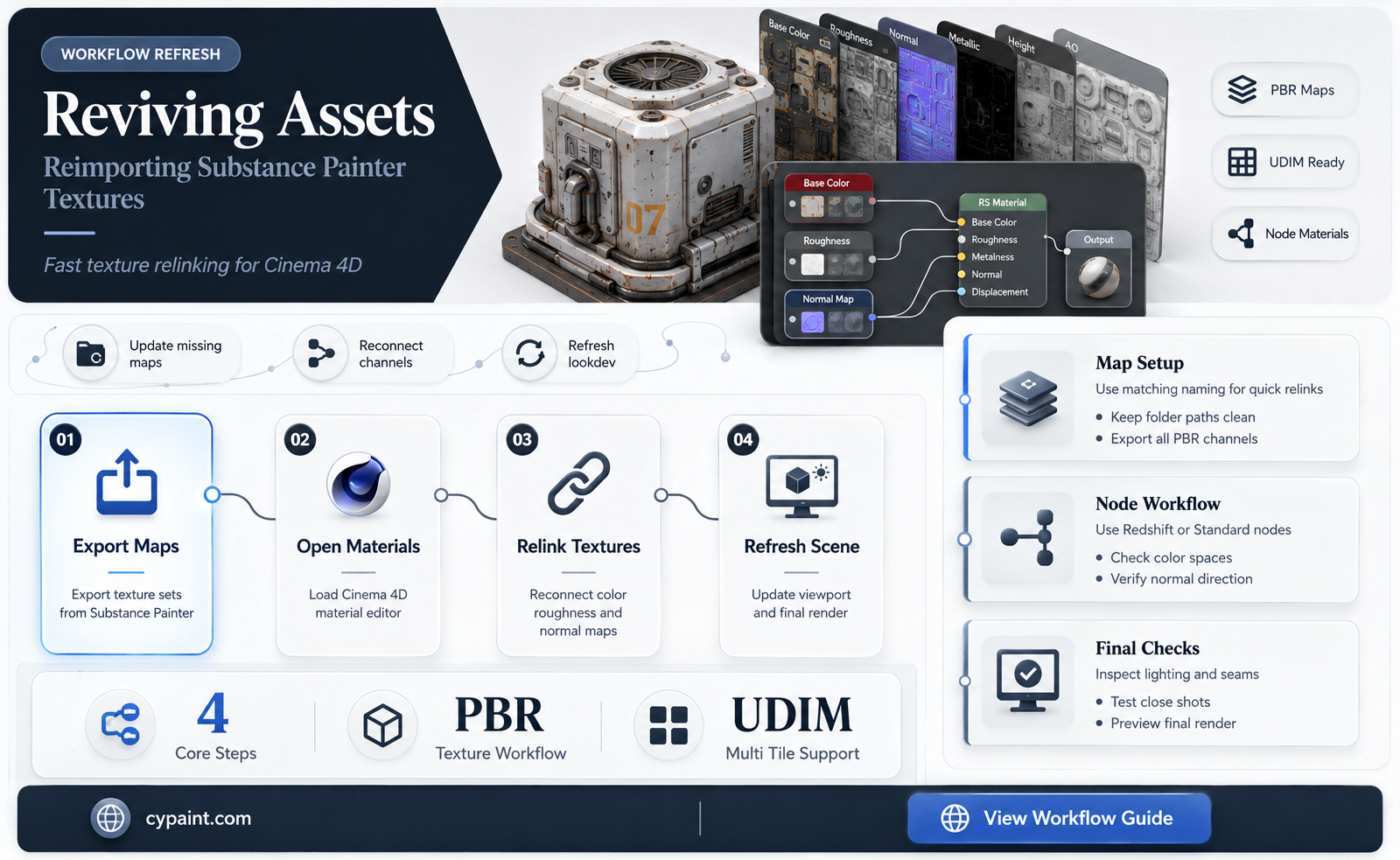

Bringing assets back into Cinema 4D (C4D) from Substance Painter is a common workflow for artists looking to integrate high-quality textures and materials into their 3D scenes. After texturing and painting assets in Substance Painter, the process involves exporting the textures and then reimporting them into C4D, where they can be applied to the original 3D models. This workflow ensures that the detailed textures, including base colors, normals, roughness, and other maps, are seamlessly integrated into the C4D environment, allowing for realistic rendering and further adjustments. Proper setup in both software tools, such as using UDIMs or texture sets, is crucial to ensure compatibility and maintain the integrity of the asset’s appearance across platforms.
| Characteristics | Values |
|---|---|
| Compatibility | Yes, assets can be brought back into Cinema 4D (C4D) from Substance Painter. |
| Workflow | Export textures from Substance Painter and reimport them into C4D. |
| File Formats | Supported formats include PNG, JPEG, TIFF, and EXR for textures. |
| Texture Types | Base color, normal maps, roughness, metallic, height maps, and more. |
| Material Setup | Requires manual assignment of textures to corresponding channels in C4D. |
| Plugin Support | No direct plugin for seamless integration, but workflows are established. |
| Real-Time Updates | Not supported; changes in Substance Painter require re-exporting textures. |
| Software Versions | Compatible with recent versions of both C4D and Substance Painter. |
| Complexity | Moderate; requires understanding of texture mapping and material setup. |
| Use Cases | Ideal for PBR workflows, game assets, and high-quality rendering. |
| Limitations | No automatic synchronization; manual adjustments may be needed. |
Explore related products
What You'll Learn
Exporting Textures from Substance Painter
Substance Painter serves as a powerhouse for creating intricate textures, but its true value lies in how seamlessly those textures integrate with other 3D software. Exporting textures correctly is the bridge between your masterpiece in Substance Painter and its final presentation in Cinema 4D.
Precision in Export Settings: Begin by selecting the appropriate export preset in Substance Painter’s export dialog. For Cinema 4D, the "Unreal Engine 4" or "Unity 5" presets often work well, but customization is key. Ensure you export at least the base color, normal, roughness, and metallic maps. Adjust the resolution to match your project’s needs—higher resolutions for close-ups, lower for distant objects. Pro tip: Use 2K or 4K textures for detailed models, but always consider the performance impact on your final render.
File Format Matters: Cinema 4D supports a variety of texture formats, but PNG and TGA are the most reliable for lossless quality. JPEG can reduce file size but introduces compression artifacts, which may degrade texture fidelity. For normal maps, stick to 16-bit formats to preserve detail. Exporting in linear color space is crucial, as Cinema 4D expects this format for accurate rendering.
Organizing Exports: Substance Painter allows you to export textures individually or as a batch. For Cinema 4D, organize your exports into folders labeled by texture type (e.g., "Albedo," "Normal," "Roughness"). This streamlines the import process and reduces the risk of misplacing files. Name your textures consistently, using the model’s name as a prefix (e.g., "Chair_BaseColor.png").
Handling UDIMs and Tiles: If your project uses UDIM tiles (common for high-poly models), Substance Painter will export each tile separately. In Cinema 4D, use the "Multi-Tile UV" option in the material settings to reassemble these tiles correctly. Ensure the UDIM naming convention matches Cinema 4D’s expectations (e.g., "1001," "1002").
Post-Export Checks: Before importing into Cinema 4D, verify your textures in an image viewer to ensure they match your Substance Painter preview. Pay attention to normal maps—inverted greens or incorrect scaling can occur during export. If using baked maps, confirm that ambient occlusion or curvature maps align with your model’s geometry.
By mastering these export techniques, you ensure that your textures retain their quality and functionality when brought back into Cinema 4D. The devil is in the details, and a well-executed export is the first step toward a flawless final render.
Revive Your Walls: Painting Over Peeling Wallpaper Like a Pro
You may want to see also
Explore related products
Importing Maps into Cinema 4D
Substance Painter excels at creating intricate textures, but your work doesn't have to stay confined to its interface. Cinema 4D, a powerhouse for 3D modeling and animation, readily accepts Substance Painter's output, allowing you to seamlessly integrate your meticulously crafted materials into your scenes.
Key to this bridge between applications are texture maps – image files that encode specific surface properties like color, roughness, and normal information.
Understanding Map Types and Their Roles
Think of texture maps as instructions for Cinema 4D on how to render your 3D object. A base color map dictates the fundamental color of your surface. A normal map adds depth and detail by simulating bumps and ridges without altering the underlying geometry. Roughness maps control how light interacts with the surface, determining whether it appears smooth and reflective or rough and matte. Other common maps include metallic, specular, and height maps, each contributing to the material's realism.
Understanding the purpose of each map type is crucial for achieving the desired visual outcome in Cinema 4D.
The Import Process: A Step-by-Step Guide
- Export from Substance Painter: Within Substance Painter, export your textures as high-quality image files (PNG or TIFF are recommended for their lossless compression). Ensure you export all the relevant maps needed for your material.
- Create a Material in Cinema 4D: In Cinema 4D, create a new material and assign it to your 3D object.
- Assign Maps to Channels: Cinema 4D's material editor provides dedicated channels for each map type. Drag and drop your exported texture maps into the corresponding channels: Color for base color, Normal for normal map, Roughness for roughness map, and so on.
- Fine-Tune and Adjust: Once your maps are assigned, adjust the material's settings to achieve the desired look. This may involve tweaking brightness, contrast, or other parameters to ensure the textures integrate seamlessly with your lighting and environment.
Optimizing for Performance
While high-resolution maps offer stunning detail, they can also impact rendering performance. Consider these optimization techniques:
- Texture Size: Use the highest resolution necessary for the desired level of detail. Downscaling textures for less prominent areas can significantly improve performance.
- Mipmapping: Enable mipmapping in Cinema 4D's texture settings. This technique creates lower-resolution versions of your textures for distant objects, reducing memory usage and rendering time.
- Compression: Experiment with lossless compression formats like PNG to reduce file size without sacrificing quality.
By mastering the art of importing maps from Substance Painter into Cinema 4D, you unlock a world of creative possibilities. This workflow empowers you to create stunningly realistic 3D assets, bringing your digital creations to life with unparalleled detail and visual fidelity.
Brother Bear's Spirit Art: The Meaning Behind the Sault Painting
You may want to see also
Explore related products
Setting Up Materials in C4D
Substance Painter and Cinema 4D (C4D) are powerful tools in the 3D artist's arsenal, and bridging the gap between them can significantly enhance your workflow. When bringing assets back into C4D from Substance Painter, setting up materials correctly is crucial for maintaining the integrity of your textures and achieving the desired visual outcome. Here’s how to approach this process effectively.
Understanding the Export Process
Before diving into material setup, ensure your Substance Painter export settings are optimized for C4D. Export your textures in a format compatible with C4D’s material system, such as PNG or TIFF for high-quality results. Include all necessary maps—albedo, normal, roughness, metallic, and AO—as these will form the foundation of your material in C4D. Organize your exported files into a clear folder structure to avoid confusion during import.
Creating a Material in C4D
In C4D, start by creating a new material and assigning it to your imported mesh. Use the Standard or Physical material type, depending on your rendering engine. For the Color channel, load the albedo map. This map defines the base color of your material. Next, connect the normal map to the Normal input to add surface detail without increasing polygon count. Ensure the normal map is set to the correct space (OpenGL or Direct3D) to avoid visual artifacts.
Integrating PBR Textures
Physical-Based Rendering (PBR) workflows rely on roughness and metallic maps to define surface properties. Assign the roughness map to the Roughness channel and the metallic map to the Metallic channel. Adjust the intensity of these maps if necessary to match the desired material appearance. If your asset includes an AO map, use it in the Diffuse or Luminance channel to add subtle depth and shading.
Fine-Tuning and Testing
Once all textures are assigned, test your material in different lighting conditions to ensure it behaves as expected. Use C4D’s Physical Renderer or Redshift for accurate PBR results. Pay attention to how light interacts with the surface—adjust roughness and metallic values to achieve realism. For complex materials, consider layering multiple materials or using blending modes to create unique effects.
Cautions and Best Practices
Avoid overloading your material with unnecessary maps, as this can increase render times. Always check the texture resolution and ensure it matches the scale of your model. If using normal maps, be mindful of their intensity—overly strong normals can distort the surface. Finally, save your material as a preset for future use, streamlining your workflow for similar projects.
By following these steps, you can seamlessly bring assets from Substance Painter into C4D, ensuring your materials are set up correctly and ready for rendering. This process not only preserves the quality of your textures but also enhances the overall visual fidelity of your 3D projects.
Mastering Palm Frond Preparation: A Step-by-Step Guide for Painting
You may want to see also
Aligning UVs for Texture Accuracy
UV alignment is the linchpin of texture accuracy when transitioning assets between Substance Painter and Cinema 4D. Misaligned UVs distort textures, creating seams, stretching, or tiling artifacts that undermine realism. Proper UV layout ensures textures map cleanly onto 3D surfaces, preserving detail and coherence across models. Without precise alignment, even the most meticulously painted textures will fail to translate accurately between applications.
To align UVs effectively, begin by ensuring your UV islands are laid out logically in UV editing software like Cinema 4D’s UV editor or a dedicated tool like RizomUV. Aim for minimal distortion and consistent scale across the model. Overlapping or inverted UV shells will cause texture bleeding, so check for proper shell separation. For hard-surface models, align edges along UV seams to prevent texture discontinuities. Organic models require a balance between minimizing distortion and maintaining texture flow along natural contours.
Once UVs are unwrapped, export the model to Substance Painter for texturing. After painting, reimport the textured asset into Cinema 4D. If misalignment occurs, revisit the UV layout. Use Cinema 4D’s "Align UVs" tool to adjust specific islands or seams. For complex models, consider using a checkerboard texture to visually identify UV stretching or compression. Fine-tune UV positions and scales iteratively until the texture aligns perfectly with the geometry.
A critical caution: avoid over-reliance on automatic UV unwrapping tools. While convenient, they often produce suboptimal layouts that compromise texture accuracy. Manual adjustments are essential for professional results. Additionally, maintain consistent UV tiling across materials to ensure textures repeat seamlessly when necessary. Ignoring this step can lead to visible repetition artifacts, particularly on large surfaces.
In conclusion, aligning UVs is a meticulous but indispensable step in achieving texture accuracy when moving assets between Substance Painter and Cinema 4D. By prioritizing logical UV layouts, minimizing distortion, and iteratively refining alignment, artists can ensure textures translate flawlessly across applications. Mastery of this process elevates the fidelity of 3D assets, bridging the gap between texturing and rendering seamlessly.
Mastering Tree Painting: Simple Steps for Beginner Artists to Succeed
You may want to see also
Using Normal Maps for Detail Enhancement
Normal maps are a cornerstone of modern 3D texturing, offering a lightweight solution to add intricate surface details without increasing polygon count. When bringing assets back into Cinema 4D from Substance Painter, normal maps play a pivotal role in preserving the high-fidelity details crafted in the texturing process. These maps encode surface information in a way that mimics high-resolution geometry, allowing for realistic lighting and depth in your renders. Understanding how to effectively use normal maps ensures that the hard work put into Substance Painter translates seamlessly into your final C4D scenes.
To integrate normal maps from Substance Painter into Cinema 4D, follow these steps: export the normal map from Substance Painter in a compatible format (such as PNG or TGA), ensuring it aligns with the UV layout of your model. In C4D, assign the normal map to the appropriate material channel, typically under the "Normal" or "Bump" section of the material properties. Adjust the strength of the normal map to match the desired level of detail—a value between 0.5 and 1.0 often provides a natural look, though this can vary based on the asset's scale and intended style. Proper UV mapping is critical here; any distortions in the UVs will result in visible artifacts in the normal map application.
One common challenge when using normal maps is balancing detail with performance. High-resolution normal maps can add significant depth but may also increase render times. To mitigate this, consider using mipmapping or adjusting the texture resolution in C4D’s material settings. Additionally, baking normal maps at a lower resolution for less critical assets can help maintain performance without sacrificing overall quality. Always test your renders at different stages to ensure the normal maps are enhancing, not overwhelming, the scene.
A practical tip for maximizing normal map effectiveness is to combine them with other maps, such as height or displacement maps, for even greater realism. For example, using a height map for close-up shots while relying on normal maps for mid to long-range views can provide a balance between detail and efficiency. This layered approach ensures that your assets look convincing from any distance, making it particularly useful for animations or interactive projects where camera angles vary.
In conclusion, normal maps are an indispensable tool for detail enhancement when transitioning assets from Substance Painter to Cinema 4D. By understanding their technical nuances and applying them thoughtfully, you can achieve professional-grade results that elevate your 3D projects. Whether you’re working on character models, environments, or product visualizations, mastering normal maps ensures that every texture detail is rendered with precision and impact.
Fix Peeling S7 Home Button Paint: Quick DIY Repair Guide
You may want to see also
Frequently asked questions
Yes, you can bring assets back into C4D from Substance Painter by exporting the textures and materials created in Substance Painter and then reapplying them to your model in C4D.
Export textures in common formats like PNG or TGA, and use the Substance Painter export presets for game engines or custom settings. For materials, you can use the C4D Material format or import textures manually in C4D.
Import the model into C4D, create a new material, and assign the exported textures (base color, normal, roughness, etc.) to the corresponding channels in the C4D material editor. Adjust settings as needed for accurate results.
