Painting your PVC flue pipe is possible, but there are some important considerations to keep in mind. Firstly, it's crucial to follow the manufacturer's instructions for your specific furnace model. Some manufacturers may recommend using PVC pipes for combustion flues, while others do not due to potential safety hazards. Additionally, the type of PVC pipe used is significant. For instance, solid core Schedule 40 PVC is recommended over foam core PVC, which may not withstand high temperatures. It's also important to ensure that the exhaust is not located below the intake to prevent exhaust gas from being sucked back into the furnace, which can be dangerous. Finally, painting exposed PVC pipes that will be in direct sunlight is generally recommended to prevent UV degradation.
| Characteristics | Values |
|---|---|
| Paintability | Yes, but it's unclear how well paint adheres to PVC |
| Venting | Used to vent exhaust gases from high-efficiency furnaces |
| Installation | Manufacturers are specific about installation methods |
| Vent Termination | Should be higher than the intake to prevent exhaust gas from re-entering the furnace |
| Vent Direction | Should not pitch downward to avoid ice buildup in winter |
| Pipe Type | Schedule 40 PVC is commonly used, but other types like CPVC and DWV may also be suitable |
| Pipe Colour | White, but can be painted grey if exposed to sunlight |
| Safety Concerns | PVC pipes can deform, sag, melt, or collapse at high temperatures, leading to potential fire or carbon monoxide hazards |
Explore related products
What You'll Learn
- Painting PVC flues is possible, but paint may not stick well
- High-efficiency furnaces use PVC pipes to vent exhaust gases
- Manufacturers provide specific installation instructions for PVC flues
- PVC flues can deform and sag due to heat, leading to safety issues
- Alternative materials, like stainless steel, are recommended for safety
Painting PVC flues is possible, but paint may not stick well
One crucial factor to consider is the type of PVC pipe. Some sources mention that solid-core Schedule 40 PVC is recommended for furnace venting, while other types, such as cellular core PVC or foam core PVC, are not suitable for this application. It is important to carefully read the installation instructions and specifications for the specific type of PVC pipe being used.

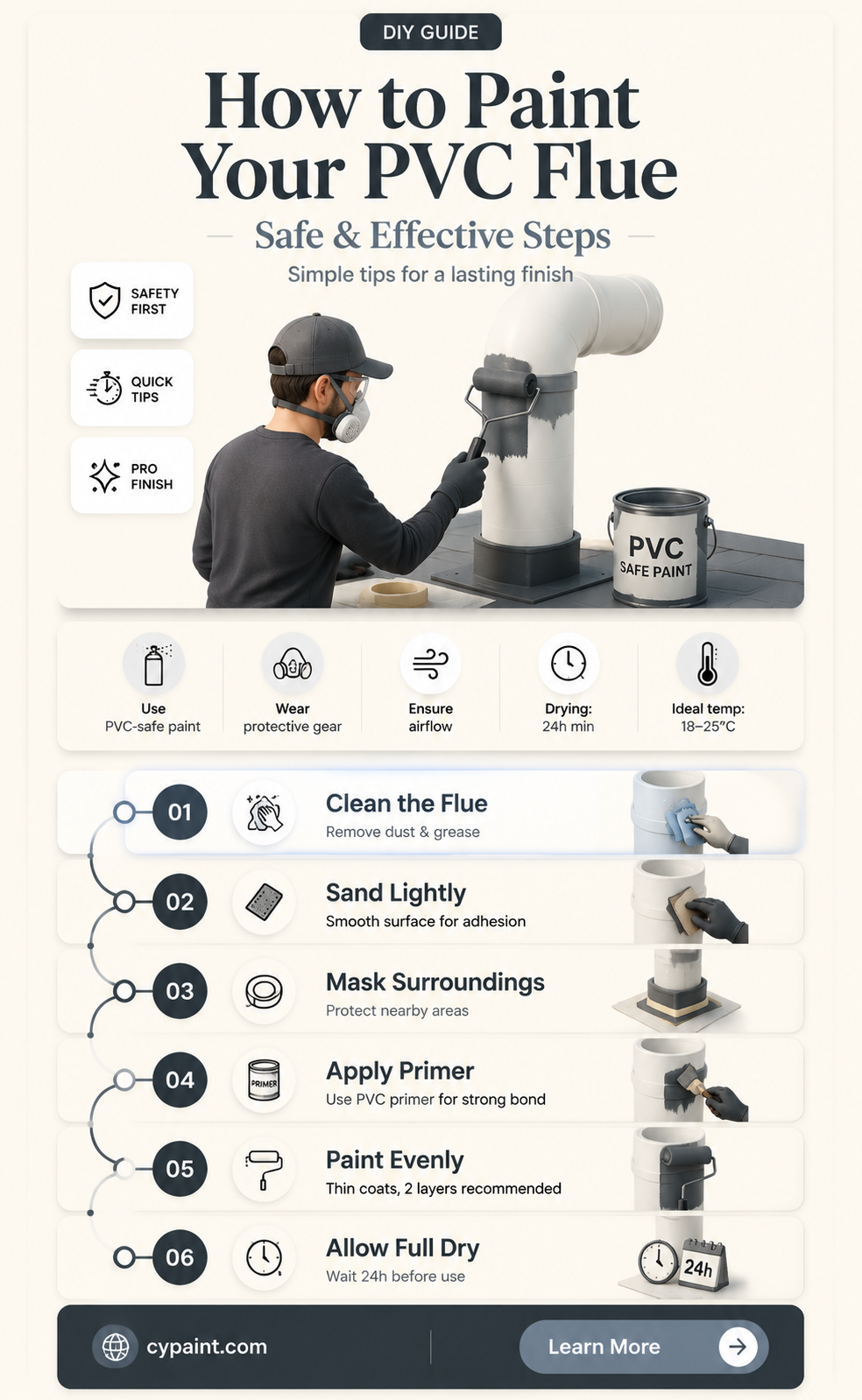

When it comes to painting PVC flues, it is important to prepare the surface properly to ensure better paint adhesion. The surface should be clean and free of any dirt, grease, or debris. It may also be beneficial to lightly sand the PVC surface to create a rougher texture, which can help the paint adhere better. Additionally, using a primer specifically designed for PVC, such as a PVC primer that meets ASTM F656 specifications, can greatly improve paint adhesion.
While painting PVC flues is possible, it is important to manage expectations regarding the durability of the paint finish. Even with proper surface preparation and the use of suitable primers, the paint may not adhere as strongly as it would to other surfaces. The paint may eventually chip, peel, or flake, especially if the PVC pipe is exposed to harsh weather conditions or temperature fluctuations. Regular maintenance and touch-ups may be necessary to maintain the desired appearance and protect the underlying PVC material.
Additionally, it is worth noting that painting PVC flues exposed to sunlight is particularly important. Direct sunlight can cause the PVC material to degrade over time, and painting the surface can help provide some protection against UV rays. In this case, using a light-coloured or reflective paint can help reduce the absorption of sunlight and minimise the potential for heat-related issues.
Parking on Yellow Curbs: What You Need to Know
You may want to see also
Explore related products
High-efficiency furnaces use PVC pipes to vent exhaust gases
The installation of these PVC pipes is very specific and is usually outlined in the manufacturer's instructions. For example, the exhaust pipe should terminate higher than the intake pipe to prevent exhaust gases from being sucked back into the furnace. Additionally, the pipes should not terminate too close to an openable window.
The size of the PVC pipes used for venting high-efficiency furnaces is important. The size depends on factors such as the altitude, furnace size, length of pipe, number of elbows used, and type of elbows used. As a general guideline, if the furnace is 80k BTUs or smaller, 2" pipes are typically sufficient, while 3" vent pipes are recommended for furnaces of 100k BTUs or larger.
It is worth noting that some people find the appearance of PVC pipes for venting unusual or unappealing, and there are questions about how well paint adheres to PVC. However, some contractors do paint these pipes, and it is generally safe to do so.
Citing a Painting: Chicago Style Guide
You may want to see also
Explore related products
Manufacturers provide specific installation instructions for PVC flues
Manufacturers provide detailed and specific installation instructions for PVC flues, which must be followed for safety and efficiency. These instructions are outlined in installation manuals, diagrams, and technical specifications.
For instance, the International Code Council's International Fuel Gas Code 503.4.1.1 states that "plastic pipe and fittings used to vent appliances shall be installed in accordance with the appliance manufacturer's installation instructions." This code highlights the importance of adhering to the manufacturer's guidelines for PVC flue installation.
The installation instructions provided by manufacturers cover various aspects, such as the positioning of the exhaust and intake pipes to prevent exhaust gases from being sucked back into the furnace. Manufacturers may recommend making the exhaust terminate higher than the intake by a certain distance, typically at least one foot. This ensures that the warm exhaust gas rises and does not re-enter the intake.
Additionally, manufacturers may suggest the use of a reducer at the terminal to increase the velocity of the exhaust gases, further reducing the likelihood of them re-entering the intake. Another method mentioned by manufacturers is the use of a concentric vent terminal, which provides a cleaner installation with only one pipe exiting the wall.
Manufacturers also provide guidelines for single-pipe and two-pipe systems, also known as direct vents. These guidelines include specific clearances that must be maintained around windows and doors. For example, vents should be pitched to allow condensate to drain back into the furnace, and there should be no flat sections, dips, or sags in the venting.
It is important to consult the manufacturer's installation instructions for PVC flues to ensure compliance with safety standards and to avoid potential issues such as high flue gas temperatures or inadequate venting. These instructions are designed to ensure the safe and efficient operation of the furnace or water heating system.
How to Store Unused Paint for Future Use
You may want to see also
Explore related products
PVC flues can deform and sag due to heat, leading to safety issues
While PVC pipes are commonly used to vent exhaust gases from furnaces, they are susceptible to deformation and sagging due to heat. This can create significant safety issues.
PVC pipes are made from polyvinyl chloride, a type of plastic. When exposed to high temperatures, PVC can soften and sag, leading to blockages or disconnections in the flue. This not only impedes the venting of exhaust gases but also increases the risk of carbon monoxide asphyxiation and fires.
In one incident, a maintenance worker observed deformed and sagging PVC flue pipes on a water heater. The pipes had cracked and melted, releasing carbon monoxide into the building and endangering the occupants. Similarly, a family of four in Aspen, Colorado, succumbed to carbon monoxide poisoning due to the failure of PVC flue pipes, highlighting the deadly consequences of PVC pipe deformation.
To prevent such incidents, it is crucial to ensure that PVC flues are installed correctly and maintained regularly. Manufacturers typically provide guidelines for proper installation, and adhering to these instructions is essential for safety. Additionally, regular maintenance can help identify any signs of deformation or sagging before they become safety hazards.
While painting a PVC flue may improve its appearance, it is important to prioritize safety first. If you suspect any issues with your PVC flue, such as deformation or sagging, it is crucial to contact a qualified professional to inspect and address the problem promptly to ensure the safety of your home and family.
Renaissance Master: Da Vinci's Iconic Works
You may want to see also
Explore related products
Alternative materials, like stainless steel, are recommended for safety
While PVC flues are sometimes recommended by boiler, furnace, and water heater manufacturers, PVC pipe manufacturers do not endorse their product for venting combustion gases. This is because PVC has temperature limitations, and flue gases can often exceed these temperatures, causing the PVC to melt, sag, or even collapse. In fact, there is no standard in the US for a plastic flue vent for combustion flue gas piping.
Given these safety concerns, alternative materials, like stainless steel, are recommended for safety. Stainless steel flues can withstand temperatures of 1,000–1,400 °F, far exceeding the temperature of flue gases. This makes them a much safer option than PVC, which can pose a risk of carbon monoxide poisoning or fire if it melts or becomes blocked.
While stainless steel flues may be more expensive upfront, they are a safer and more durable option in the long run. They are also corrosion-resistant, so they will last longer and require less maintenance than PVC flues.
If you are considering alternatives to PVC for your furnace flue, it is important to consult with a professional to ensure that you are choosing a safe and suitable material for your specific application.
Removing Dried Paint from Pavers: Effective Solutions
You may want to see also
Frequently asked questions
Yes, you can paint the PVC flue on your furnace. However, if the PVC pipes will be exposed to sunlight, it is recommended to use gray PVC instead of painting white PVC.
It is recommended to use solid core Schedule 40 PVC for your furnace exhaust. Schedule 40 PVC is a standard specification for PVC pipes and is suitable for low-temperature exhaust applications.
PVC is used for high-efficiency furnace venting because it is a reliable material that prevents water from rusting the pipe and venting exhaust gas into the house.
CPVC was used for some early direct-vent appliances, but PVC is now typically used for high-efficiency furnace exhausts. If your furnace manufacturer recommends CPVC, then it is suitable for use.
Yes, there are some safety concerns associated with using PVC for furnace venting. PVC pipes can deform, sag, melt, or collapse due to high flue gas temperatures, especially in hard water areas. This can lead to carbon monoxide leaks and fire hazards. It is important to follow the manufacturer's recommendations and guidelines for proper use.
